FD166C, omnidrive, 2 hp, 1800 Rpm, 115/208-230v, frame 56HC, tefc,

OMNIDRIVE

$457.56

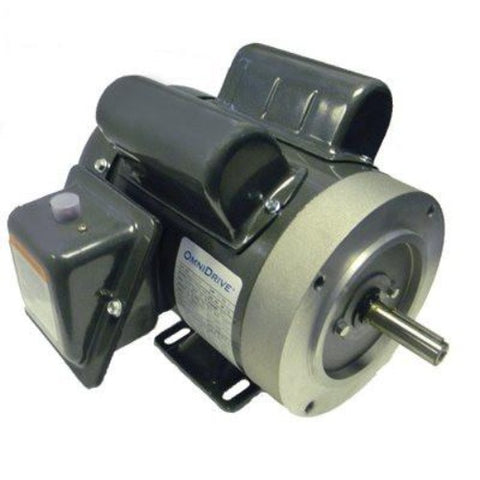

FD166C, OMNIDRIVE MOTOR

REPLACE , G575 MARATHON, 056B17F5306, FDL3516TM BALDOR, 110090.00 LEESON, DAYTON 1TMW1, FD2CM2PHZ US MOTORS

HP	2
VOLTAGE	115-208/230
AMPS	16.50/9.00
RPM	1725
FREQUENCY	60 HZ
LENGTH	14-7/32”
ENCLOSURE	TEFC
SHAFT DIAMETER	5/8''
TYPE	FARM DUTY CAPCACITOR START
SPEED	1
DIAMETER	6,5''
FRAME	56HC
BEARING SLEEVE	BEARING
ROTATION	REVERSIBLE
PROTECTOR	THERMALLY PROTECTED
PHASE	1
AMBIENT TEMP	40 C
S.F	1.15
FEATURE(S)	Rolled Steel Construction, Class ‘B’ Insulation, Continuous Duty, UL Listed & CSA Approved, Removable Rigid Base, FD166C
