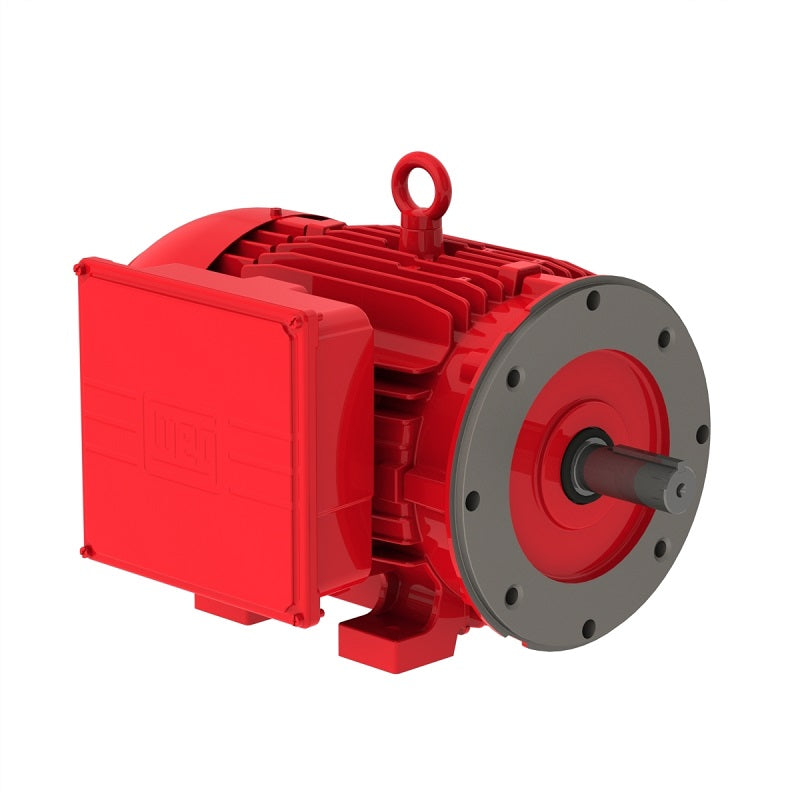

FD003104WC,Weg,3 Hp,1800 Rpm,115/230V,Fr:182/4TC,Tefc, Farm Duty,

FD003104WC,Weg,3 Hp,1800 Rpm,208-230V,Fr:182/4TC,Tefc, Farm Duty,

WEG

  • $733.00


FD003104WC,Weg, 11997998, Replace Baldor L1408TM, 36E02-2761,CL3519TM, 36M38W835, FD3CM2K18, FDU3CM2K18, Westinghouse FD0034,Leeson 131994.00,FDL3619TM,36Q165W835G1,

Electric Motors

Frame W182/4TC
Output 3 HP (2.2 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1740 rpm
Slip 3.33 %
Rated voltage 230 V
Rated current 14.5 A
L. R. Amperes 87.0 A
LRC 6.0x(Code H)
No load current 6.00 A
Rated torque 9.05 ft.lb
Locked rotor torque 260 %
Breakdown torque 220 %
Locked rotor time 10s (cold) 6s (hot)
Moment of inertia (J) 0.2373 sq.ft.lb
Insulation Class F
Service factor 1.15
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 54.0 dB(A)
Approx. weight³ 93.4 lb
