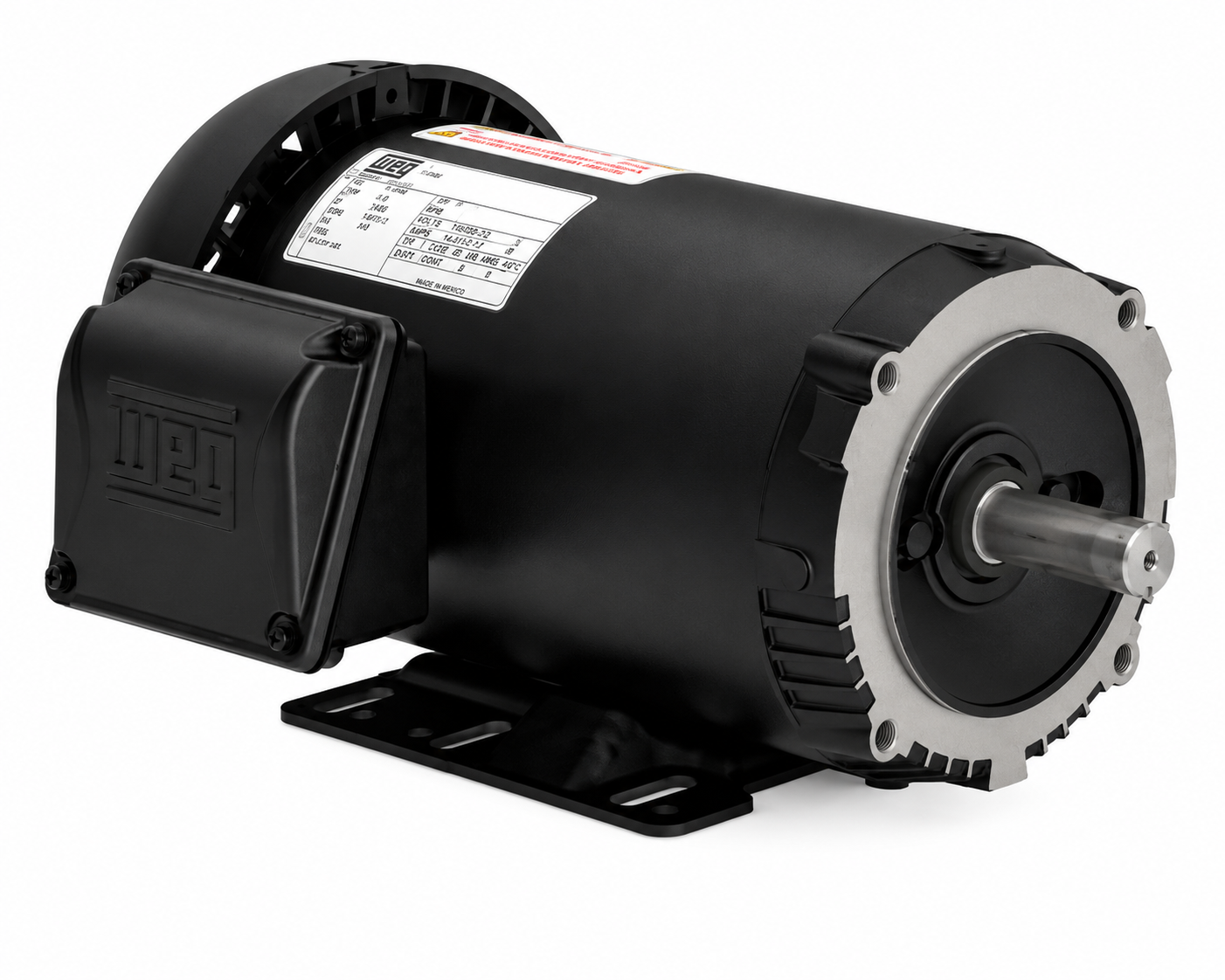

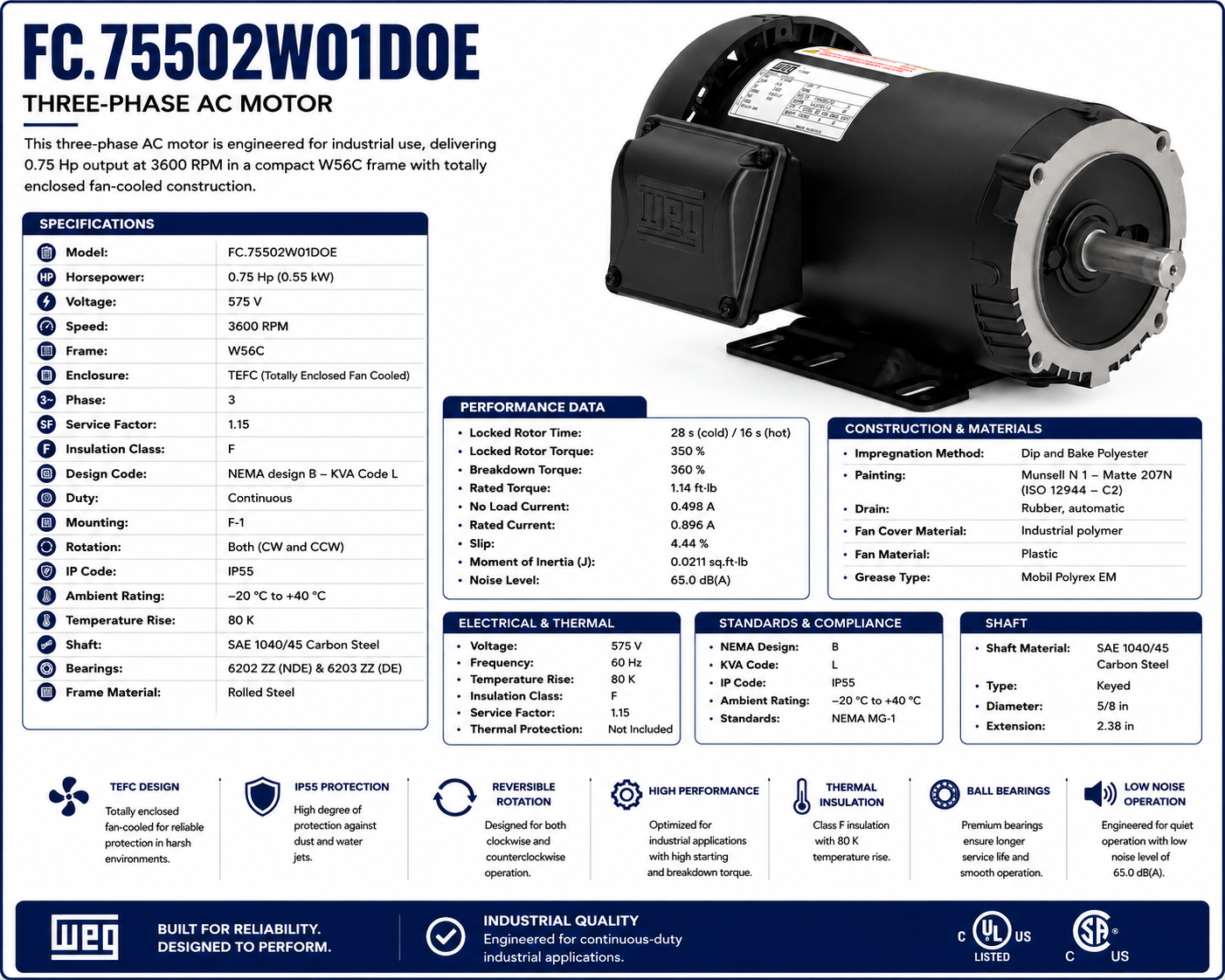

FC.75502W01DOE, 0.75 Hp, 3600 RPM, 575 V, 3 Ph, 60 Hz, TEFC, Frame W56C

This three-phase AC motor is engineered for industrial use, delivering 0.75 Hp output at 3600 RPM in a compact W56C frame with totally enclosed fan-cooled construction.

KEY FEATURES

• Model: FC.75502W01DOE

• Horsepower: 0.75 Hp (0.55 kW)

• Voltage: 575 V

• Speed: 3600 RPM

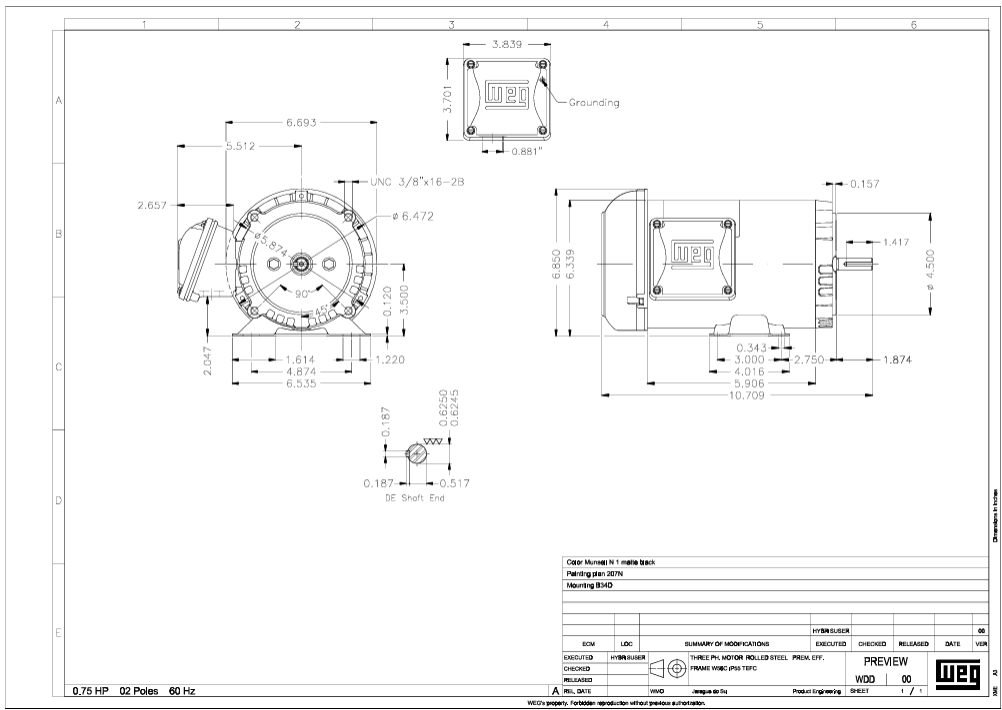

• Frame: W56C

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Phase: 3

• Service Factor: 1.15

• Insulation Class: F

• Design Code: NEMA design B – KVA Code L

• Duty: Continuous

• Mounting: F‑1

• Shaft: SAE 1040/45 Carbon Steel

• Bearings: 6202 ZZ (NDE) & 6203 ZZ (DE)

• Frame Material: Rolled Steel

• Rotation: Both (CW and CCW)

• IP Code: IP55

• Ambient Rating: –20 °C to +40 °C

• Temperature Rise: 80 K

• Locked Rotor Time: 28 s (cold) / 16 s (hot)

• Locked Rotor Torque: 350 %

• Breakdown Torque: 360 %

• Rated Torque: 1.14 ft·lb

• No Load Current: 0.498 A

• Rated Current: 0.896 A

• Slip: 4.44 %

• Service Factor: 1.15

• Moment of Inertia (J): 0.0211 sq.ft·lb

• Noise Level: 65.0 dB(A)

• Impregnation Method: Dip and Bake Polyester

• Painting: Munsell N 1 – Matte 207N (ISO 12944 – C2)

• Drain: Rubber, automatic

• Fan Cover Material: Industrial polymer

• Fan Material: Plastic

• Grease Type: Mobil Polyrex EM
