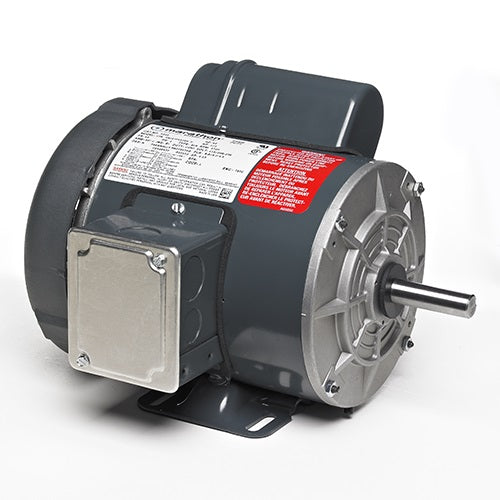

F101,1/3 HP, 1725 RPM,115/230V,FR:56,MARATHON,056C17F5324, ELECTRIC MOTORS

MARATHON

  • $507.20


Catalog Number: F101
Model Number: 056C17F5324
  • 60 Hertz
  • HP 1/3
  • Voltage 115/208-230
  • kW .25 FL
  • Amps 6.6/3.1-3.3
  • RPM 1800
  • FL Eff 55 % SF 1.15
  • Phase 1
  • Insulation Class B
  • Frame 56
  • Duty CONTINUOUS
  • Enclosure TEFC
  • Ambient 40
  • Mounting Rigid
  • NEMA Design L
  • Orientation HORIZONTAL
  • Starting Type CAP START IND RUN
  • Assembly F1 ONLY KVA
  • Code N
  • Drive End Bearing BALL IP Code 43
  • Opposite End
  • Bearing BALL
  • Drive End
  • Bearing Size 6203
  • Rotation SELECTIVE CCW
  • Opposite End
  • Bearing Size 6203
  • Weight 24 LB lbs
  • CE N/A
  • CSA Y
    UL Recognized
  • Construction and Protector
    Thermal Protection Manual Protector

    056C17F5324,
