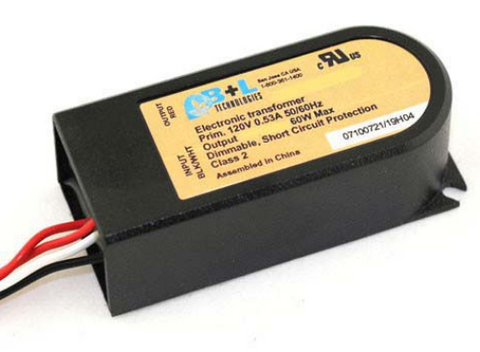

EX95121, 60W 120V Input - 24VDC 2.5A Output Class 2 - Dimmable Constant Voltage LED Driver

E-Motor Nations

$89.95

EX95121, 60W 120V Input - 24VDC 2.5A Output Class 2 - Dimmable Constant Voltage LED Driver

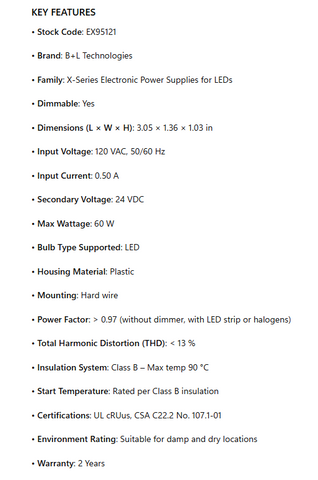

KEY FEATURES

• Stock Code: EX95121

• Brand: B+L Technologies

• Family: X-Series Electronic Power Supplies for LEDs

• Dimmable: Yes

• Dimensions (L × W × H): 3.05 × 1.36 × 1.03 in

• Input Voltage: 120 VAC, 50/60 Hz

• Input Current: 0.50 A

• Secondary Voltage: 24 VDC

• Max Wattage: 60 W

• Bulb Type Supported: LED

• Housing Material: Plastic

• Mounting: Hard wire

• Power Factor: > 0.97 (without dimmer, with LED strip or halogens)

• Total Harmonic Distortion (THD): < 13 %

• Insulation System: Class B – Max temp 90 °C

• Start Temperature: Rated per Class B insulation

• Certifications: UL cRUus, CSA C22.2 No. 107.1-01

• Environment Rating: Suitable for damp and dry locations

• Warranty: 2 Years
