EU08, Commercial Pump Motors, 1Hp, 1725 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Frame 56J, T063CNK2373013J

EU08, Commercial Pump Motors, 1Hp, 1725 RPM, 115/208-230V, 1PH, 60Hz, TEFC, Frame 56J, T063CNK2373013J

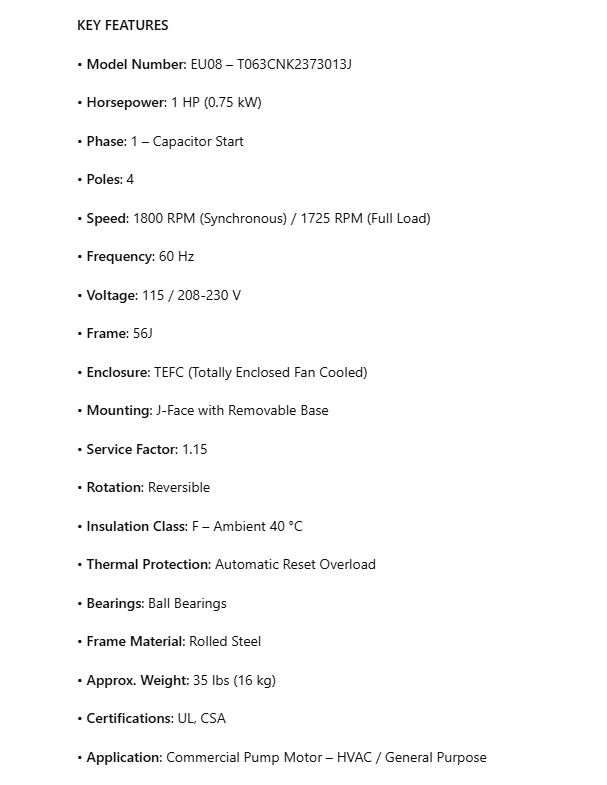

KEY FEATURES

• Model Number: EU08 – T063CNK2373013J

• Horsepower: 1 HP (0.75 kW)

• Phase: 1 – Capacitor Start

• Poles: 4

• Speed: 1800 RPM (Synchronous) / 1725 RPM (Full Load)

• Frequency: 60 Hz

• Voltage: 115 / 208-230 V

• Frame: 56J

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Mounting: J-Face with Removable Base

• Service Factor: 1.15

• Rotation: Reversible

• Insulation Class: F – Ambient 40 °C

• Thermal Protection: Automatic Reset Overload

• Bearings: Ball Bearings

• Frame Material: Rolled Steel

• Approx. Weight: 35 lbs (16 kg)

• Certifications: UL, CSA

• Application: Commercial Pump Motor – HVAC / General Purpose
