LENZE  |  SKU: EMN-018544

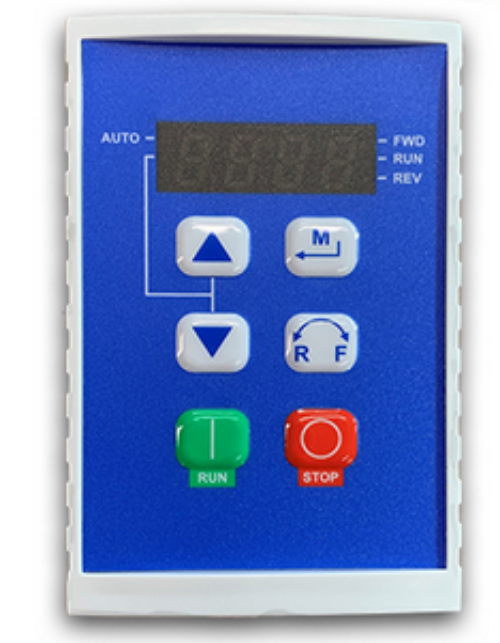

ESVZXK1, SMV Vector Keypad W/Drive Interface Module And Included 8' Cable (For Up To 10hp Nema 1 / Nema 4x Indoor Drives)

$352.03
shipping

Estimate shipping

Description

ESVZXK1, SMV Vector Keypad W/Drive Interface Module And Included 8' Cable (For Up To 10hp Nema 1 / Nema 4x Indoor Drives)

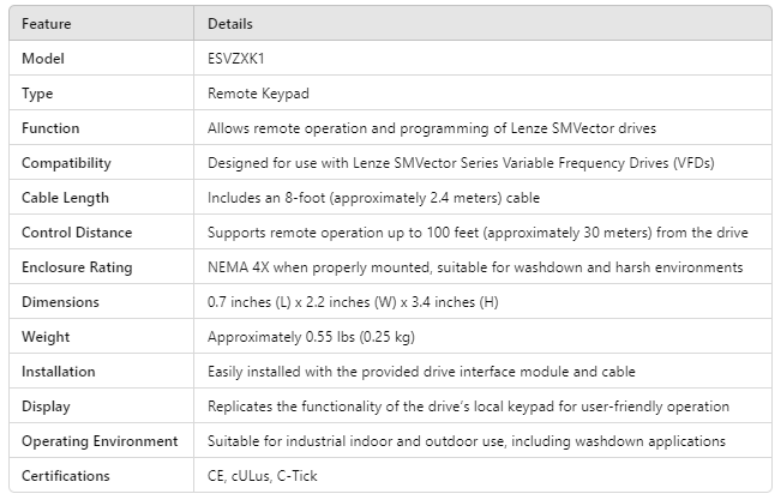

Feature Details
Model ESVZXK1
Type Remote Keypad
Function Allows remote operation and programming of Lenze SMVector drives
Compatibility Designed for use with Lenze SMVector Series Variable Frequency Drives (VFDs)
Cable Length Includes an 8-foot (approximately 2.4 meters) cable
Control Distance Supports remote operation up to 100 feet (approximately 30 meters) from the drive
Enclosure Rating NEMA 4X when properly mounted, suitable for washdown and harsh environments Electric
Dimensions 0.7 inches (L) x 2.2 inches (W) x 3.4 inches (H)
Weight Approximately 0.55 lbs (0.25 kg)
Installation Easily installed with the provided drive interface module and cable
Display Replicates the functionality of the drive’s local keypad for user-friendly operation
Operating Environment Suitable for industrial indoor and outdoor use, including washdown applications
Certifications CE, cULus, C-Tick
