LENZE | SKU:
EMN-018428

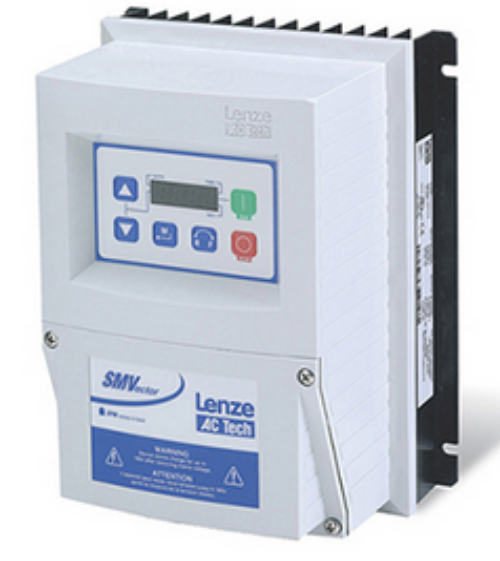

ESV751N06TXC, SMV SERIES SENSORLESS Vector 1Hp / 600V, 3PH(i/p) / 1.7A(o/p) Cont. / NEMA4X (IP65) INDOOR (Frame R1)
Regular price
$963.35
Unit price
/
Unavailable
ESV751N06TXC, SMV SERIES SENSORLESS Vector 1Hp / 600V, 3PH(i/p) / 1.7A(o/p) Cont. / NEMA4X (IP65) INDOOR (Frame R1) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
ESV751N06TXC, SMV SERIES SENSORLESS Vector 1Hp / 600V, 3PH(i/p) / 1...
Regular price
$963.35
Unit price
/
Unavailable
Description
Description
ESV751N06TXC, SMV SERIES SENSORLESS Vector 1Hp / 600V, 3PH(i/p) / 1.7A(o/p) Cont. / NEMA4X (IP65) INDOOR (Frame R1)
Equivalent :Leeson 174663.00

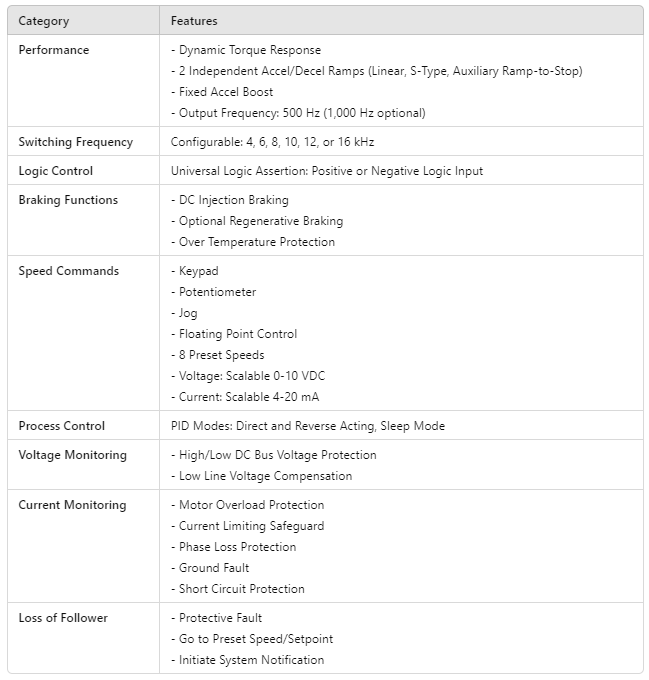

| Category | Features |
|---|---|
| Performance | - Dynamic Torque Response - 2 Independent Accel/Decel Ramps (Linear, S-Type, Auxiliary Ramp-to-Stop) - Fixed Accel Boost - Output Frequency: 500 Hz (1,000 Hz optional) |
| Switching Frequency | Configurable: 4, 6, 8, 10, 12, or 16 kHz |
| Logic Control | Universal Logic Assertion: Positive or Negative Logic Input |
| Braking Functions | - DC Injection Braking - Optional Regenerative Braking - Over Temperature Protection |
| Speed Commands | - Keypad - Potentiometer - Jog - Floating Point Control - 8 Preset Speeds - Voltage: Scalable 0-10 VDC - Current: Scalable 4-20 mA |
| Process Control | PID Modes: Direct and Reverse Acting, Sleep Mode |
| Voltage Monitoring | - High/Low DC Bus Voltage Protection - Low Line Voltage Compensation |
| Current Monitoring | - Motor Overload Protection - Current Limiting Safeguard - Phase Loss Protection - Ground Fault - Short Circuit Protection |
| Loss of Follower | - Protective Fault - Go to Preset Speed/Setpoint - Initiate System Notification |
