LENZE  |  SKU: EMN-017276

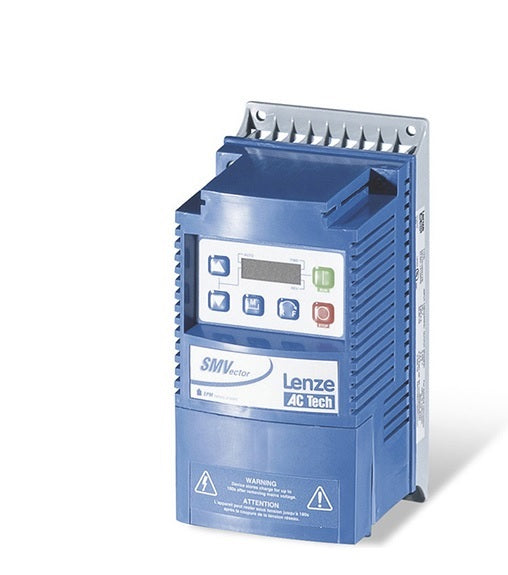

ESV552N02TXB, Lenze, 7.5 Horse power, 240V, 3Ph,174616.00, Nema 1,

$925.00
shipping

Estimate shipping

Description
ESV552N02TXB, Lenze, 7.5 Hp, 240V, 3Ph,174616.00, Drives, Nema 1,PRODUCT DETAILS,

SMV SERIES SENSORLESS 7.5Horse Power / 240V, 3PH(i/p) / 23.0A(o/p) Cont. / NEMA1

  • SMV Series
  • NEMA 1
  • 240 Volt Three Phase Input
  • 7 1/2 hp Power Rating
  • 23.0 A Output Current

DESCRIPTION

  • The SMV drive delivers unparalleled performance and simplicity. The SMV drive is the right choice when you need it all – performance, power, packaging and intuitive programming.

APPLICATIONS

  • Food processing machinery
  • Packaging machinery
  • Material handling
  • Conveying systems
  • HVAC systems

FEATURES

  • NEW sequencer function
  • V/Hz through control
  • Up to 60 hp
  • NEMA® 1 and NEMA® 4X enclosures
  • Flexible power ranges
  • Industrial grade packaging
  • Intuitive user interface
  • Electronic programming module
  • Exceptional starting torque
  • Load: constant torque or variable torque
  • Dynamic speed regulation
  • Quick acceleration
  • Two-year warranty
  • Original Integrated EMC Filters are available on NEMA® 4X drives to meet CE regulations

SPECIFICATIONS

INPUT VOLTAGE 240
ENCLOSURE NEMA 1
CONTROL SERIES SMV
HORSEPOWER CONSTANT TORQUE 7 1/2 hp
INTEGRATED LINE DISCONNECT No
INSTALLED I/O & COMMUNICATION MODULE No Communications Installed / Standard Keypad
INVERTER OR V DUTY V Duty
LOAD TYPE Constant Torque, Variable Torque
EMC FILTER No
INPUT PHASE Three Phase
OUTPUT CURRENT CONTINUOUS AMPS 23 A
POWER RATING 7 1/2 hp
PHASE Three Phase
WEIGHT 7.4 LB
