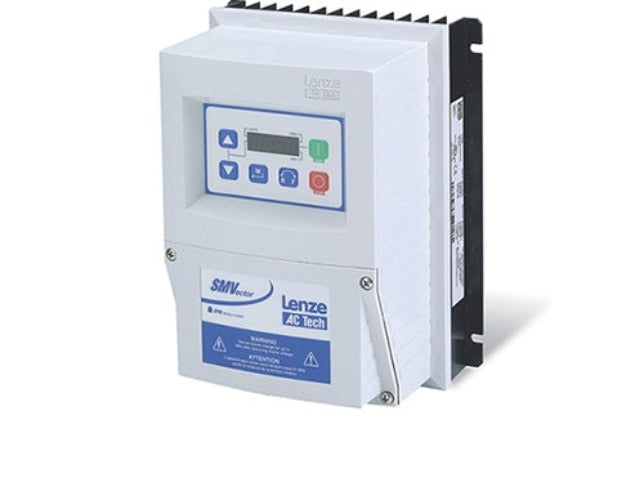

ESV153N04TXD, SMV SERIES SENSORLESS Vector 20Hp / 480V, 3PH(i/p) / 27.0A(o/p) Cont. / NEMA4x (IP65) INDOOR (Frame W1)

ESV153N04TXD, SMV SERIES SENSORLESS Vector 20Hp / 480V, 3PH(i/p) / 27.0A(o/p) Cont. / NEMA4x (IP65) INDOOR (Frame W1)

Equivalent : Leeson 174702.00

KEY FEATURES

• Dynamic torque response for smooth motor acceleration and deceleration

• Independent control of acceleration and deceleration rates

• Linear and S-curve adjustable ramp profiles for optimized motion

• Fixed boost function improves motor starting performance

• Adjustable output frequency (0.5–500 Hz, up to 1 kHz optional)

• User-friendly keypad for on-site configuration and adjustments

• Universal logic input with selectable positive or negative logic type

• Built-in electronic braking system

• Optional regenerative braking capability

• Temperature monitoring with automatic shutdown on over-temperature event

• Multiple speed command options including keypad, potentiometer, and analog input

• Floating point control with preset speeds and scalable voltage input (0–10 VDC)

• PID process control with sleep/wake and timer functions

• Voltage compensation ensures consistent torque at low speed

• Current and phase monitoring with automated fault handling

• Short-circuit and overload fault detection with automatic reset options

• Fault indication through display and system notifications

• Suitable for general-purpose 3-phase induction motors up to 20 HP

• This product is an electrical control component for motors and does not contain or emit any pesticide substances. It has no pesticidal or biological activity and is exempt from EPA regulations.
