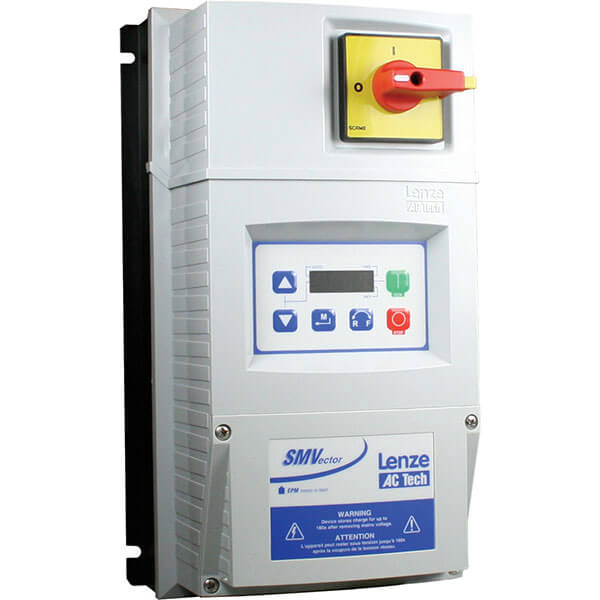

ESV112N01SMC, LENZE, 1.5 HP, 115/240V,VFD, 1PH IN, 3PH OUT, NEMA 4X, IP65

LENZE

  • $1,086.20


ESV112N01SMC, LENZE , AC TECH

Communication Modules: With plug-in communication modules, the SMVector is easily integrated into any one of today's most commonly used industrial networks. Whether the application is to automate a single machine or an entire facility, the SMVector is fully equipped to make the process a snap. Available Communications Modules are:

» Modbus / RS485 (standard on 15HP (11kw) models and higher)

» DeviceNet

» CANopen

» PROFIBUS DP

» EtherNet/IP

» Additional Form-C relay output

» Additional I/O module with 1 Form-C relay and 2 digital inputs

Speed Potentiometer: A speed potentiometer is a preferred operator interface in some applications than up and down push buttons. For these situations, an option terminal cover replacement for NEMA 4X drives (with or without disconnect) is available that integrates a speed potentiometer, knob and dial.

Remote Keypad: Simple 4 wire connection between the SMVector drive and the remote keypad provides for drive operation (start, stop, direction and speed) and programming. Includes 4 digit LED display. Measures only 3.4in (H) x2.2 in (W). Includes gasketing to meet up to NEMA 4X rated environments.

Dynamic Braking: Packaged Dynamic brake option includes control and resistors in an easy to implement solution for fast stopping or deceleration requirements.
