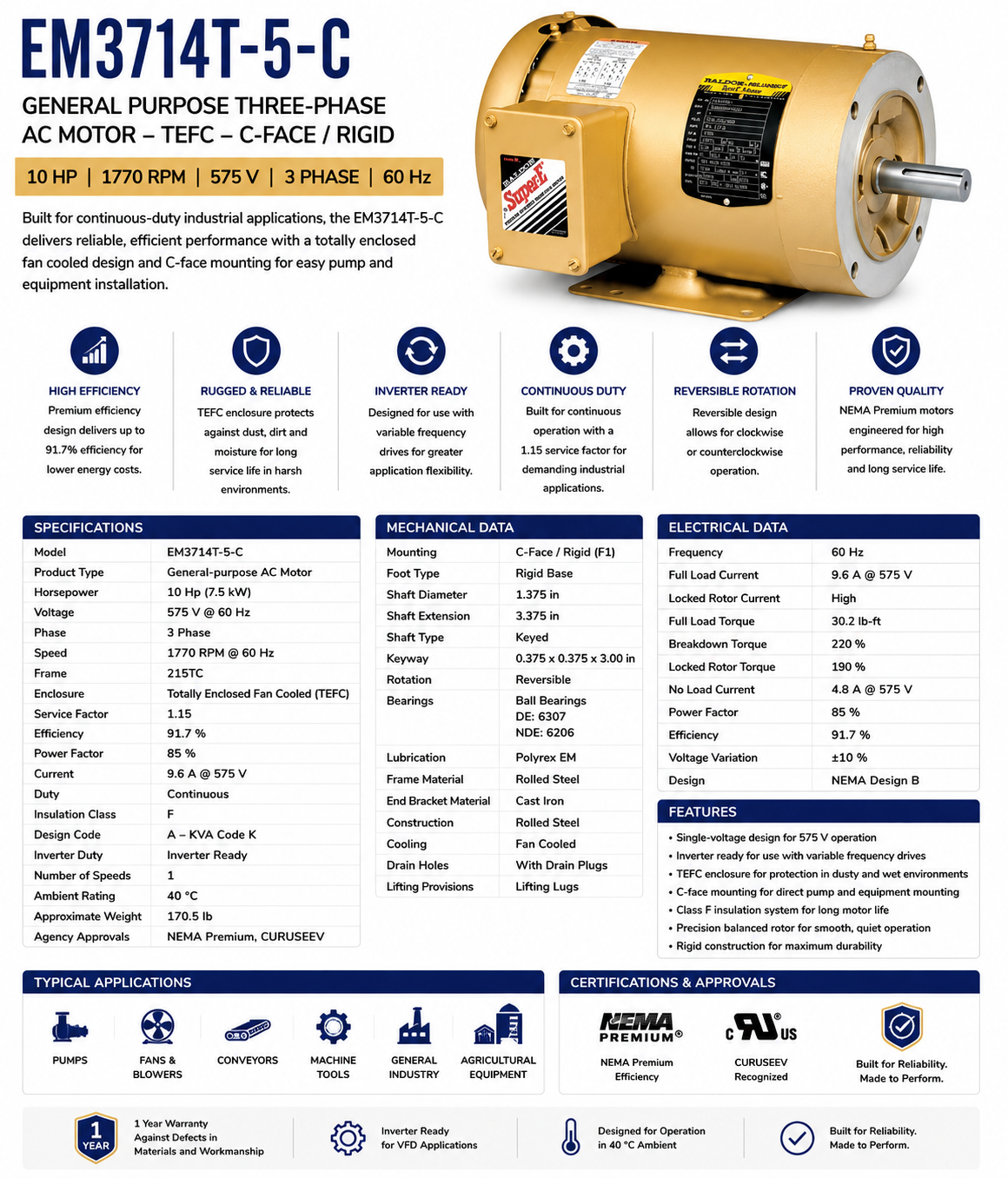

EM3714T‑5‑C, 10 Hp, 1770 RPM, 575 V, 3 Ph, 60 Hz, TEFC, Frame 215TC

This general‑purpose three‑phase AC motor is designed for continuous industrial applications, offering single‑voltage 575 V operation with inverter readiness and durable TEFC construction in a 215TC frame.

KEY FEATURES

• Model: EM3714T‑5‑C

• Product Type: General‑purpose three‑phase AC motor

• Horsepower: 10 Hp

• Voltage: 575 V @ 60 Hz – 3 Phase

• Speed: 1770 RPM @ 60 Hz

• Frame: 215TC

• Enclosure: Totally Enclosed Fan Cooled (TEFC)

• Service Factor: 1.15

• Efficiency: 91.7 %

• Power Factor: 85 %

• Current: 9.6 A @ 575 V

• Duty: Continuous

• Insulation Class: F

• Design Code: A – KVA Code K

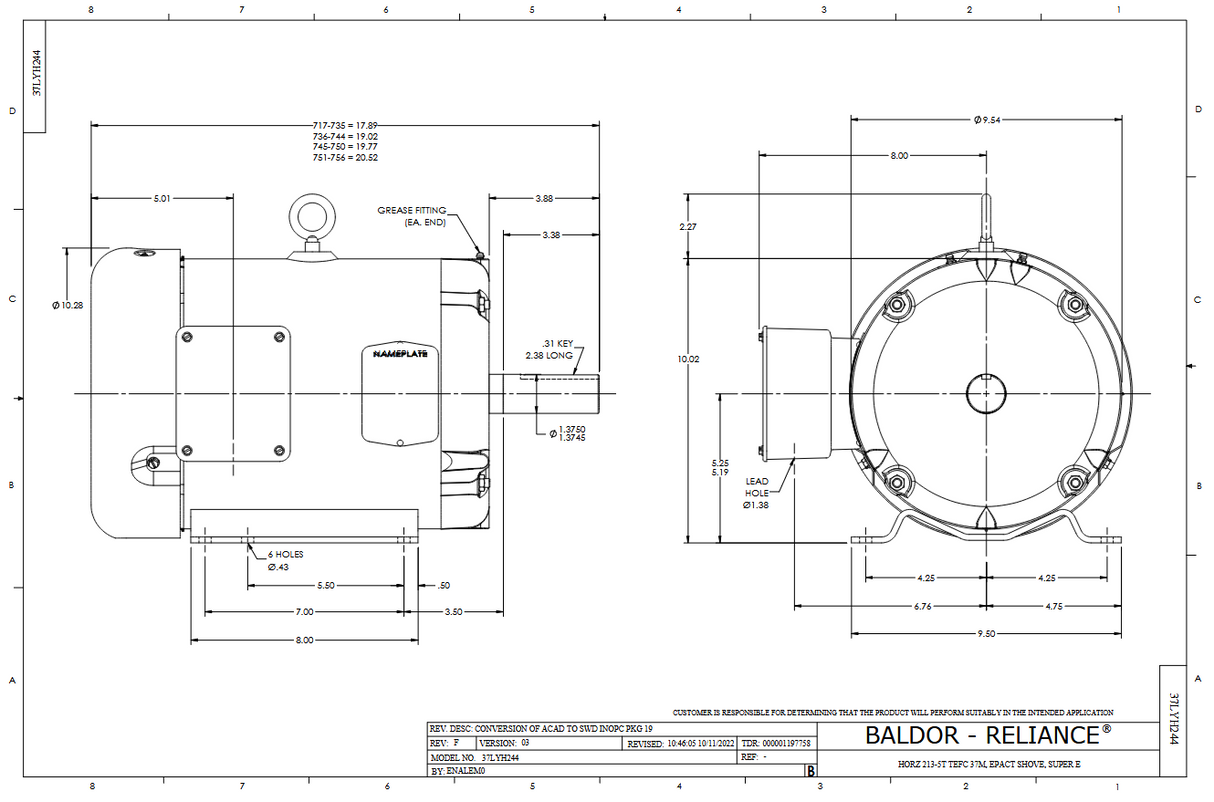

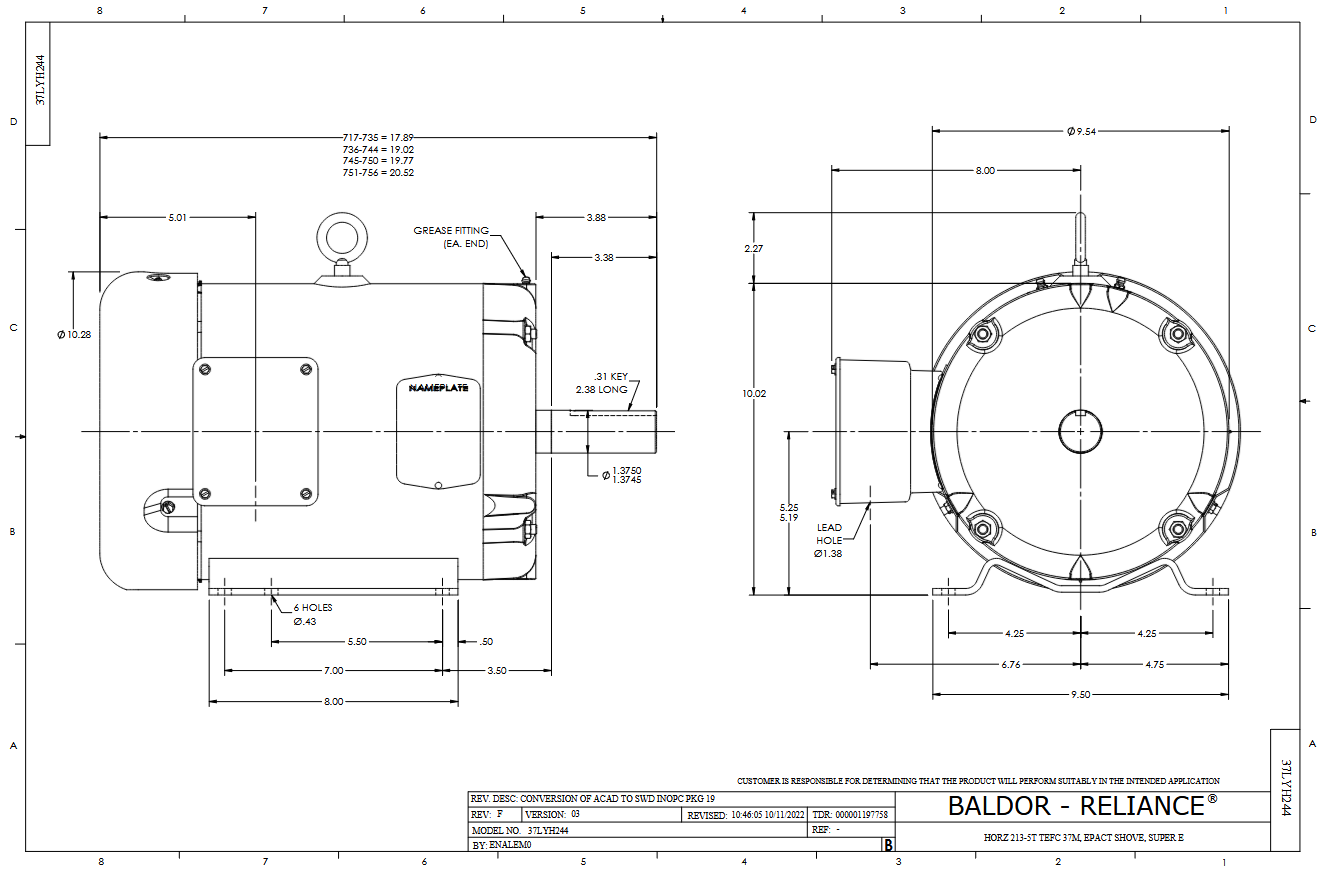

• Mounting: C‑Face / Rigid (F1)

• Shaft: 1.375" diameter, 3.375" length

• Bearings: DE: 6307; NDE: 6206

• Frame Material: Rolled Steel

• Rotation: Reversible

• Inverter Duty: Inverter Ready

• Ambient Rating: 40 °C

• Approximate Weight: 170.5 lb

This motor’s single‑voltage design, inverter readiness, and robust TEFC construction make it well‑suited for demanding industrial environments.
