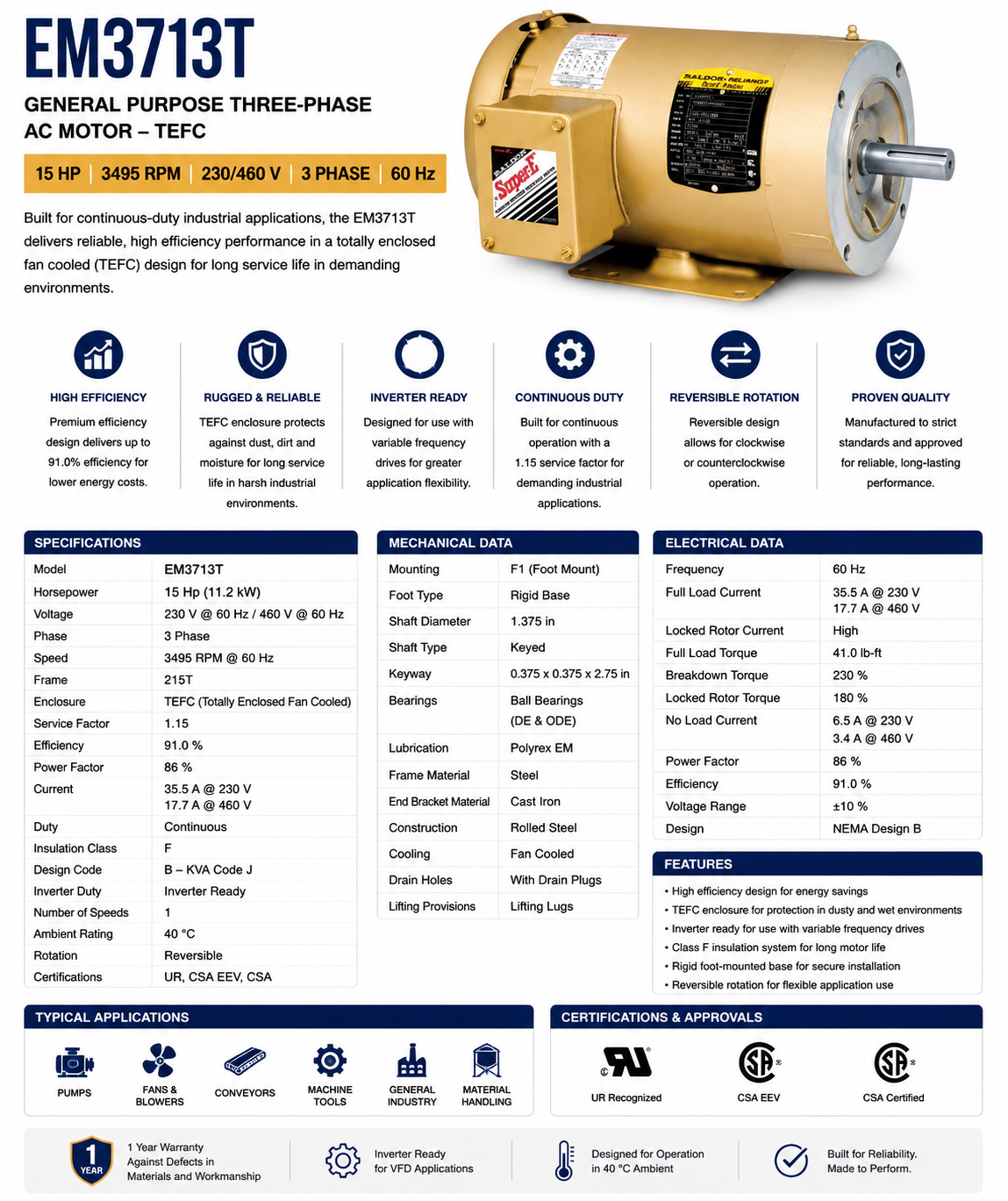

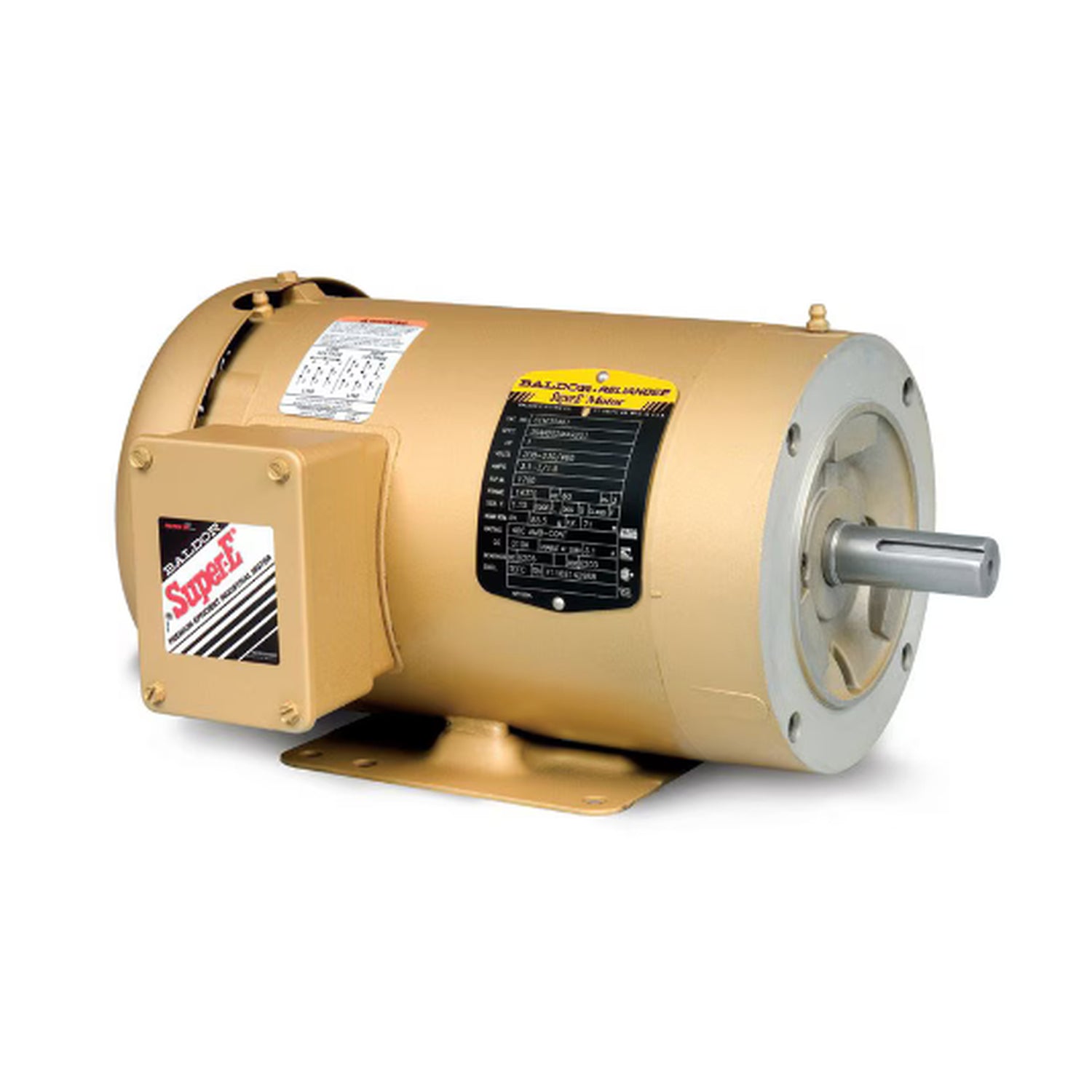

EM3713T, 15Hp, 3495 RPM, 230/460 V, 3 Ph, 60 Hz, TEFC, Frame 215T

This three‑phase general‑purpose AC motor delivers 15 Hp at 60 Hz with a totally enclosed fan‑cooled design in a robust 215T frame, suitable for continuous industrial applications.

KEY FEATURES

• Model: EM3713T

• Horsepower: 15 Hp

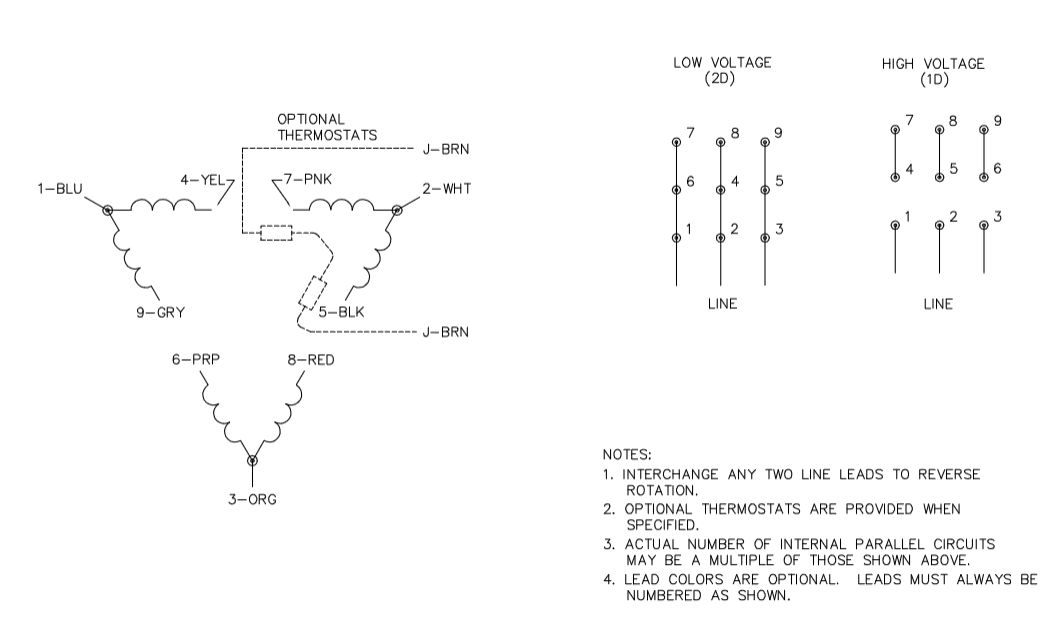

• Voltage: 230 V @ 60 Hz / 460 V @ 60 Hz – 3 Phase

• Speed: 3495 RPM @ 60 Hz

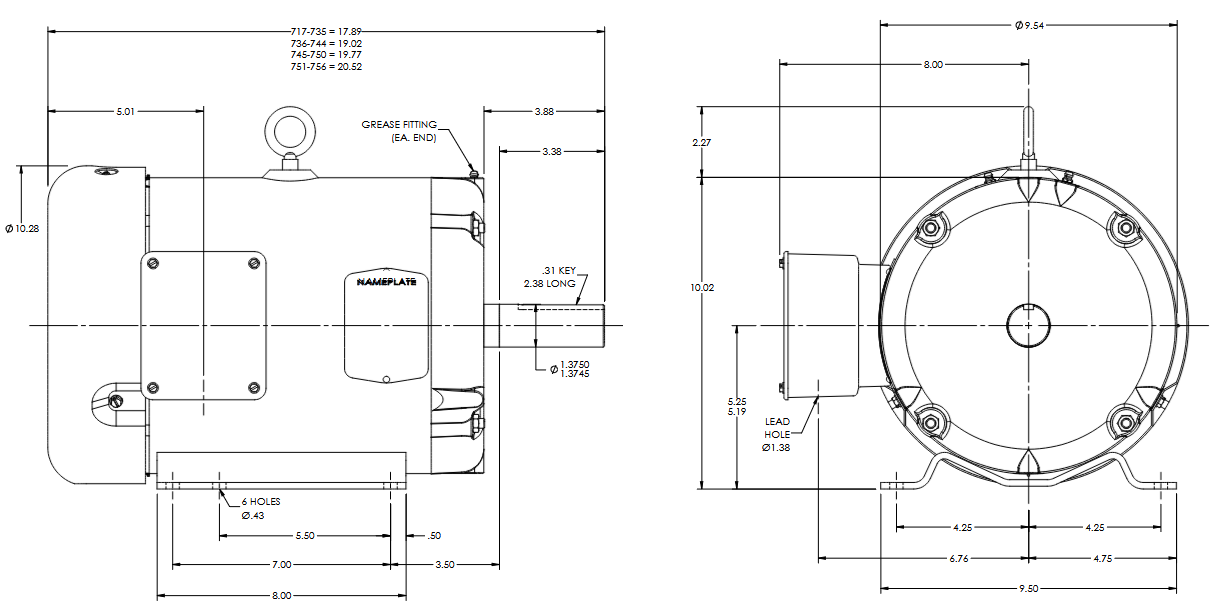

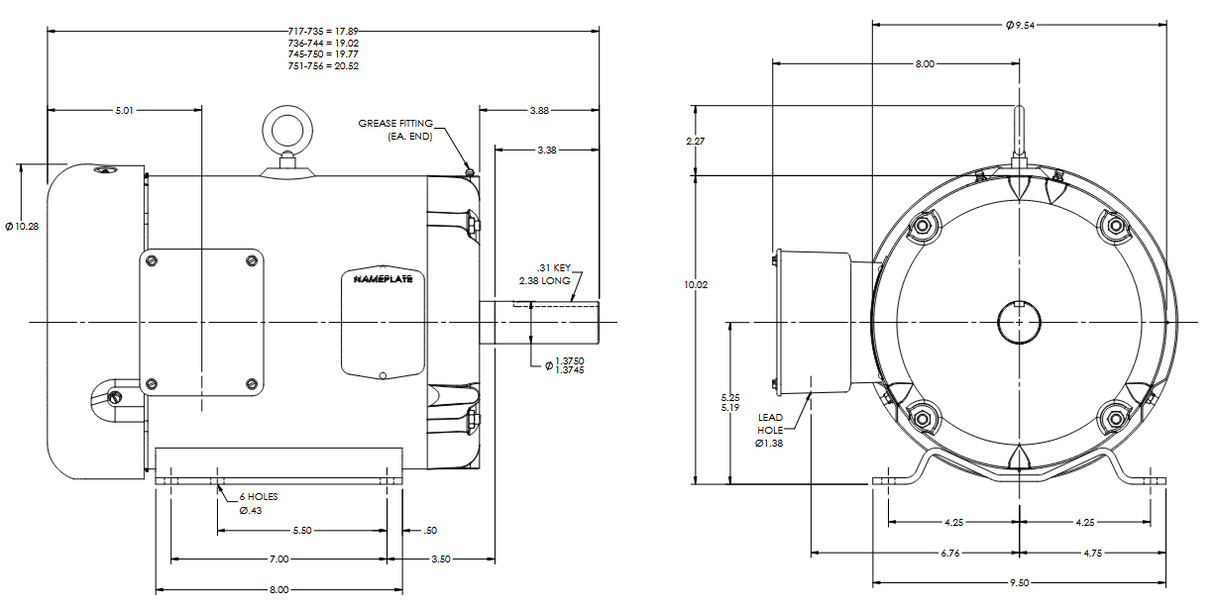

• Frame: 215T

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Service Factor: 1.15

• Efficiency: 91.0 %

• Power Factor: 86

• Current: 35.5 A @ 230 V / 17.7 A @ 460 V

• Duty: Continuous

• Insulation Class: F

• Design Code: B – KVA Code J

• Mounting: F1 (Foot Mount)

• Shaft: 1.375 in diameter

• Bearings: Ball Bearings (DE & ODE)

• Frame Material: Steel

• Rotation: Reversible

• Inverter Duty: Inverter Ready

• Number of Speeds: 1

• Ambient Rating: 40 °C

• Certifications: UR, CSA EEV, CSA

The motor’s combination of high efficiency, inverter readiness, and robust TEFC enclosure make it well‑suited for demanding industrial environments.
