ELP2P3D, 2Hp, 1170RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 184T, IP55, eLline Premium Cast Iron

ELP2P3D, 2Hp, 1170RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 184T, IP55, eLline Premium Cast Iron

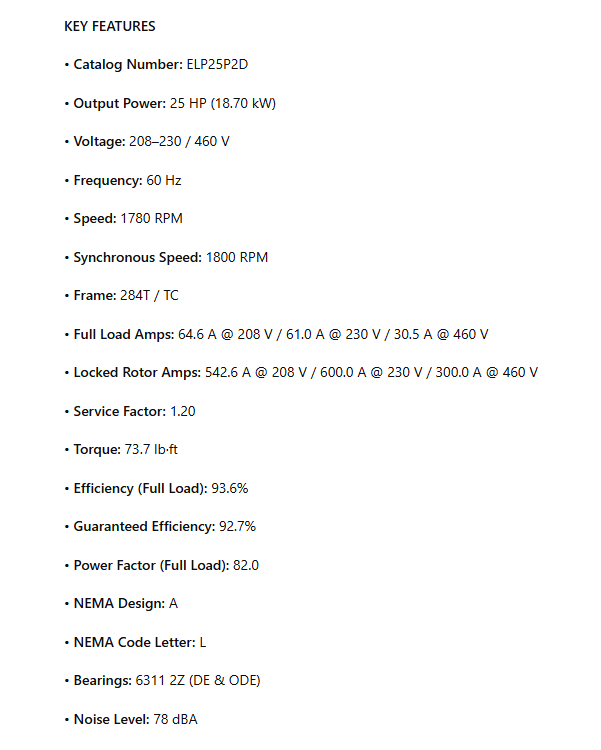

KEY FEATURES

• Catalog Number: ELP25P2D

• Output Power: 25 HP (18.70 kW)

• Voltage: 208–230 / 460 V

• Frequency: 60 Hz

• Speed: 1780 RPM

• Synchronous Speed: 1800 RPM

• Frame: 284T / TC

• Full Load Amps: 64.6 A @ 208 V / 61.0 A @ 230 V / 30.5 A @ 460 V

• Locked Rotor Amps: 542.6 A @ 208 V / 600.0 A @ 230 V / 300.0 A @ 460 V

• Service Factor: 1.20

• Torque: 73.7 lb·ft

• Efficiency (Full Load): 93.6%

• Guaranteed Efficiency: 92.7%

• Power Factor (Full Load): 82.0

• NEMA Design: A

• NEMA Code Letter: L

• Bearings: 6311 2Z (DE & ODE)

• Noise Level: 78 dBA
