ELP10P3D, 10Hp, 1180RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 256T, IP55, eLline Premium Cast Iron

ELP10P3D, 10Hp, 1180RPM, 208-230/460V, 3Ph, 60-50Hz, TEFC, Frame 256T, IP55, eLline Premium Cast Iron

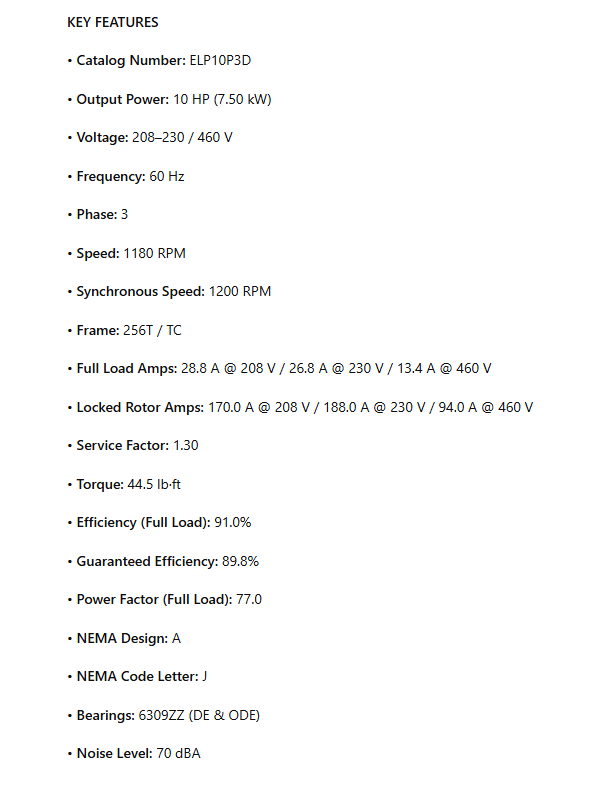

KEY FEATURES

• Catalog Number: ELP10P3D

• Output Power: 10 HP (7.50 kW)

• Voltage: 208–230 / 460 V

• Frequency: 60 Hz

• Phase: 3

• Speed: 1180 RPM

• Synchronous Speed: 1200 RPM

• Frame: 256T / TC

• Full Load Amps: 28.8 A @ 208 V / 26.8 A @ 230 V / 13.4 A @ 460 V

• Locked Rotor Amps: 170.0 A @ 208 V / 188.0 A @ 230 V / 94.0 A @ 460 V

• Service Factor: 1.30

• Torque: 44.5 lb·ft

• Efficiency (Full Load): 91.0%

• Guaranteed Efficiency: 89.8%

• Power Factor (Full Load): 77.0

• NEMA Design: A

• NEMA Code Letter: J

• Bearings: 6309ZZ (DE & ODE)

• Noise Level: 70 dBA
