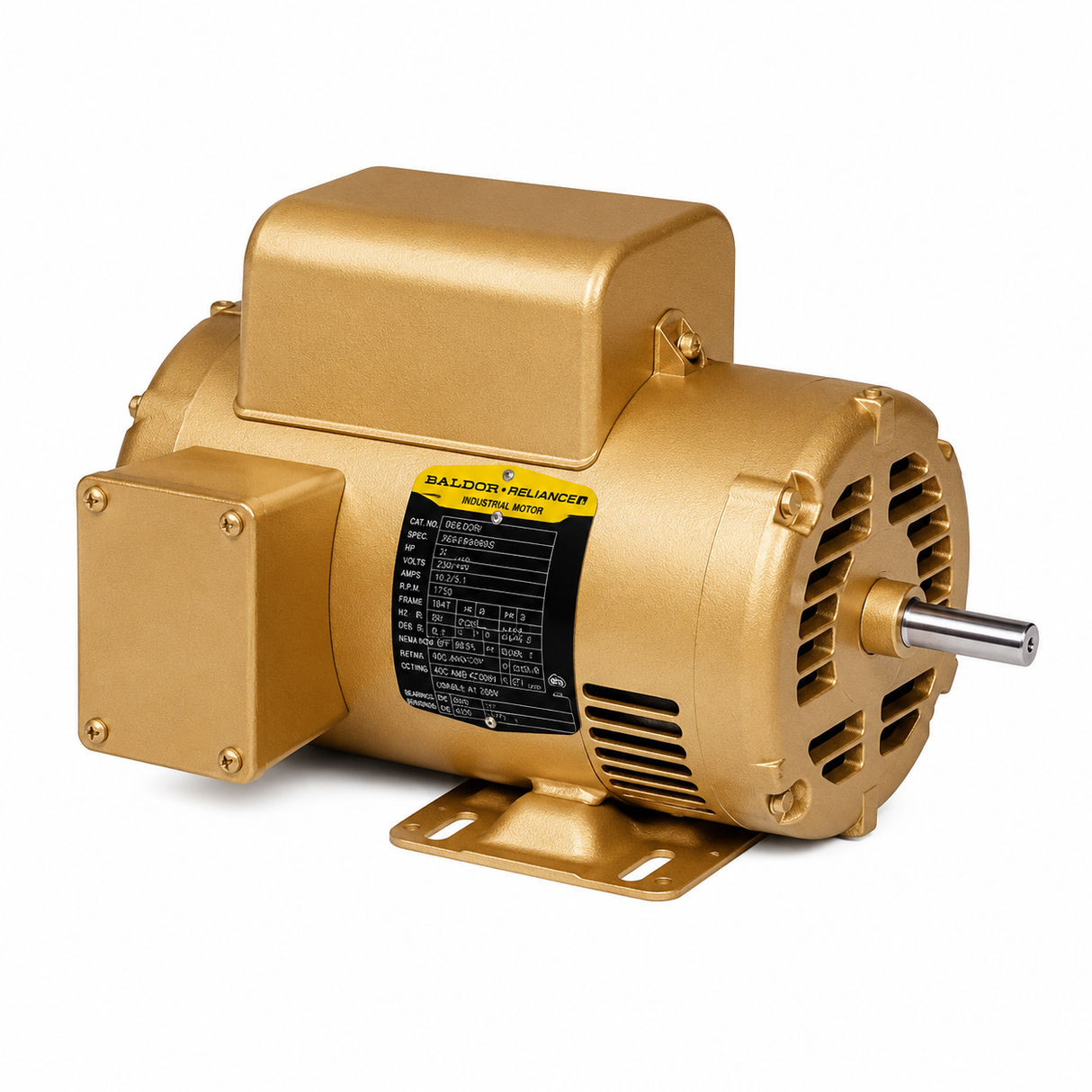

EL11203, 0.25Hp, 1725 RPM, 115/230 V, 1 Ph, 60 Hz, OPEN (ODP), Frame 48, 34F351R064G1

This general-purpose single-phase AC motor is designed for continuous industrial applications, offering dual-voltage operation in a compact Frame 48 open (ODP) enclosure with a rigid F1 base.

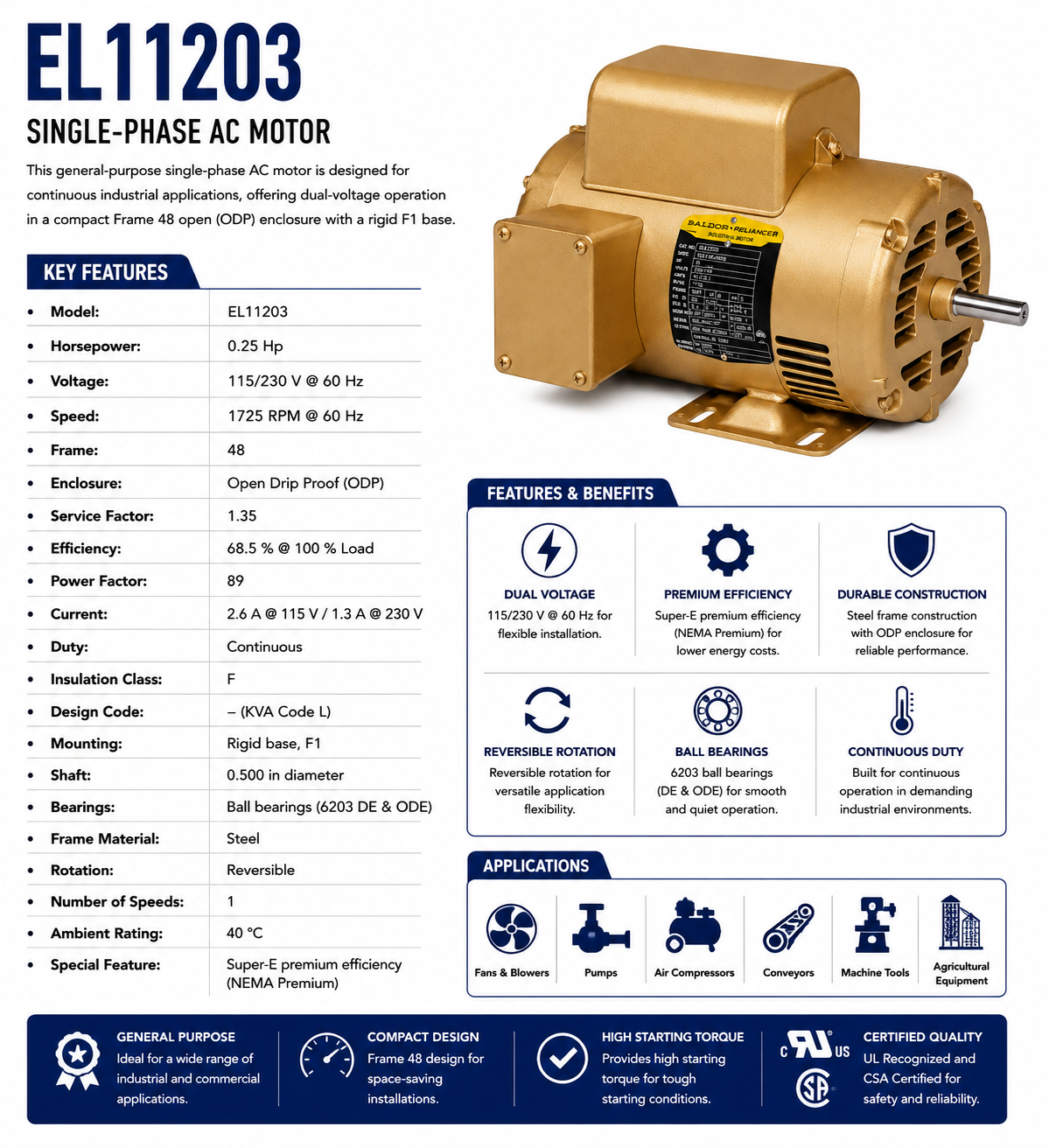

KEY FEATURES

• Model: EL11203

• Horsepower: 0.25 Hp

• Voltage: 115/230 V @ 60 Hz

• Speed: 1725 RPM @ 60 Hz

• Frame: 48

• Enclosure: Open Drip Proof (ODP)

• Service Factor: 1.35

• Efficiency: 68.5 % @ 100 % Load

• Power Factor: 89

• Current: 2.6 A @ 115 V / 1.3 A @ 230 V

• Duty: Continuous

• Insulation Class: F

• Design Code: – (KVA Code L)

• Mounting: Rigid base, F1

• Shaft: 0.500 in diameter

• Bearings: Ball bearings (6203 DE & ODE)

• Frame Material: Steel

• Rotation: Reversible

• Number of Speeds: 1

• Ambient Rating: 40 °C

• Special Feature: Super‑E premium efficiency (NEMA Premium)

This motor’s compact, dual-voltage design and premium efficiency make it well-suited for general-purpose industrial machinery where space and energy savings are important.
