BALDOR | SKU:
EMN-016457

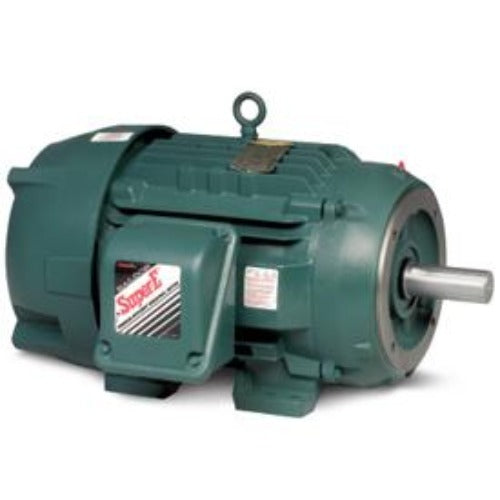

ECP3663T, Baldor, 3 HP, 3490 Rpm, 230/460V, 06H003W730G1, 184T, Severe Duty
Regular price
$1,811.47
Unit price
/
Unavailable
ECP3663T, Baldor, 3 HP, 3490 Rpm, 230/460V, 06H003W730G1, 184T, Severe Duty - ECP3663T Without C-Flange is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![ECP3663T, Baldor, 3 HP, 3490 Rpm, 230/460V, 06H003W730G1, 184T, Severe Duty - GÉNÉRAL PURPOSE 3 PHASES - BALDOR - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur - fan](http://www.emotornations.com/cdn/shop/products/796010c9-2d40-48ea-944f-79c5476da6e9.jpg?v=1756414730&width=112)
ECP3663T, Baldor, 3 HP, 3490 Rpm, 230/460V, 06H003W730G1, 184T, Sev...
Regular price
$1,811.47
Unit price
/
Unavailable
Description
Description
ECP3663T, SPEC 06H003W730G1, Severe duty rating,
| CAT.NO. | ECP3663T | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SPEC. | 06H003W730G1 | |||||||||||||||||||
| HP | 5 TE | |||||||||||||||||||
| VOLTS | 230/460 | |||||||||||||||||||
| AMP | 11.4/5.7 | |||||||||||||||||||
| RPM | 3490 | |||||||||||||||||||
| FRAME | 184T | HZ | 60 | PH | 3 | |||||||||||||||
| SER.F. | 1.15 | CODE | M | DES | A | CL | F | |||||||||||||
| RATING | 40C AMB-CONT | |||||||||||||||||||
| SN | ||||||||||||||||||||
| DE | 6206 | ODE | 6205 | |||||||||||||||||
| NEMA-NOM-EFF | 90.2 | PF | 90 | |||||||||||||||||
| G.MIN.EFF | 88.5 | CC | 010A | |||||||||||||||||
| T. CODE | T3C | T= | 160 | |||||||||||||||||
| NP3257E | ||||||||||||||||||||
| SPEC. | 06H003W730G1 | |||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D.E. BRG. | 30BC02XP30X | |||||||||||||||||||||||||||||||||
| O.D.E. BRG. | 25BC02XP30X | |||||||||||||||||||||||||||||||||
| GREASE | POLYREX EM | |||||||||||||||||||||||||||||||||
| RPM MAX | 5400 | MAX. KVAR | N/A | |||||||||||||||||||||||||||||||
| BLANK | ||||||||||||||||||||||||||||||||||
| INV.TYPE | PWM | |||||||||||||||||||||||||||||||||
| T= | 160 | |||||||||||||||||||||||||||||||||
| C HP FR | 60 | C HP TO | 90 | |||||||||||||||||||||||||||||||
| CT HZ FROM | 6 | CT HZ TO | 60 | |||||||||||||||||||||||||||||||
| VT HZ FROM | 3 | VT HZ TO | 60 | |||||||||||||||||||||||||||||||
| HTR-VOLTS | HTR-AMPS | |||||||||||||||||||||||||||||||||
| HTR-WATTS | MAX. SPACE HEATER TEMP. | |||||||||||||||||||||||||||||||||
