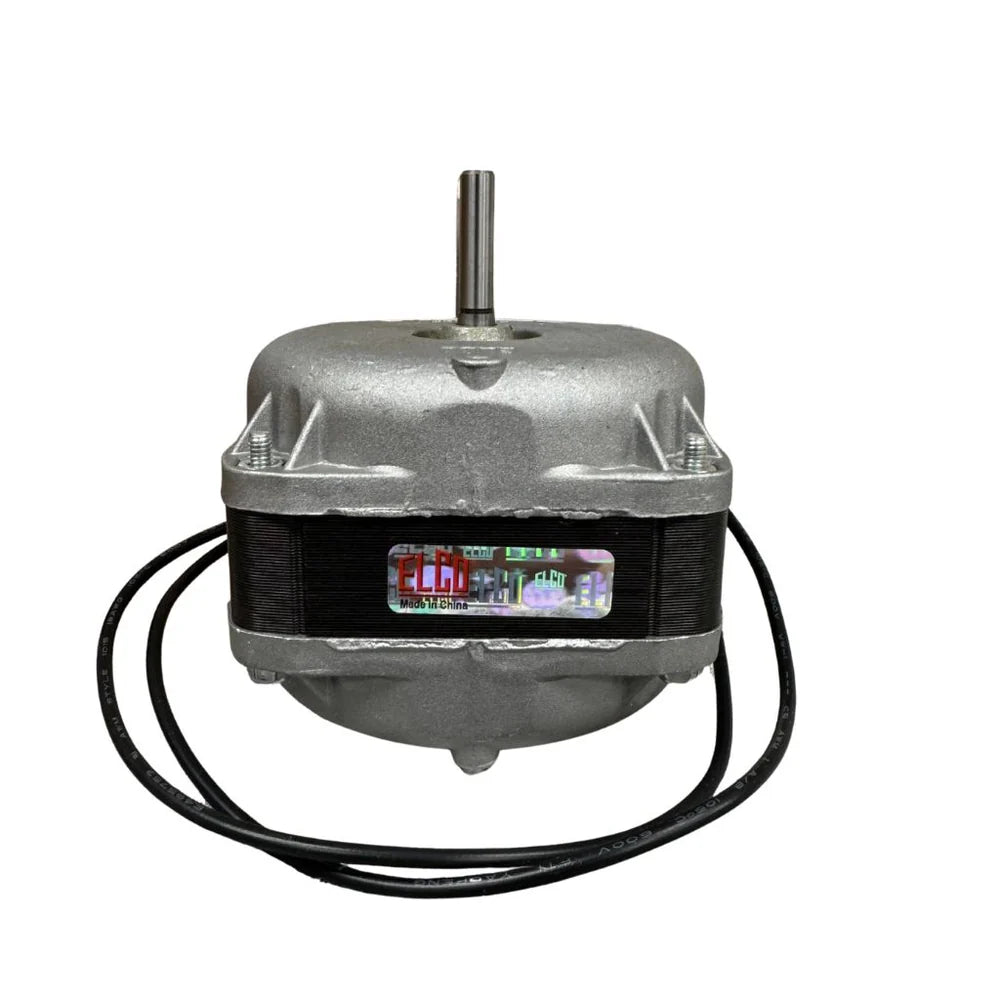

EC9W230V1156, HVAC/R Motors, Unit Bearing 9W, 1550 RPM, 230V, 1Ph, 60Hz, TEAO, CCWSE

EC9W230V1156, HVAC/R Motors, Unit Bearing 9W, 1550 RPM, 230V, 1Ph, 60Hz, TEAO, CCWSE

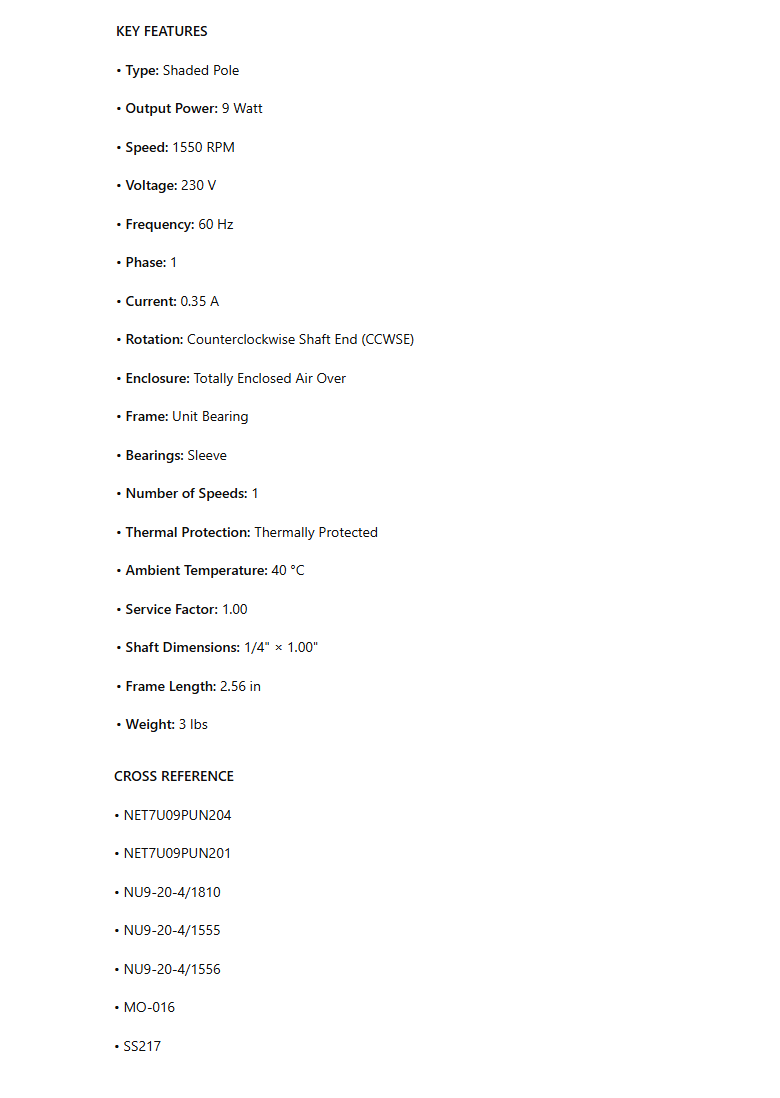

KEY FEATURES

• Type: Shaded Pole

• Output Power: 9 Watt

• Speed: 1550 RPM

• Voltage: 230 V

• Frequency: 60 Hz

• Phase: 1

• Current: 0.35 A

• Rotation: Counterclockwise Shaft End (CCWSE)

• Enclosure: Totally Enclosed Air Over

• Frame: Unit Bearing

• Bearings: Sleeve

• Number of Speeds: 1

• Thermal Protection: Thermally Protected

• Ambient Temperature: 40 °C

• Service Factor: 1.00

• Shaft Dimensions: 1/4" × 1.00"

• Frame Length: 2.56 in

• Weight: 3 lbs

CROSS REFERENCE

• NET7U09PUN204

• NET7U09PUN201

• NU9-20-4/1810

• NU9-20-4/1555

• NU9-20-4/1556

• MO-016

• SS217
