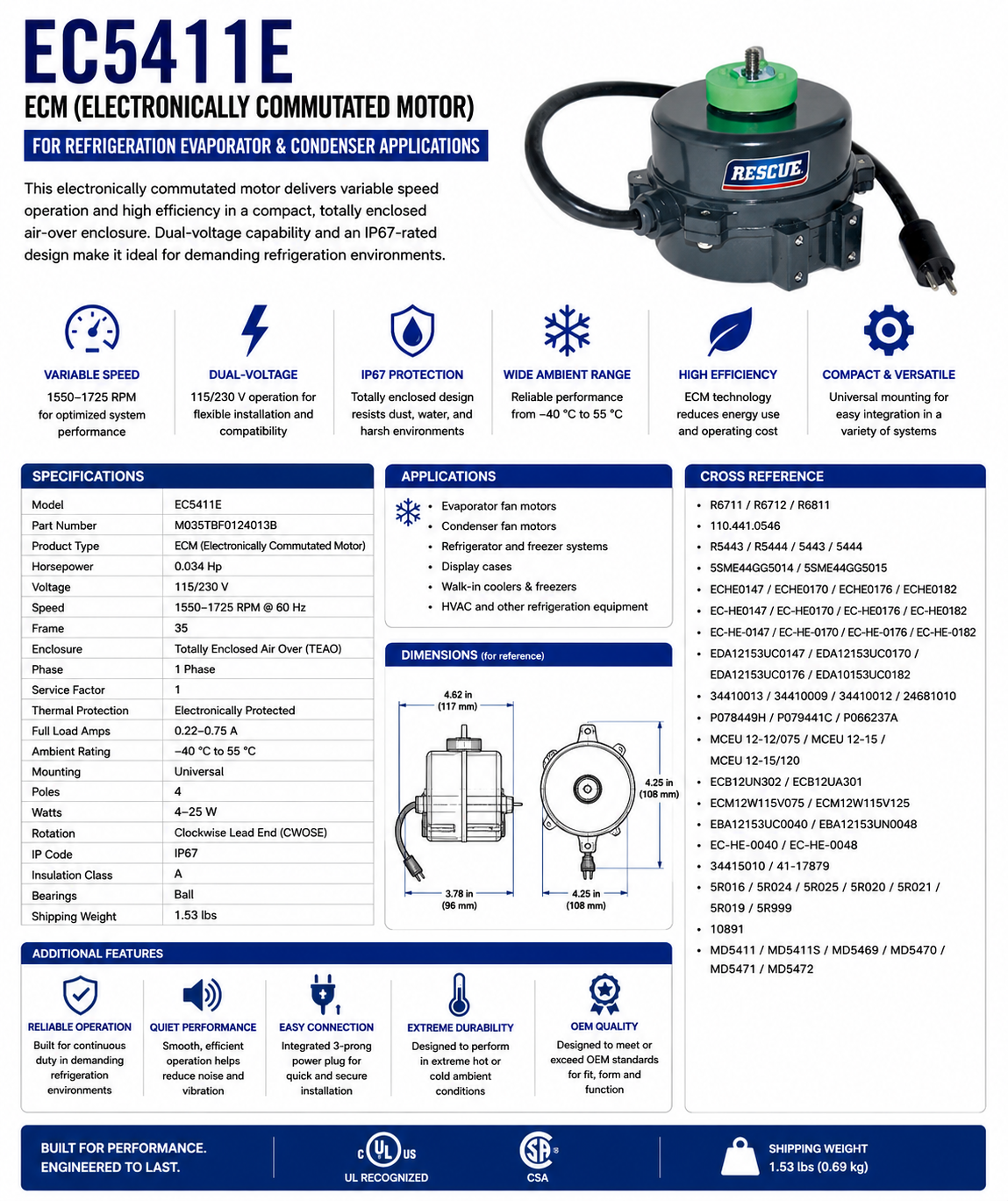

EC5411E, 0.034 Hp, 1550‑1725 RPM, 115/230 V, 1 Ph, 60 Hz, TEAO, Frame 35, M035TBF0124013B

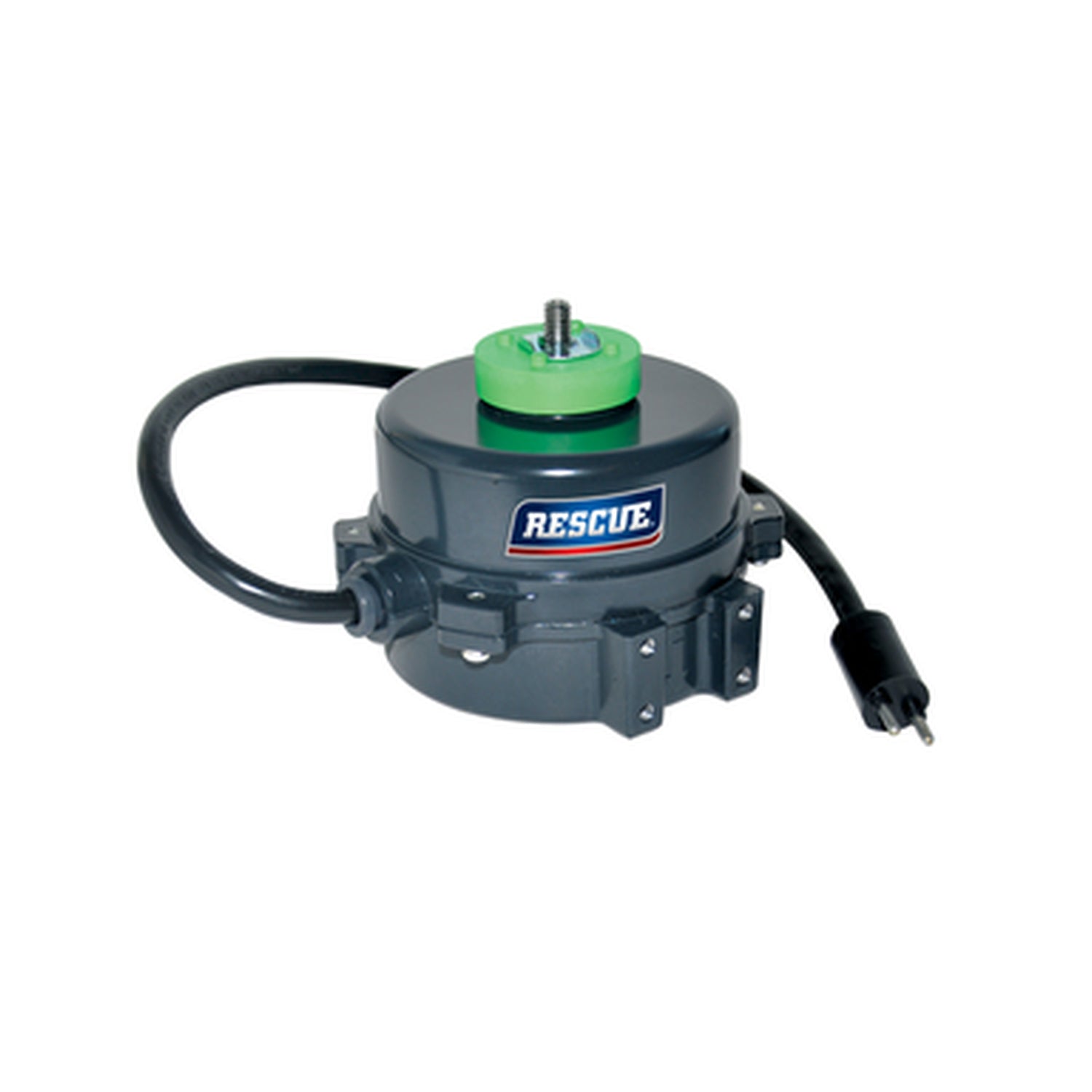

This electronically commutated motor is designed for refrigeration evaporator and condenser applications, offering variable speed operation, dual-voltage capability, and a compact totally enclosed air‑over enclosure.

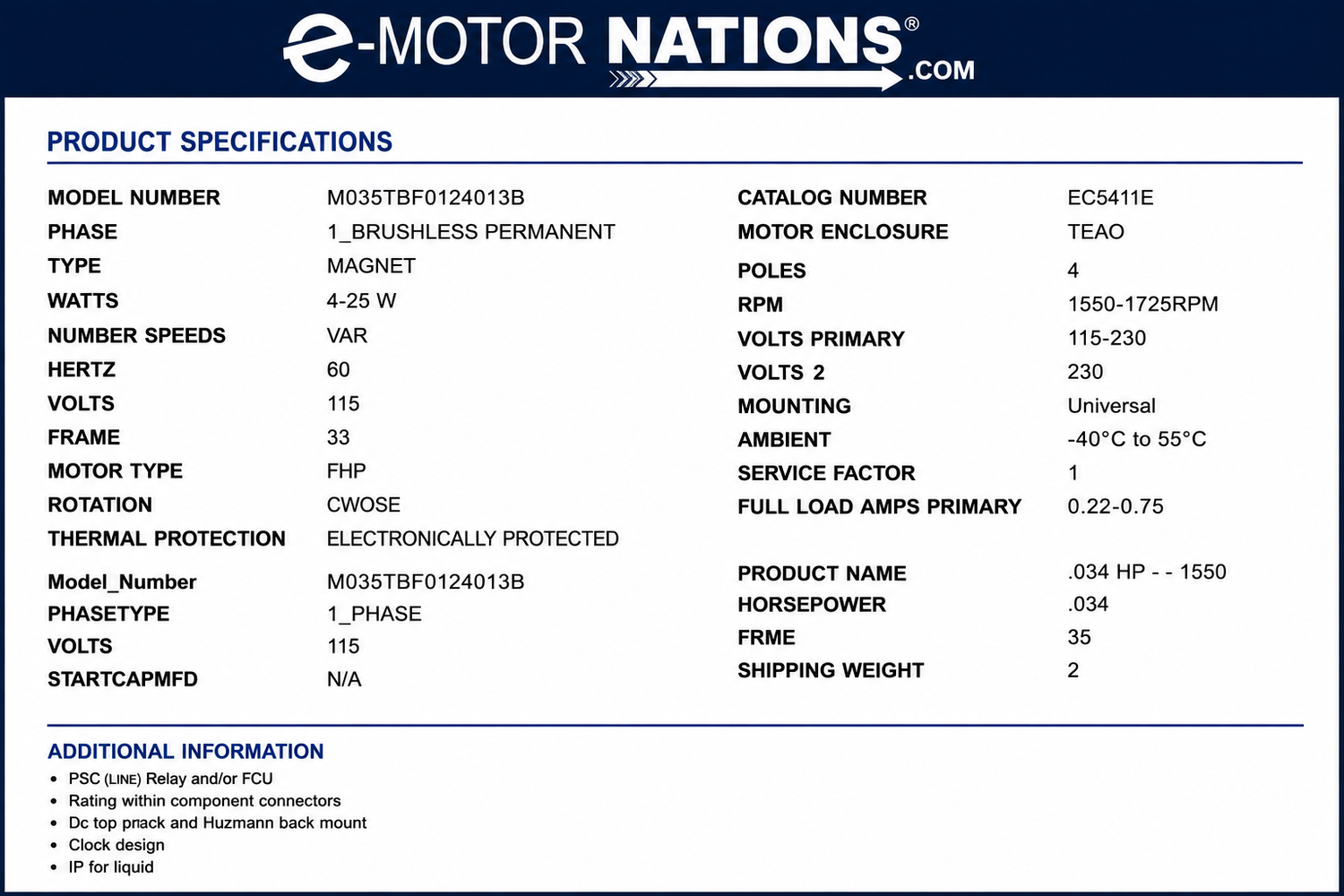

KEY FEATURES

• Model: EC5411E

• Part Number: M035TBF0124013B

• Product Type: ECM (Electronically Commutated Motor)

• Horsepower: 0.034 Hp

• Voltage: 115/230 V

• Speed: 1550‑1725 RPM @ 60 Hz

• Frame: 35

• Enclosure: Totally Enclosed Air Over (TEAO)

• Phase: 1 Phase

• Service Factor: 1

• Thermal Protection: Electronically Protected

• Full Load Amps: 0.22‑0.75 A

• Ambient Rating: –40 °C to 55 °C

• Mounting: Universal

• Poles: 4

• Watts: 4‑25 W

• Rotation: Clockwise Lead End (CWOSE)

• IP Code: IP67

• Insulation Class: A

• Bearings: Ball

• Shipping Weight: 1.53 lbs

The motor’s dual-voltage flexibility and IP67-rated enclosure make it well suited for demanding refrigeration environments, while its compact design ensures easy integration.

CROSS REFERENCE

• R6711 / R6712 / R6811

• 110.441.0546

• R5443 / R5444 / 5443 / 5444

• 5SME44GG5014 / 5SME44GG5015

• ECHE0147 / ECHE0170 / ECHE0176 / ECHE0182

• EC-HE0147 / EC-HE0170 / EC-HE0176 / EC-HE0182

• EC-HE-0147 / EC-HE-0170 / EC-HE-0176 / EC-HE-0182

• EDA12153UC0147 / EDA12153UC0170 / EDA12153UC0176 / EDA10153UC0182

• 34410013 / 34410009 / 34410012 / 24681010

• P078449H / P079441C / P066237A

• MCEU 12-12/075 / MCEU 12-15 / MCEU 12-15/120

• ECB12UN302 / ECB12UA301

• ECM12W115V075 / ECM12W115V125

• EBA12153UC0040 / EBA12153UN0048

• EC-HE-0040 / EC-HE-0048

• 34415010 / 41-17879

• 5R016 / 5R024 / 5R025 / 5R020 / 5R021 / 5R019 / 5R999

• 10891

• MD5411 / MD5411S / MD5469 / MD5470 / MD5471 / MD5472
