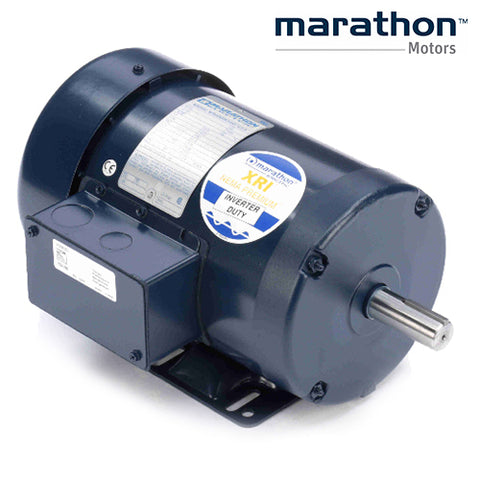

E2126, Marathon, 1 Hp, 1760 Rpm, 575V, 143T, XRI, 143TTFR16040, TEFC,

MARATHON

$941.86

E2126, Marathon, 143TTFR16040, Replace maxmotion MPP-2, MPC-2W,

Nameplate Specifications

Output HP :	1 HP	Output KW :	0.75 kW
Frequency :	60 Hz	Voltage :	575 V
Current :	1.3 A	Speed :	1760 RPM
Service Factor :	1.15	Phase :	3
Efficiency :	85.5 %	Duty :	Continous
Insulation Class :	F	Design Code :	B
KVA Code :	N	Frame :	143T
Enclosure :	Totally Enclosed Fan Cooled	Overload Protector :	No
Ambient Temperature :	40 °C	Drive End Bearing Size :	6205
Opp Drive End Bearing Size :	6203	UL :	Recognized
CSA :	Y	CE :	Y
IP Code :	43

Technical Specifications

Electrical Type :	Squirrel Cage Inverter Rated	Starting Method :	Line Or Inverter
Poles :	4	Rotation :	Reversible
Mounting :	Rigid base	Motor Orientation :	Horizontal
Drive End Bearing :	Ball	Opp Drive End Bearing :	Ball
Frame Material :	Rolled Steel	Shaft Type :	T
Overall Length :	12.93 in	Frame Length :	7.00 in
Shaft Diameter :	0.875 in	Shaft Extension :	2.38 in
Assembly/Box Mounting :	F1 Only	UPC :	722856016430
Weight :	39.00 LB

• XRI® GENERAL PURPOSE MOTORS THREE PHASE, TOTALLY ENCLOSED MOTORS

• APPLICATIONS: General purpose use on compressors, pumps, conveyors, blowers, and other machinery in dirty and dusty environments. Substantial energy savings can be realized when using these high efficiency motors. Guaranteed efficiencies offer an eXtra return on your Investment when using these premium efficiency motors on high cycle or long run time applications.

• FEATURES:

• Meets or exceeds NEMA Premium® efficiencies

• Suitable for use on a VFD. 10:1 variable torque and constant torque, as noted

• 1.15 service factor on sinewave (except as noted), 1.0 service factor on IGBT power • Bearing Current Protection (BCP), as noted

• Frame constructions are heavy gauge steel, cast iron or aluminum, as noted

• Class F Insulation (except as noted) • Ball bearings (except as noted)

• 60/50 hertz at next lower horsepower, as noted

• Motors accept C-Face kits, as noted

• Design B, except as noted

• Two year warranty on non bold catalog numbers

• Three year warranty on bold blue catalog numbers

• UL recognized, CSA certified, and CE mark

• Model 143TTFR16040
