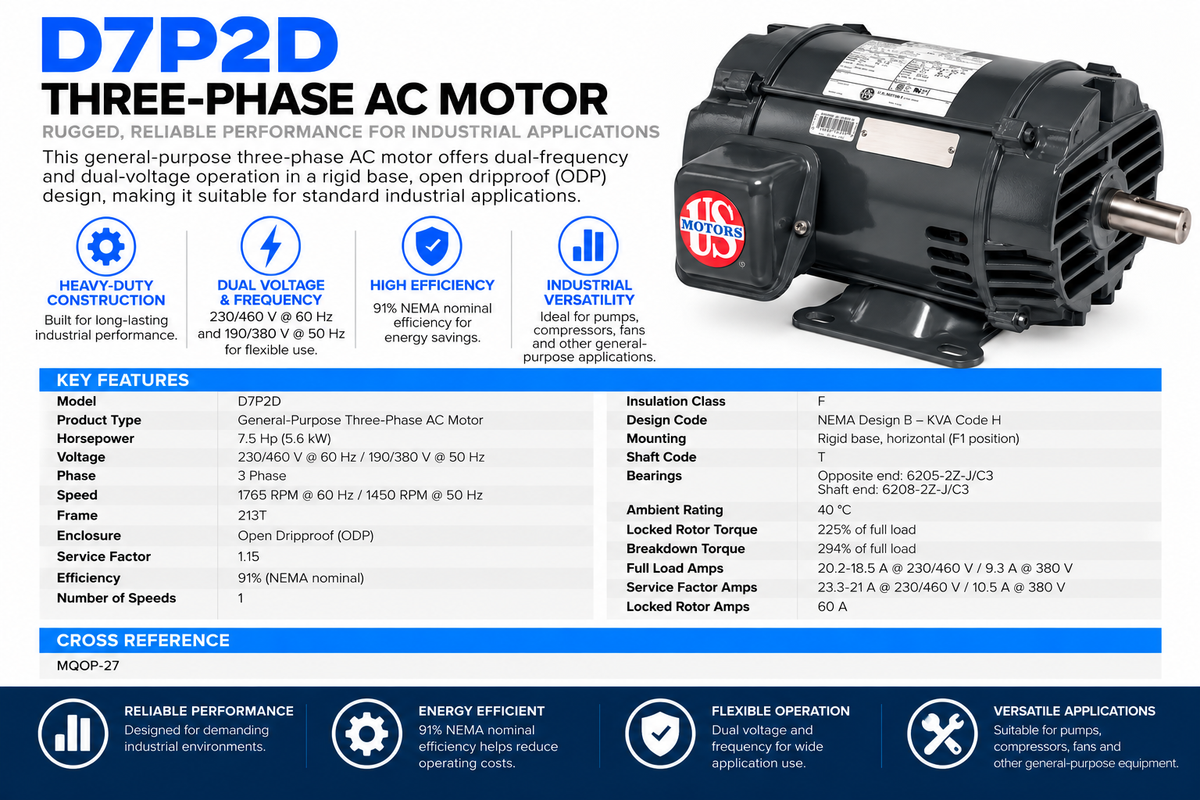

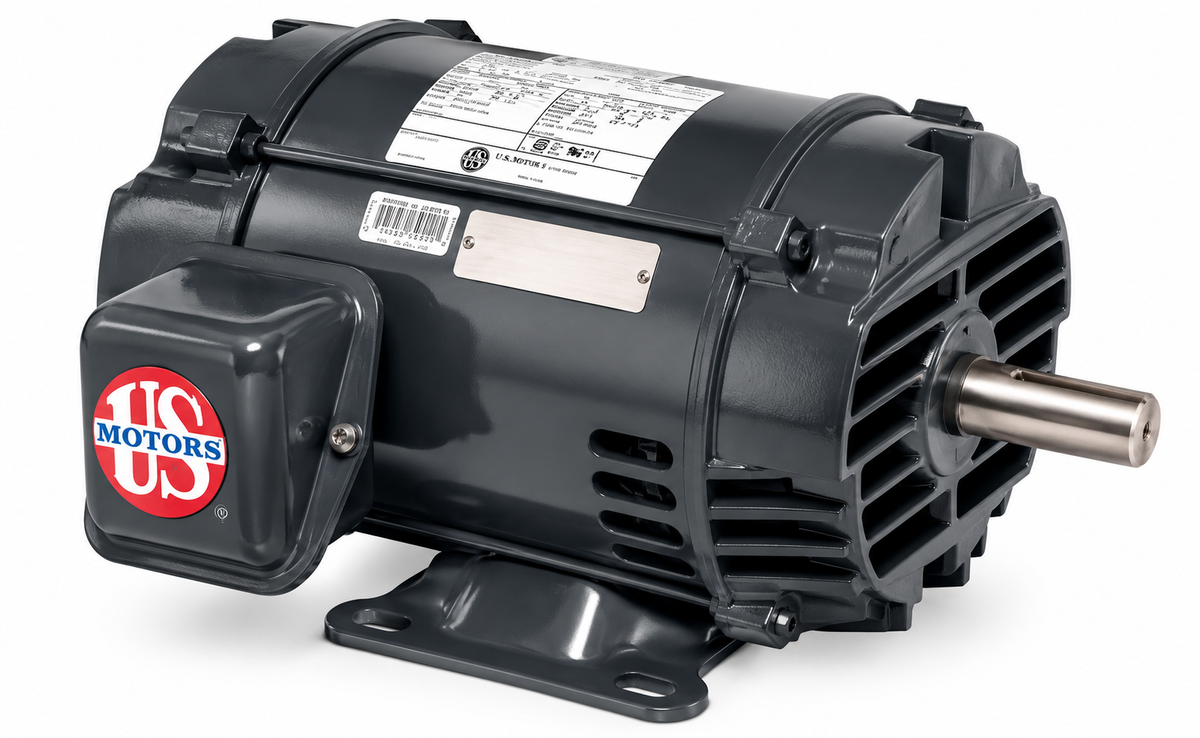

D7P2D, 7.5Hp (5.6 kW), 1765/1450 RPM, 230/460 V @ 60 Hz / 190/380 V @ 50 Hz, 3 Ph, ODP, Frame 213T, R341

This general-purpose three-phase AC motor offers dual-frequency and dual-voltage operation in a rigid base, open dripproof (ODP) design, suitable for standard industrial applications.

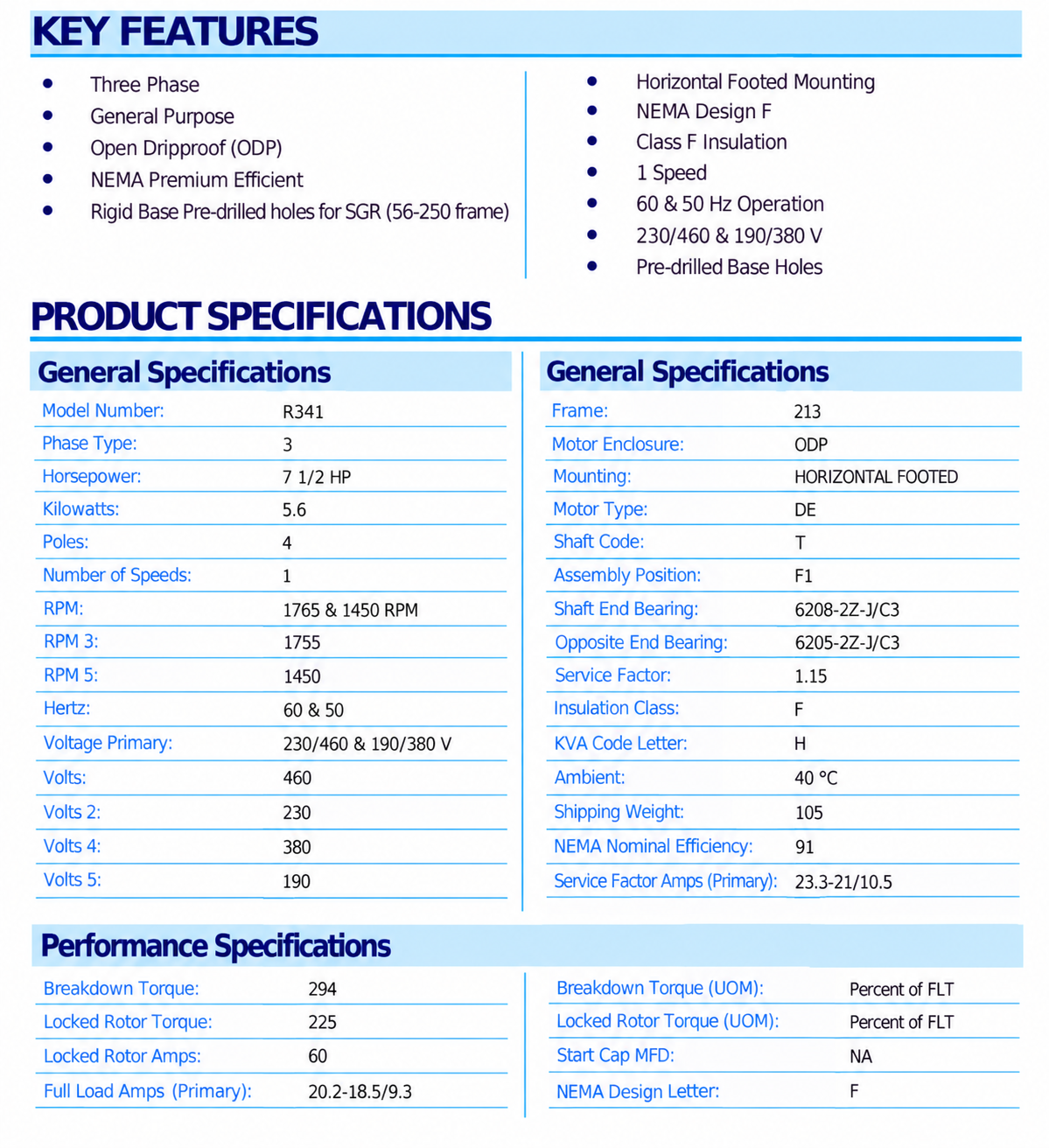

KEY FEATURES

• Model: D7P2D

• Product Type: General-purpose three-phase AC motor

• Horsepower: 7.5 Hp (5.6 kW)

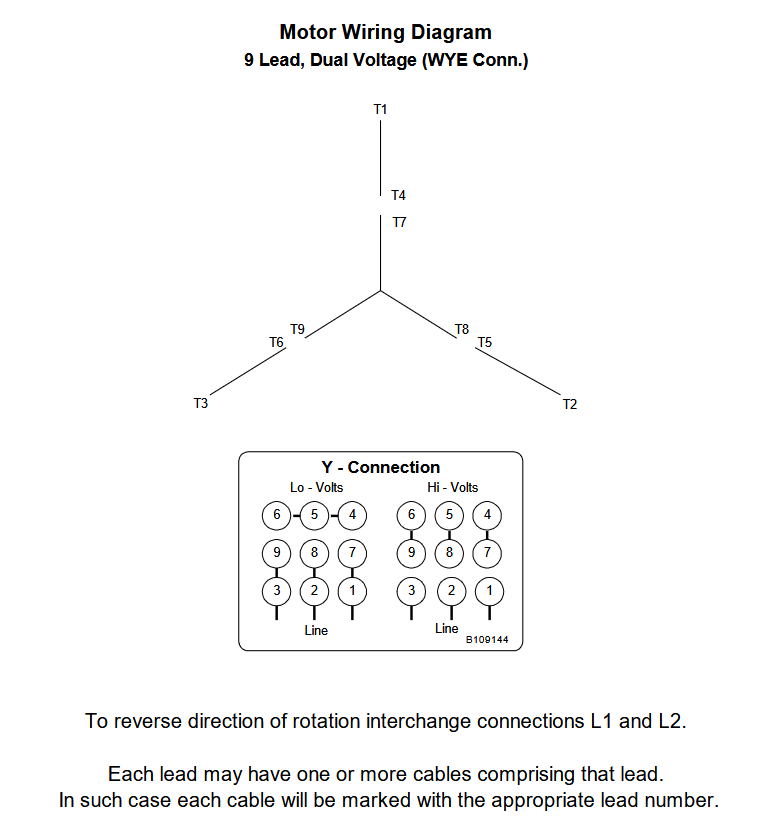

• Voltage: 230/460 V @ 60 Hz / 190/380 V @ 50 Hz – 3 Phase

• Speed: 1765 RPM @ 60 Hz / 1450 RPM @ 50 Hz

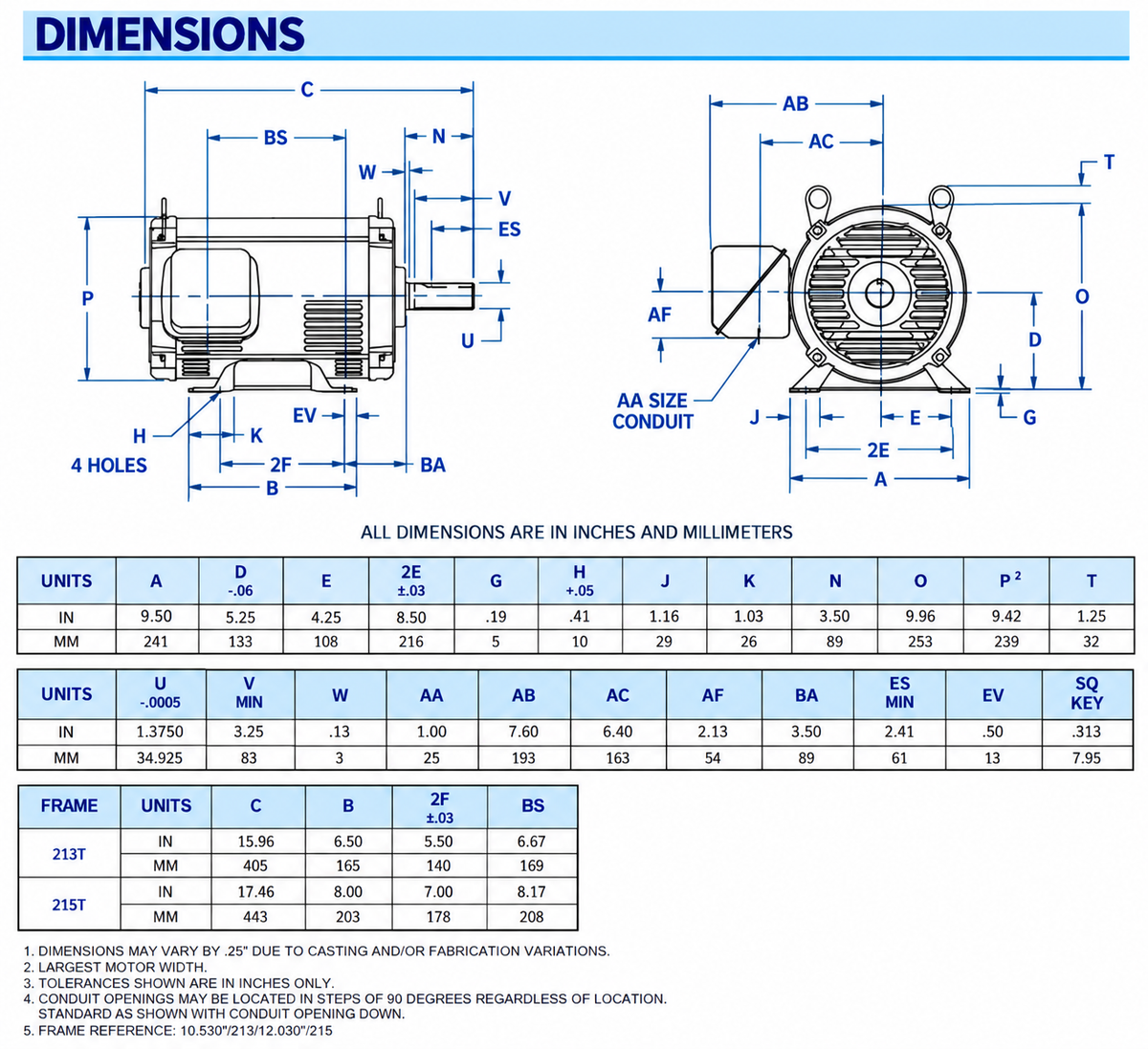

• Frame: 213T

• Enclosure: Open Dripproof (ODP)

• Service Factor: 1.15

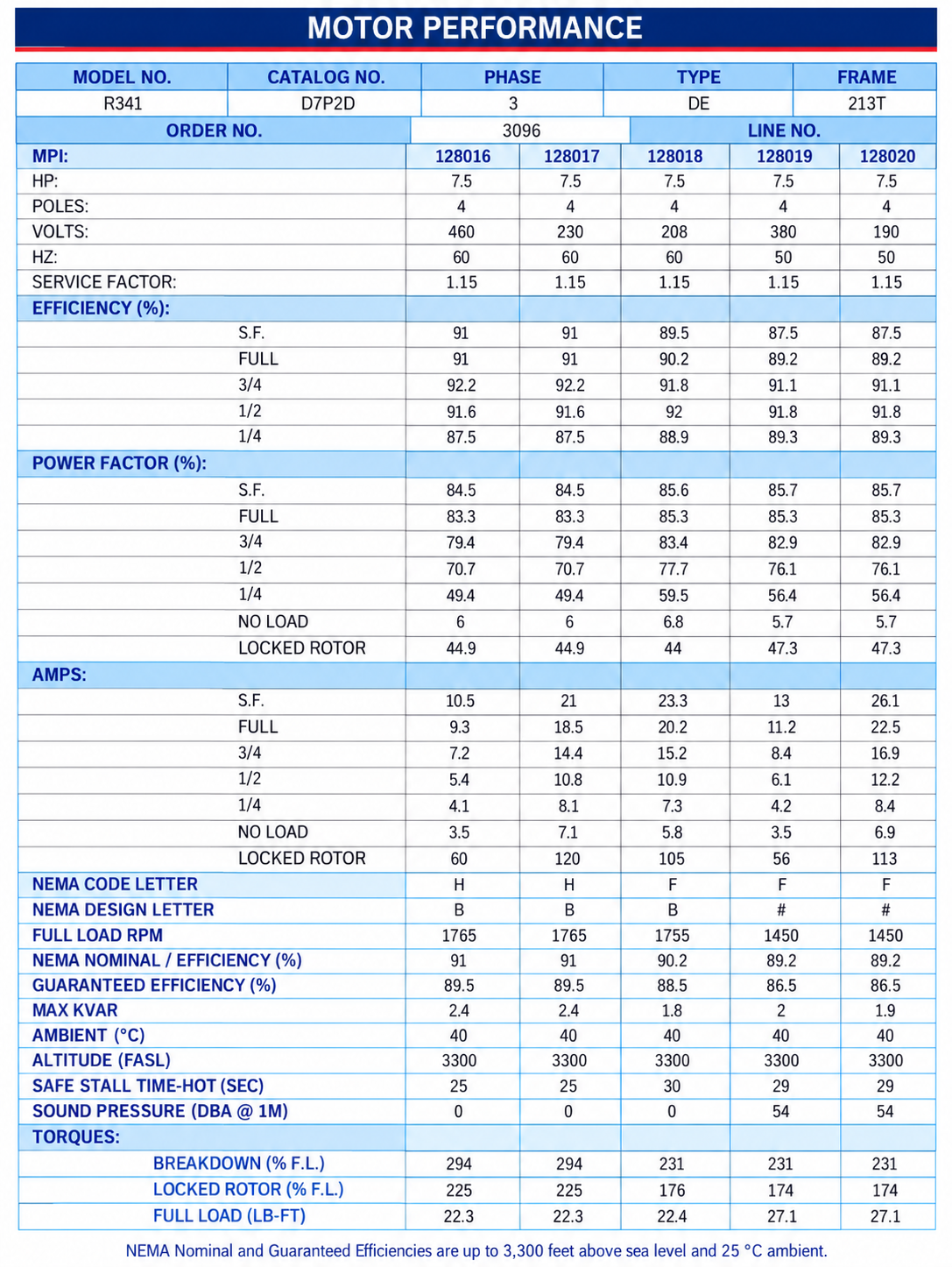

• Efficiency: 91% (NEMA nominal)

• Number of Speeds: 1

• Insulation Class: F

• Design Code: NEMA Design B – KVA Code H

• Mounting: Rigid base, horizontal (F1 position)

• Shaft: Code T

• Bearings: Opposite end: 6205‑2Z‑J/C3; Shaft end: 6208‑2Z‑J/C3

• Ambient Rating: 40 °C

• Locked Rotor Torque: 225% of full load

• Breakdown Torque: 294% of full load

• Full Load Amps: 20.2‑18.5 A @ 230/460 V / 9.3 A @ 380 V

• Service Factor Amps: 23.3‑21 A @ 230/460 V / 10.5 A @ 380 V

• Locked Rotor Amps: 60 A

CROSS REFERENCE

• MQOP-27
