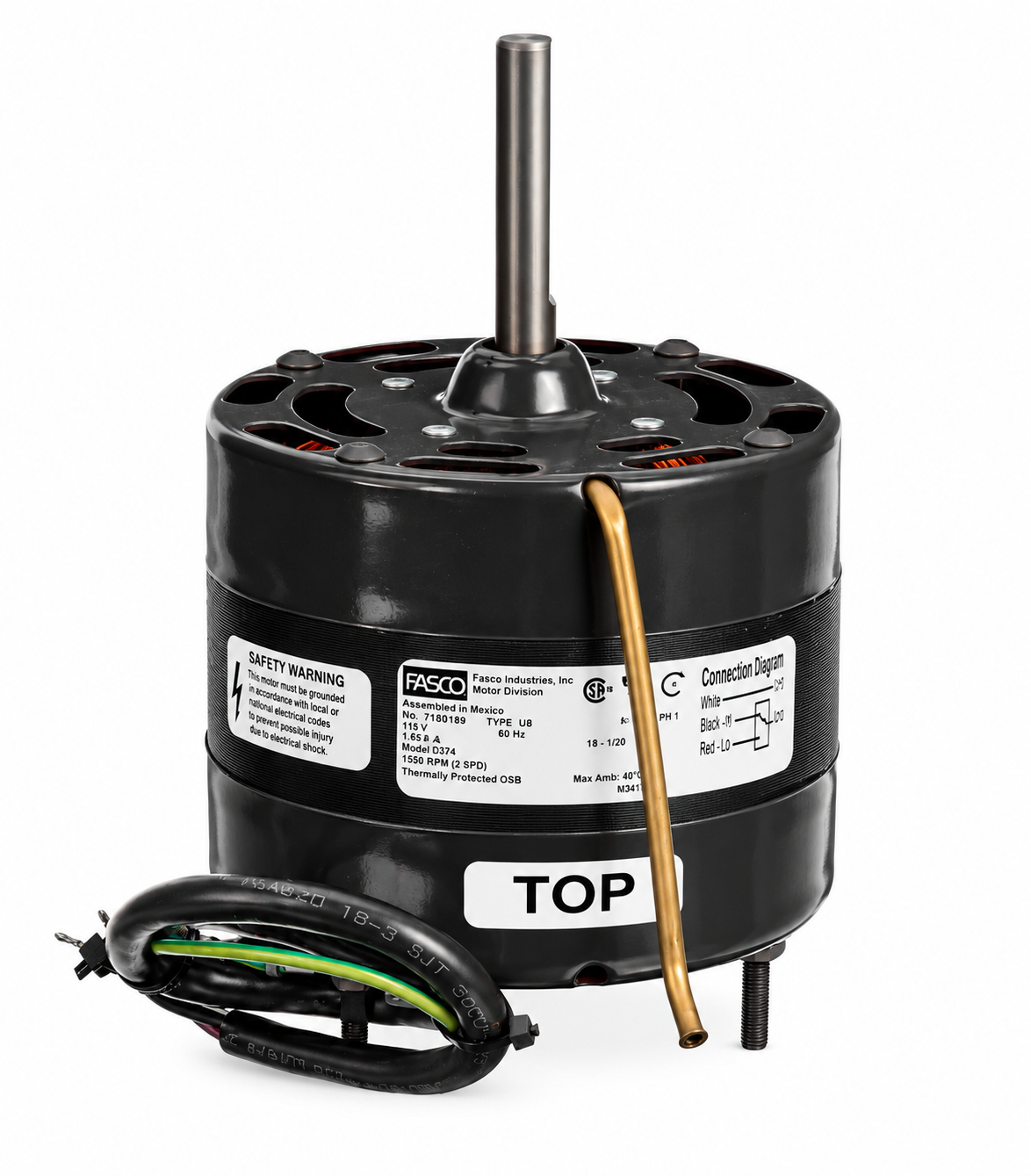

D374, 1/8 Hp – 1/20Hp, 1500 RPM, 115 V, 1 Ph, 60 Hz, Open Air Over (OAO), Frame 4.4"

This compact single-phase shaded‑pole fan and blower motor is designed for HVAC and general-purpose applications, offering two speeds and thermal protection in a small 4.4‑inch frame with open air‑over enclosure.

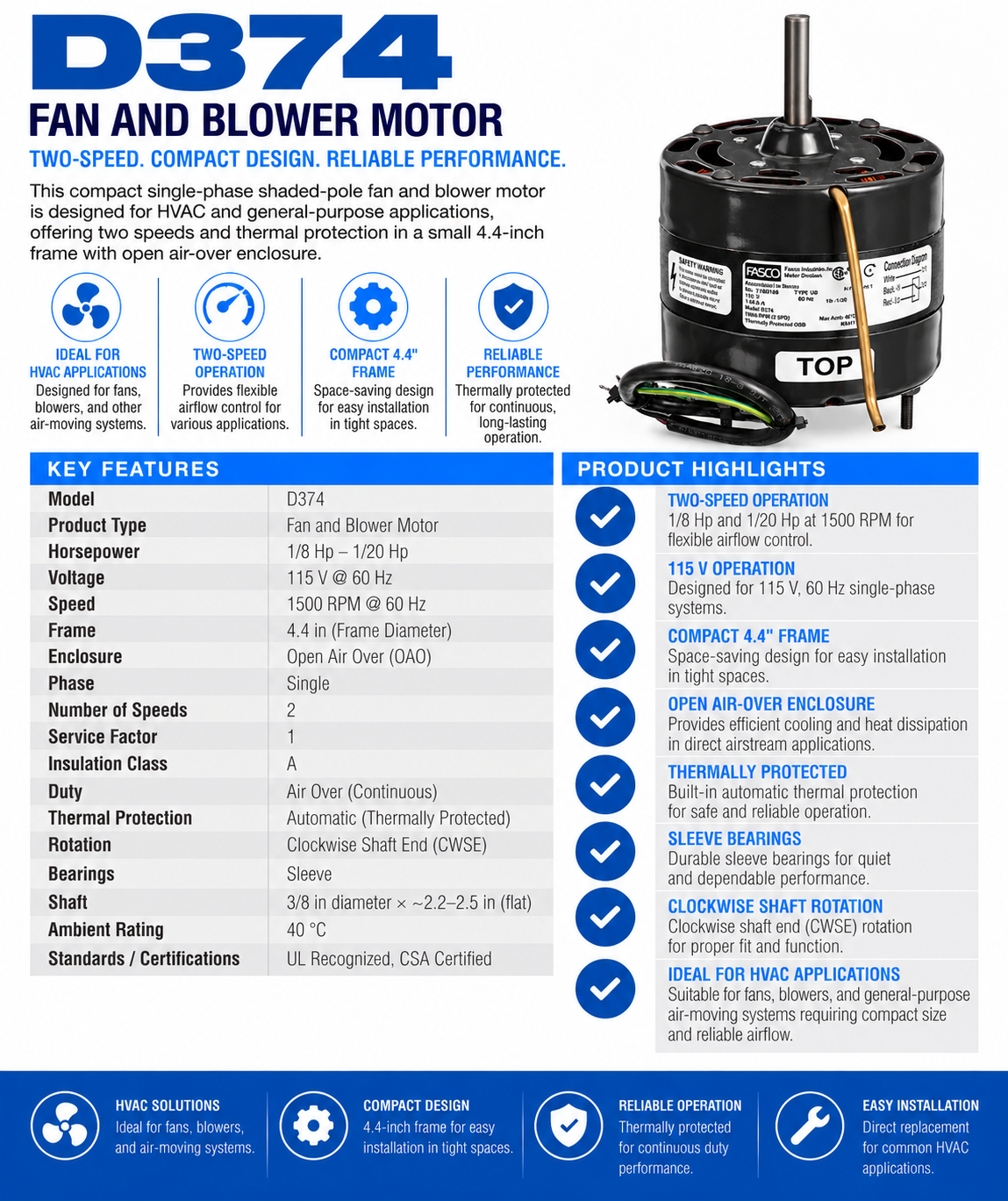

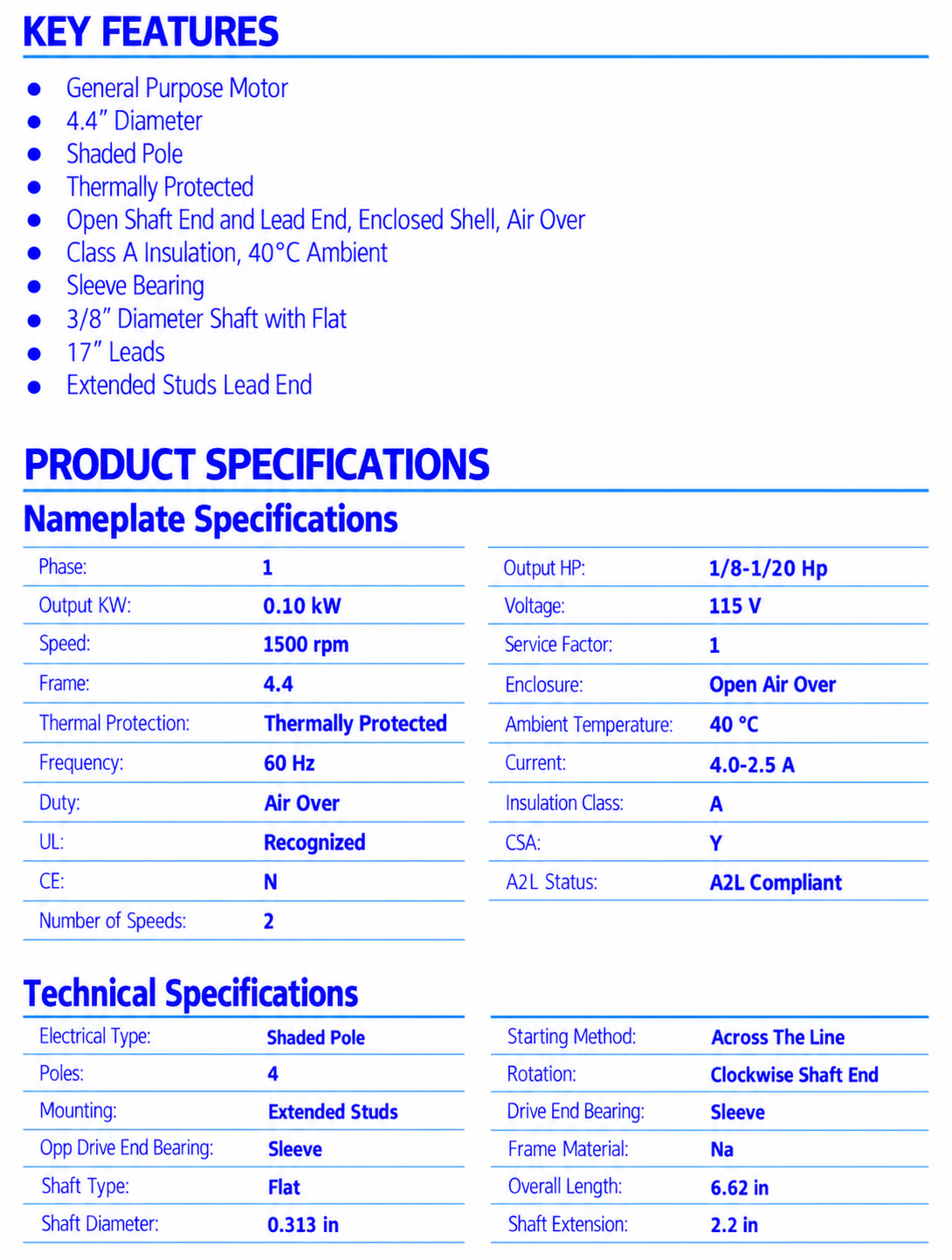

KEY FEATURES

• Model: D374

• Product Type: Fan and Blower Motor

• Horsepower: 1/8 Hp – 1/20 Hp

• Voltage: 115 V @ 60 Hz

• Speed: 1500 RPM @ 60 Hz

• Frame: 4.4" Diameter

• Enclosure: Open Air Over (OAO)

• Number of Speeds: 2

• Phase: Single

• Service Factor: 1

• Insulation Class: A

• Thermal Protection: Automatic

• Rotation: CWSE (Clockwise Shaft End)

• Bearing Type: Sleeve

• Shaft: 3/8" Diameter × ~2.2–2.5" Length, with flat

• Ambient Rating: 40 °C

• Standards: UL Recognized, CSA Certified
