D32P2D, 1.5Hp, 1750 RPM, 208-230/460V, 3PH, 60Hz, ODP, Frame 145T, FC92

D32P2D, 1.5Hp, 1750 RPM, 208-230/460V, 3PH, 60Hz, ODP, Frame 145T, FC92

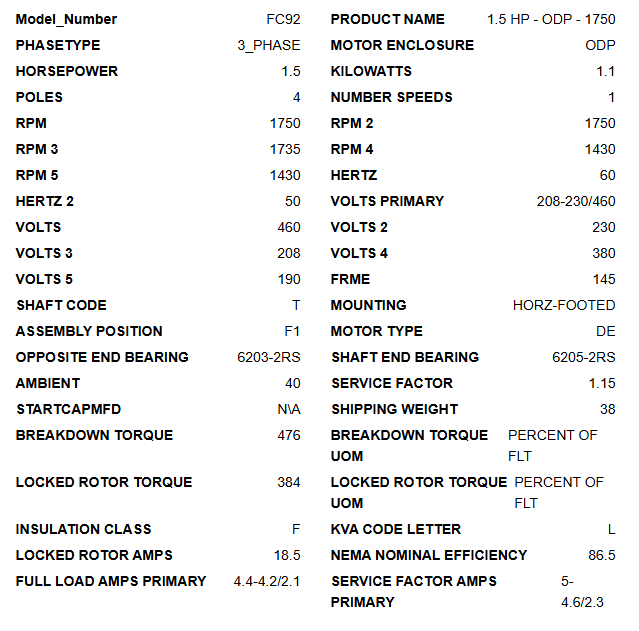

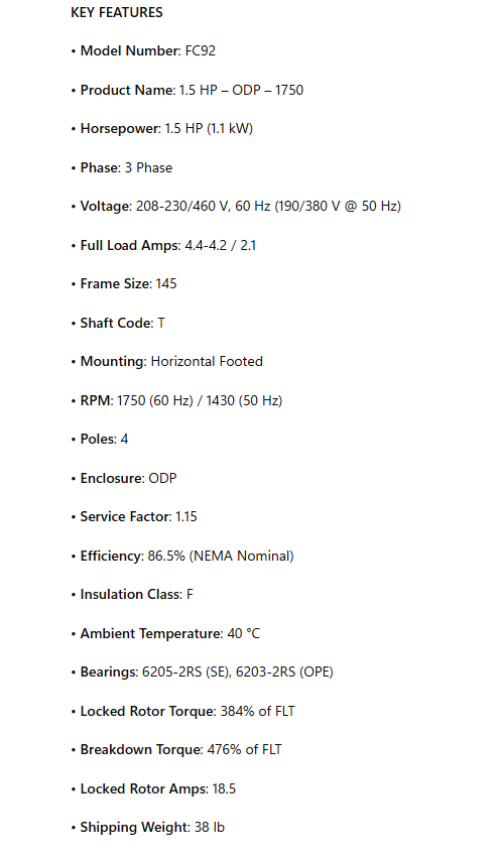

KEY FEATURES

• Model Number: FC92

• Product Name: 1.5 HP – ODP – 1750

• Horsepower: 1.5 HP (1.1 kW)

• Phase: 3 Phase

• Voltage: 208-230/460 V, 60 Hz (190/380 V @ 50 Hz)

• Full Load Amps: 4.4-4.2 / 2.1

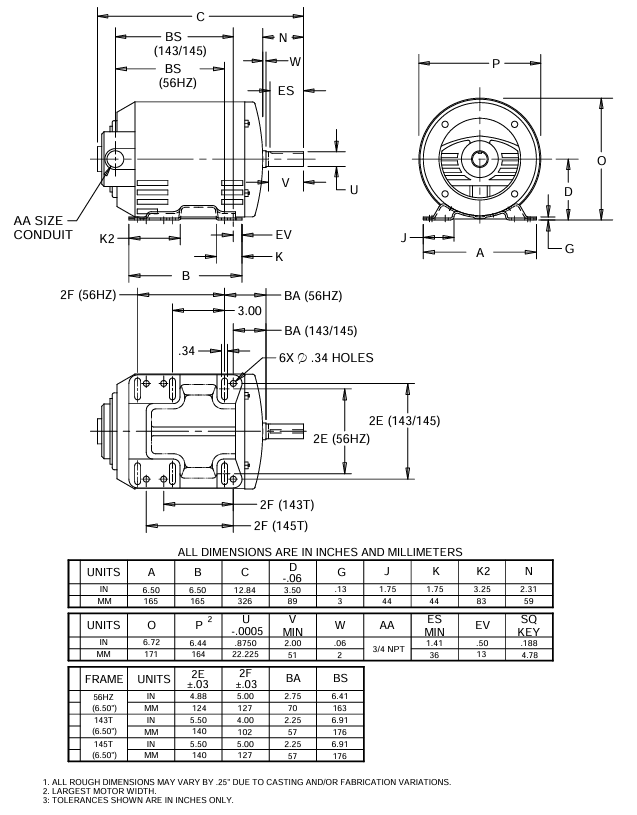

• Frame Size: 145

• Shaft Code: T

• Mounting: Horizontal Footed

• RPM: 1750 (60 Hz) / 1430 (50 Hz)

• Poles: 4

• Enclosure: ODP

• Service Factor: 1.15

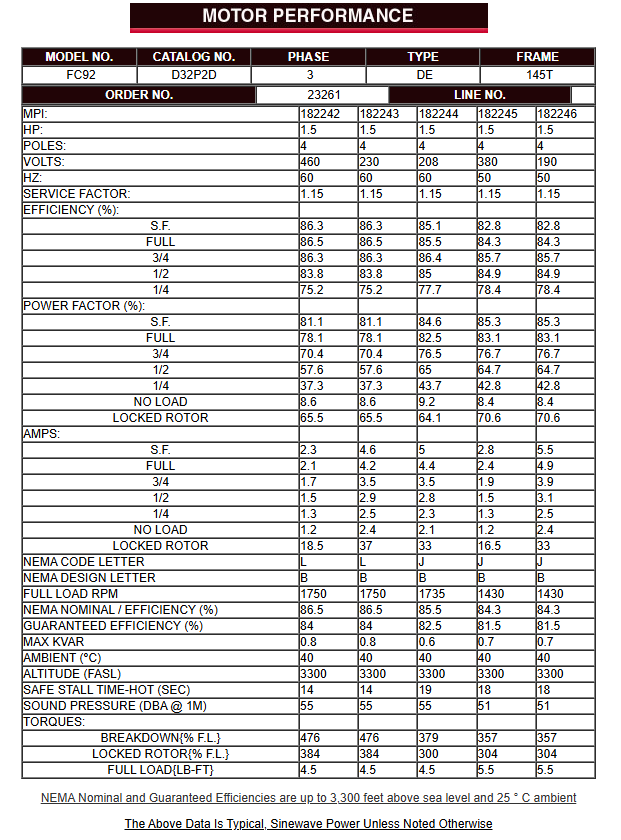

• Efficiency: 86.5% (NEMA Nominal)

• Insulation Class: F

• Ambient Temperature: 40 °C

• Bearings: 6205-2RS (SE), 6203-2RS (OPE)

• Locked Rotor Torque: 384% of FLT

• Breakdown Torque: 476% of FLT

• Locked Rotor Amps: 18.5

• Shipping Weight: 38 lb
