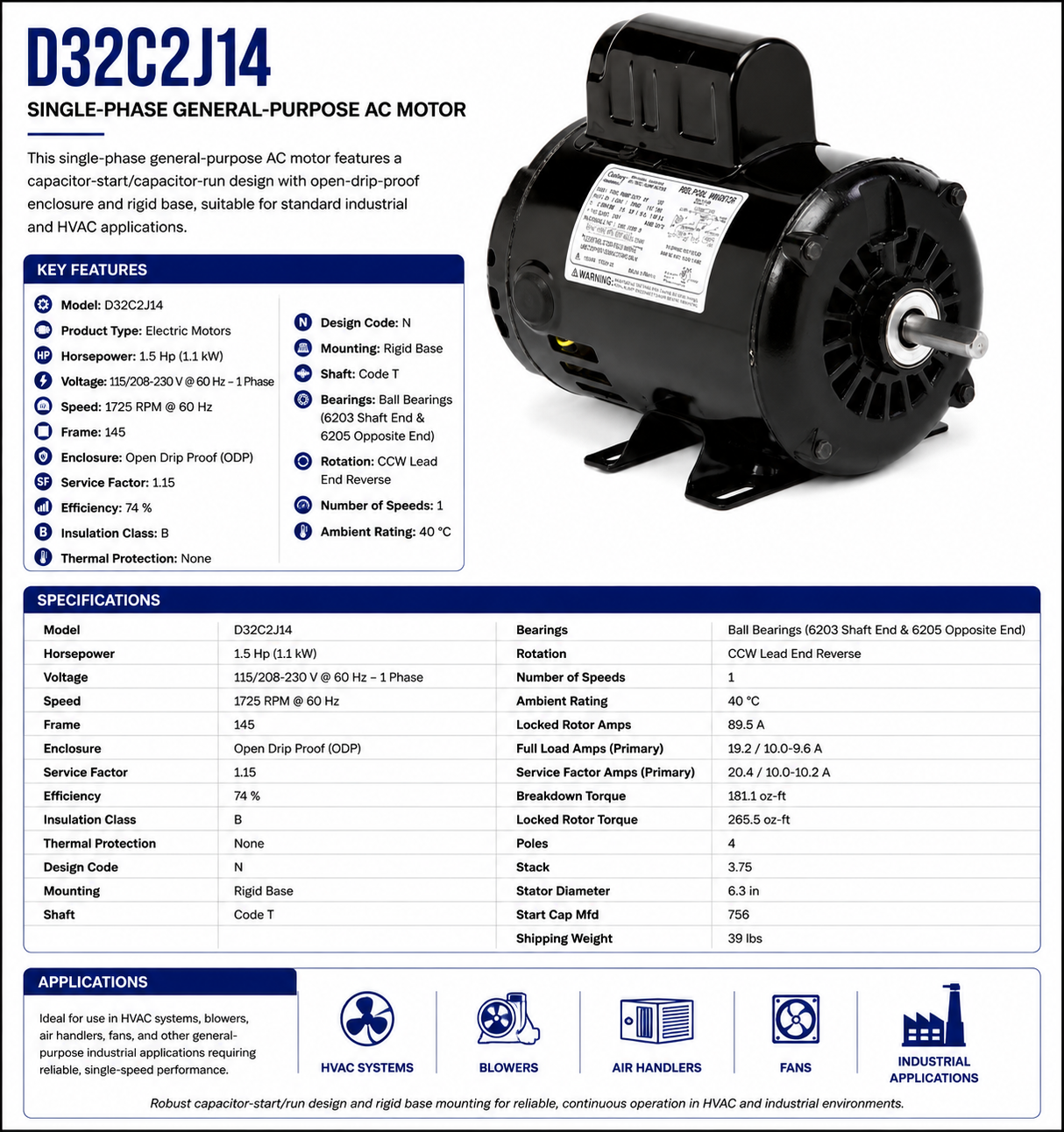

D32C2J14, 1.5 Hp, 1725 RPM, 115/208‑230 V, 1 Ph, 60 Hz, ODP, Frame 145, C063JFF5330012B

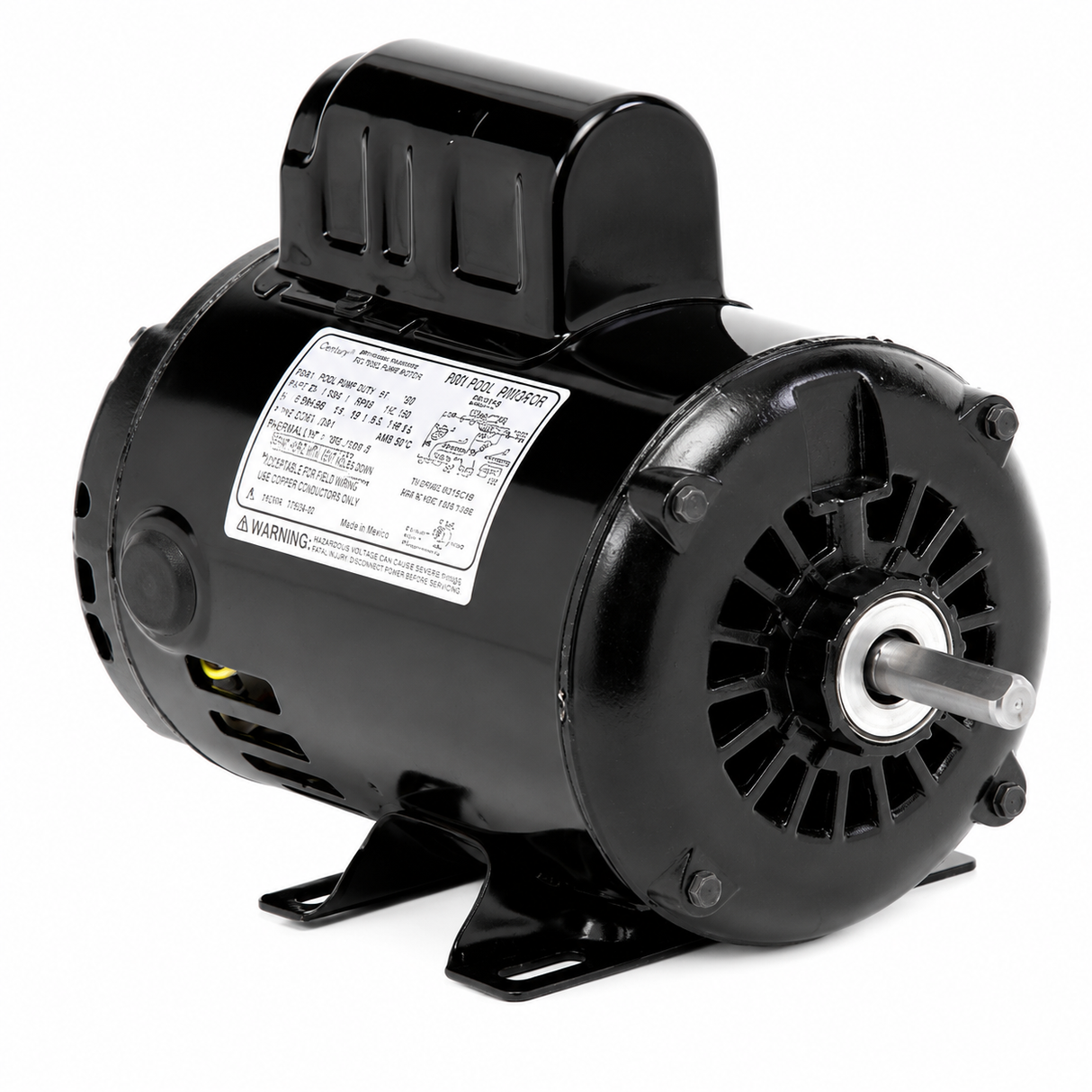

This single‑phase general‑purpose AC motor features a capacitor‑start/capacitor‑run design with open‑drip‑proof enclosure and rigid base, suitable for standard industrial and HVAC applications.

KEY FEATURES

• Model: D32C2J14

• Product Type: Electric Motors

• Horsepower: 1.5 Hp (1.1 kW)

• Voltage: 115/208‑230 V @ 60 Hz – 1 Phase

• Speed: 1725 RPM @ 60 Hz

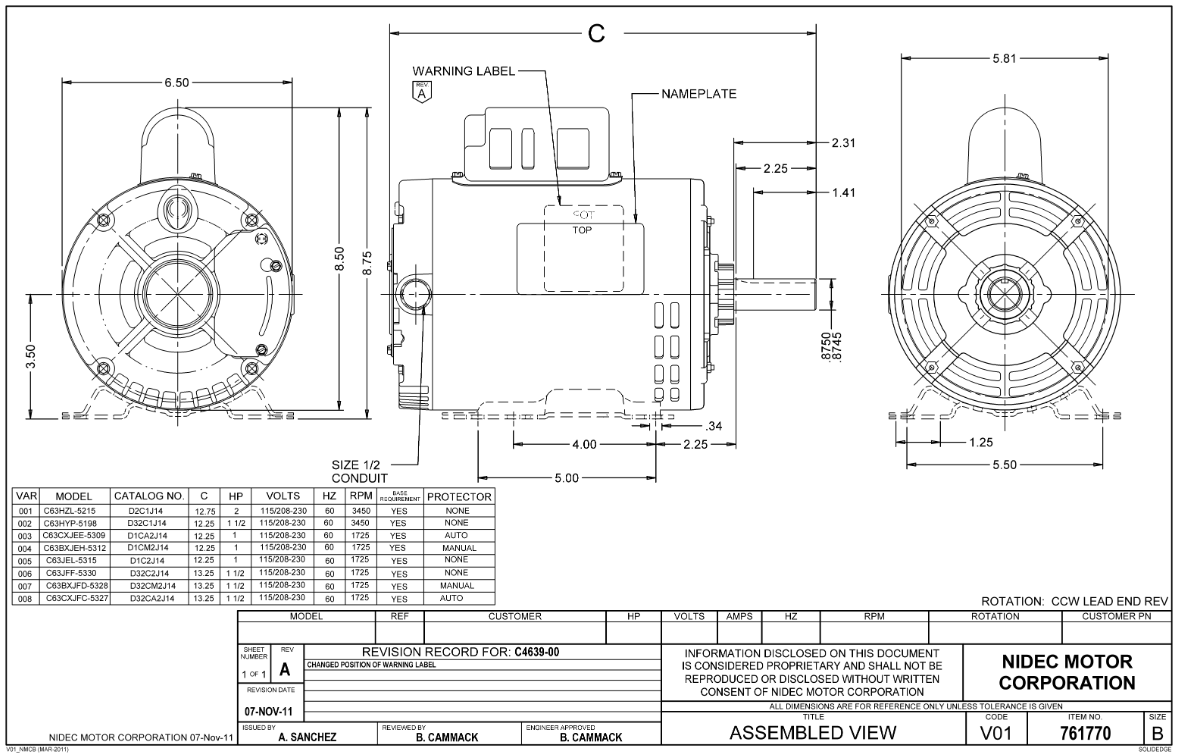

• Frame: 145

• Enclosure: Open Drip Proof (ODP)

• Service Factor: 1.15

• Efficiency: 74 %

• Insulation Class: B

• Thermal Protection: None

• Design Code: N

• Mounting: Rigid Base

• Shaft: Code T

• Bearings: Ball Bearings (6203 Shaft End & 6205 Opposite End)

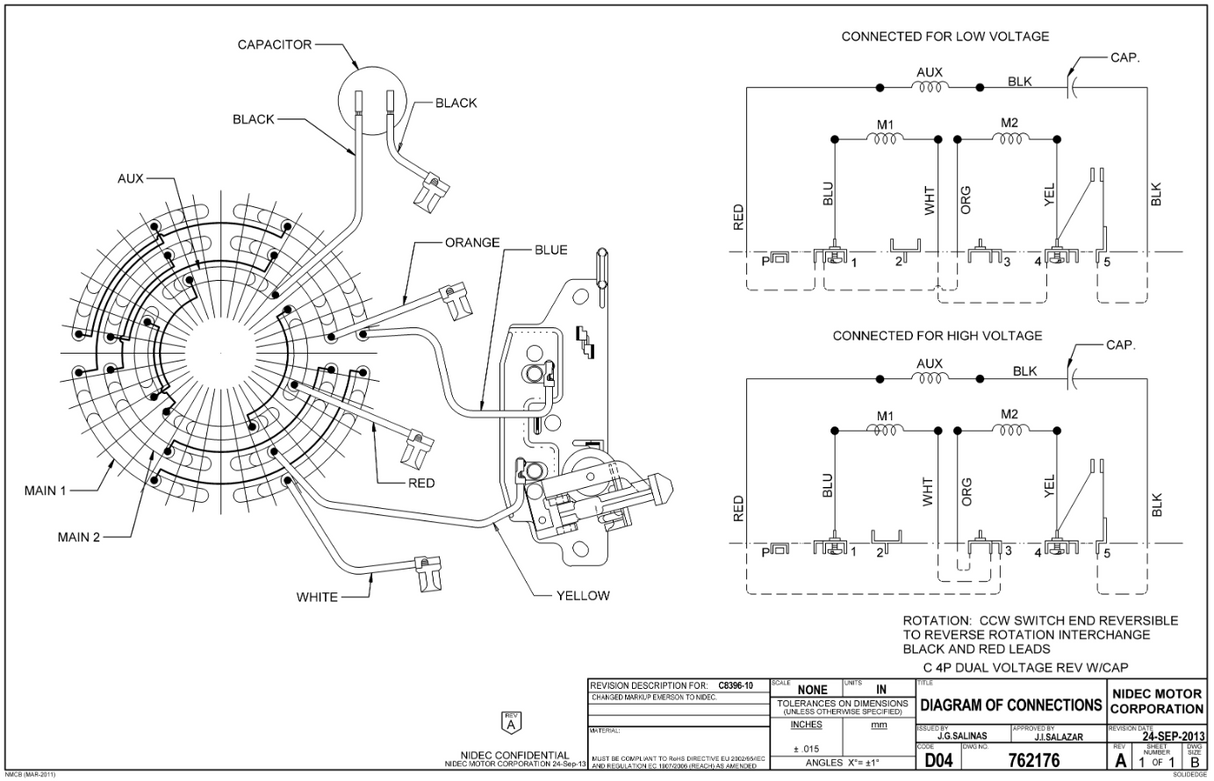

• Rotation: CCW Lead End Reverse

• Number of Speeds: 1

• Ambient Rating: 40 °C

• Locked Rotor Amps: 89.5 A

• Full Load Amps (Primary): 19.2 / 10.0‑9.6 A

• Service Factor Amps (Primary): 20.4 / 10.0‑10.2 A

• Breakdown Torque: 181.1 oz‑ft

• Locked Rotor Torque: 265.5 oz‑ft

• Poles: 4

• Stack: 3.75

• Stator Diameter: 6.3 in

• Start Cap Mfd: 756

• Shipping Weight: 39 lbs

The motor’s robust capacitor‑start/run design and rigid base mounting make it reliable for continuous HVAC and industrial use, while its open‑drip‑proof enclosure and ball‑bearing construction support durable operation in varied environments.
