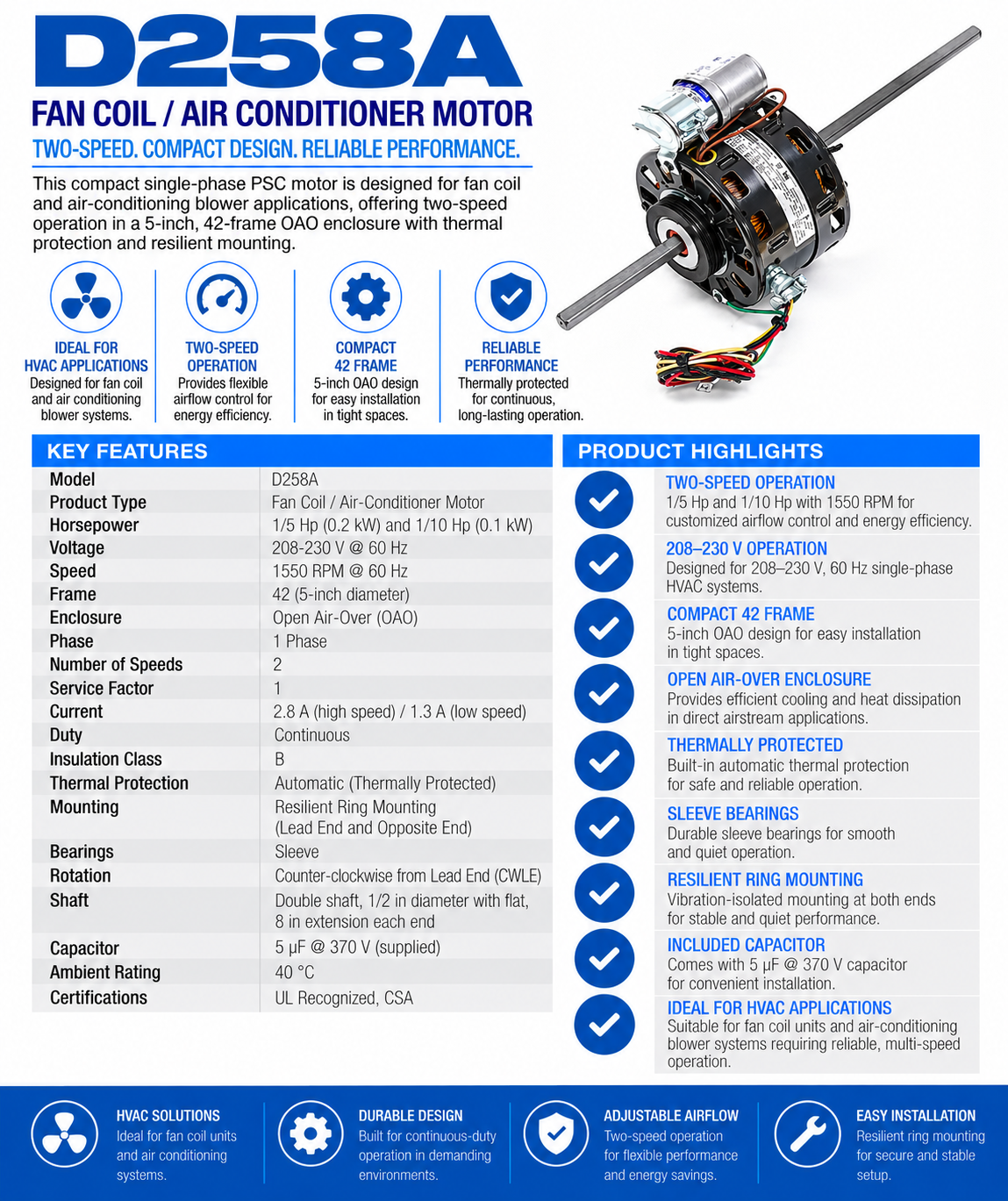

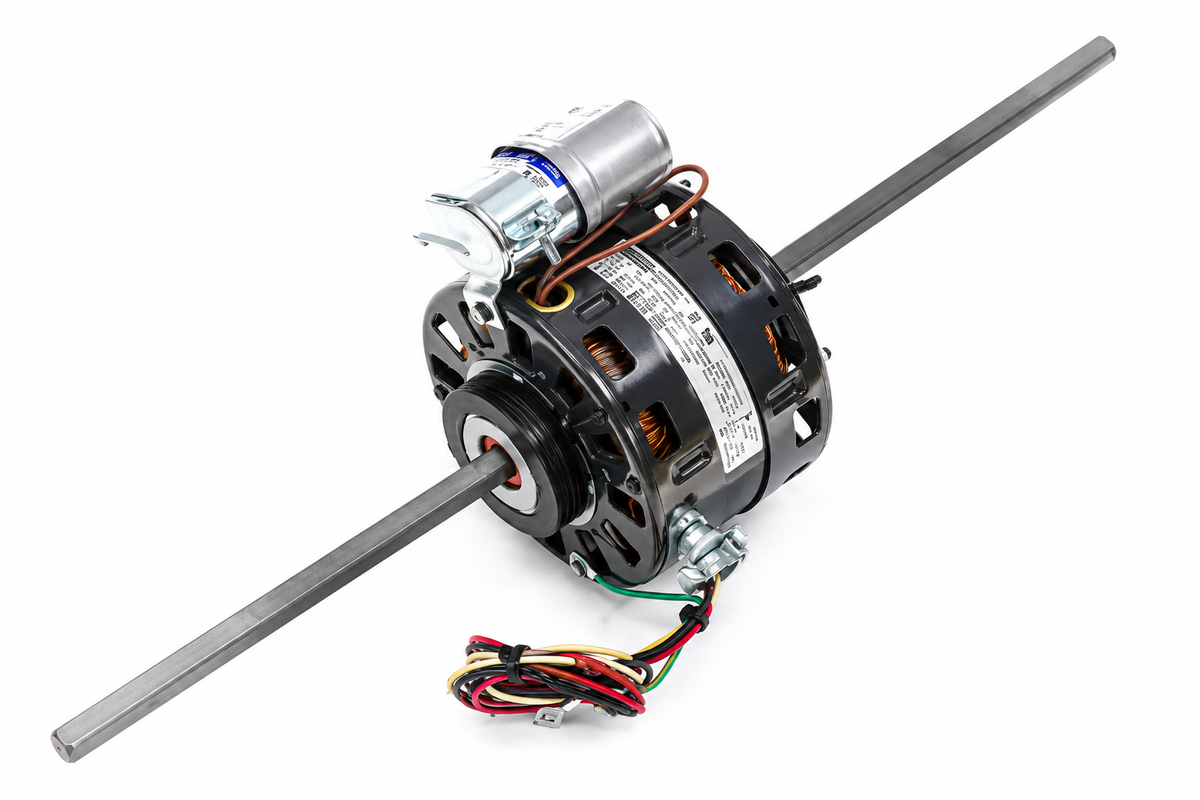

D258A, 1/5 ,1/10Hp, 1550 RPM, 208‑230 V, 1 Ph, 60 Hz, Open Air‑Over (OAO), Frame 42

This compact single‑phase PSC motor is designed for fan coil and air‑conditioning blower applications, offering two‑speed operation in a 5‑inch, 42‑frame OAO enclosure with thermal protection and resilient mounting.

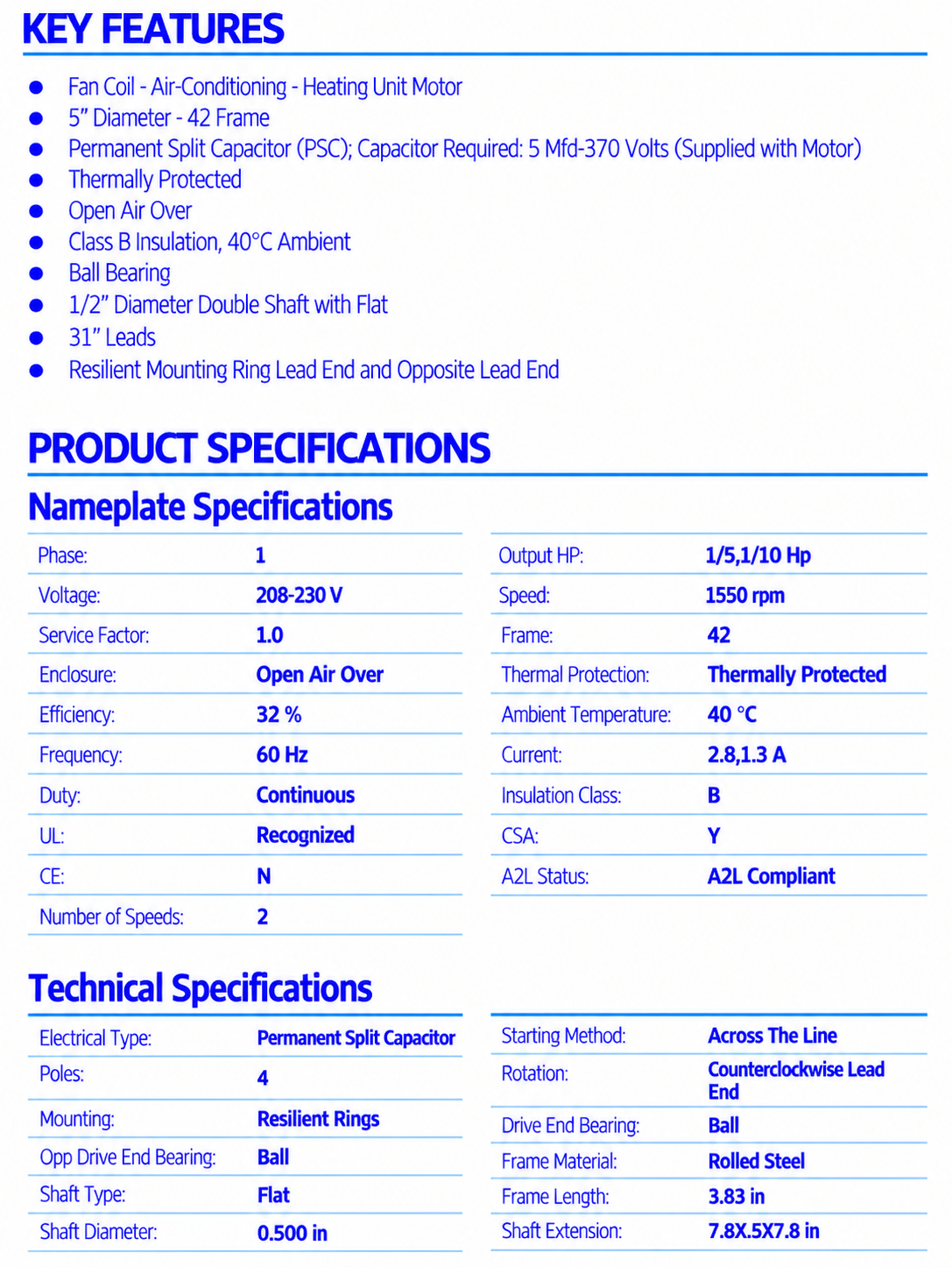

KEY FEATURES

• Model: D258A

• Product Type: Fan Coil / Air‑Conditioner Motor

• Horsepower: 1/5 Hp (0.2 kW) and 1/10 Hp (0.1 kW)

• Voltage: 208‑230 V @ 60 Hz

• Speed: 1550 RPM @ 60 Hz

• Frame: 42 (5‑inch diameter)

• Enclosure: Open Air‑Over (OAO)

• Service Factor: 1

• Current: 2.8 A (high speed) / 1.3 A (low speed)

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Automatic (thermally protected)

• Mounting: Resilient ring mounting (lead end and opposite end)

• Shaft: Double shaft, 1/2‑in diameter with flat, 8‑in extension each end

• Bearings: Sleeve bearings

• Rotation: Counter‑clockwise from lead end (CWLE)

• Capacitor: 5 µF @ 370 V (supplied)

• Ambient Rating: 40 °C

• Certifications: UL Recognized, CSA
