THOMSON | SKU:
EMN-016197
Sold out

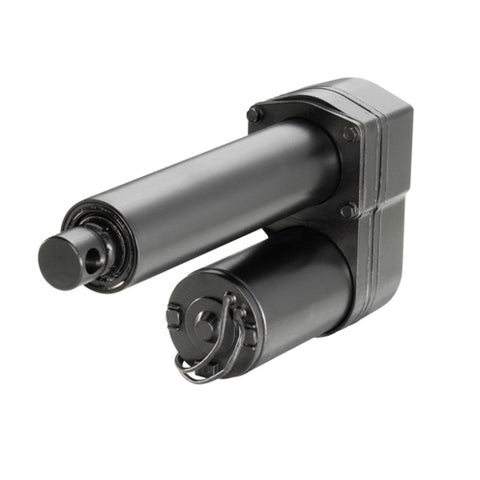

D24-20B5-12, Actuator, 24 VDC Input Voltage,12'' in Stroke Length, 1000 lbs Load Capacity
Regular price
$2,057.62
Unit price
/
Unavailable
D24-20B5-12, Actuator, 24 VDC Input Voltage,12'' in Stroke Length, 1000 lbs Load Capacity is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
Description
Description
D24-20B5-12,
| Caractéristiques | Valeur |
|---|---|
| Anti-rotation | Non |
| Brake | Frein de maintien intégré |
| Câble et connecteur | Packard Electric 56 series 2984883 with terminal 2962987 |
| Câble et connecteur | Connector |
| Cable length | 7 in |
| End Play, Max | 0.04 in |
| IP Rating | IP66 |
| Manual Override | Non |
| Matériau | Copper; Steel; Zinc; Aluminum; Plastic |
| Motor Control | None |
| Nominal Stroke | 12 in |
| Position de l'adaptateur | Les deux adaptateurs à 0° (standard) |
| Protection, End-of-stroke | Clutch |
| Protection, Overload | Clutch |
| Réducteur à engrenages | 20:1 |
| Rétroaction | Sans rétroaction |
| Screw Type | À billes |
| Temperature Max | 150 °F |
| Temperature Min | -15 °F |
| Tension | 24 V CC |
| Weight | 12.7 lb |
| Performance | Valeur |
|---|---|
| Appel de courant sans charge/à charge max. | 0.3 A / 7 A |
| Charge, dynamique | 1000 lbf |
| Charge, statique max. | 3000 lbf |
| Duty Cyle | 25 % |
| Restraining Torque | 100 in-lbs |
| Vitesse de déplacement à pleine charge | 0.45 in/s |
| Vitesse de déplacement sans charge | 0.6 in/s |
