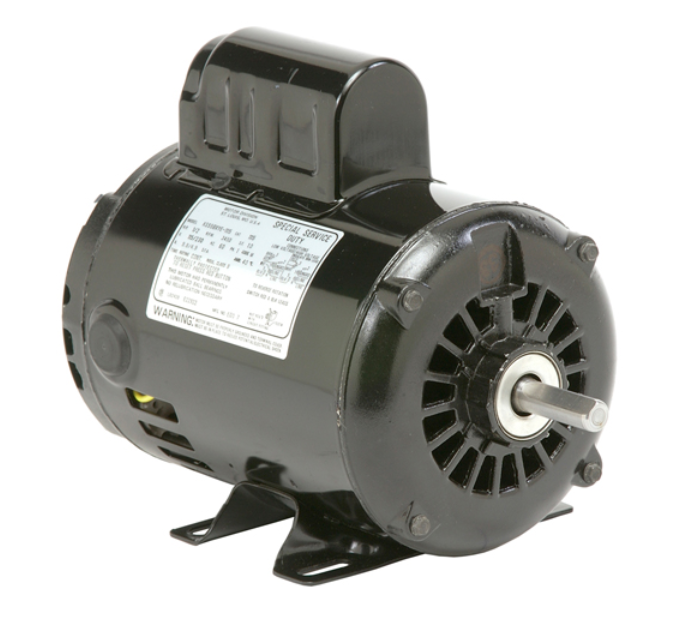

D1CPM2PH, General Purpose Capacitor Start, 1Hp, 1725 RPM, 115/230V, 1PH, 60Hz, Frame 56H, ODP, T063CNN2153012B

D1CPM2PH, General Purpose Capacitor Start, 1Hp, 1725 RPM, 115/230V, 1PH, 60Hz, Frame 56H, ODP, T063CNN2153012B

KEY FEATURES

• Model Number: T063CNN2153012B

• Product Name: Motor

• Phase: Single-Phase (1)

• Horsepower / kW: 1 HP / 0.8 kW

• Poles / Speed: 4 Poles – 1725 RPM

• Frequency: 60 Hz

• Voltage: 115 / 230 V

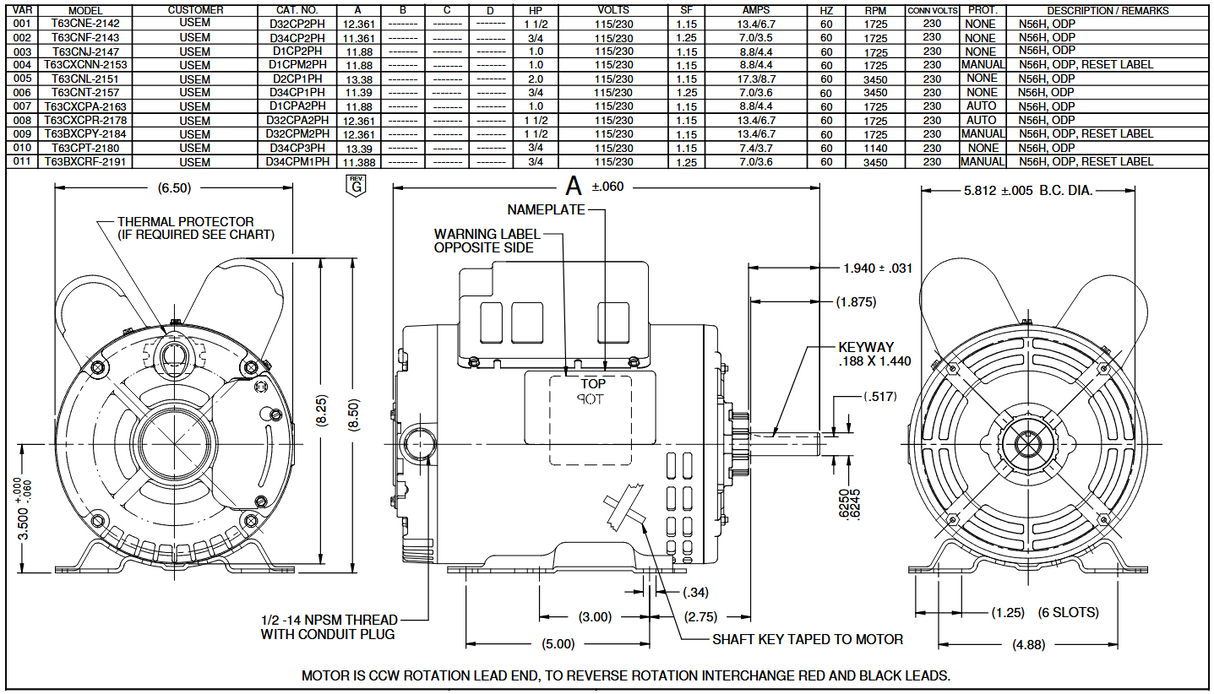

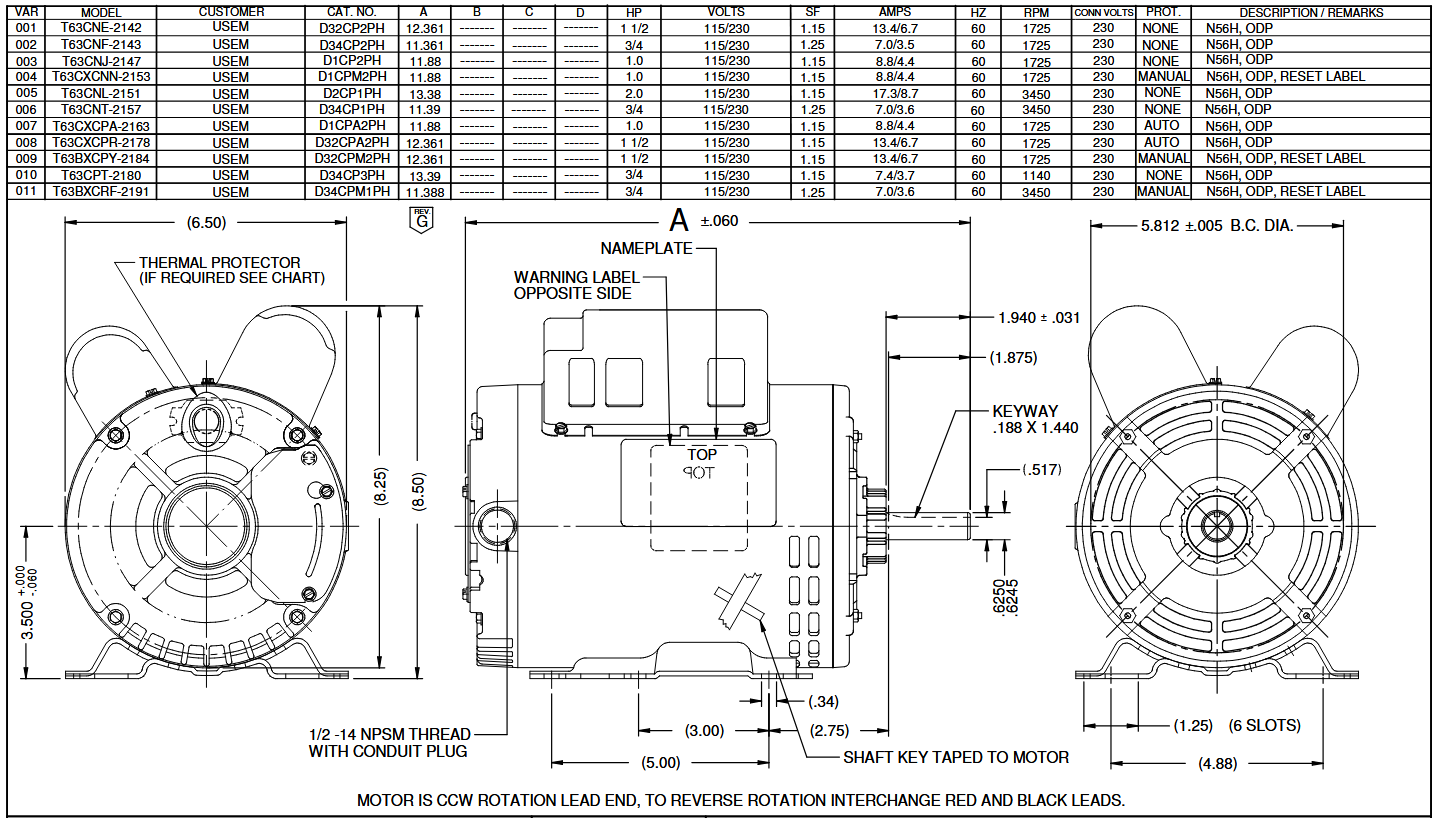

• Frame / Shaft Code: 56 / H

• Enclosure: ODP (Open Drip Proof)

• Mounting: Rigid

• Service Factor: 1.15

• Thermal Protection: Manual reset

• Capacitors: Run – 70 µF / 280 V, Start – 709 µF

• Insulation Class: B

• Efficiency (NEMA Nominal): 82.6 %

• Current: FLA 8.8 / 4.4 A – SFA 9.2 / 4.6 A – LRA 67.56 A

• Torque: Breakdown 117.7 oz-ft / Locked Rotor 217.4 oz-ft

• Bearings: 6203 (DE & ODE)

• Ambient Temp: 40 °C

• Weight: 31 lbs
