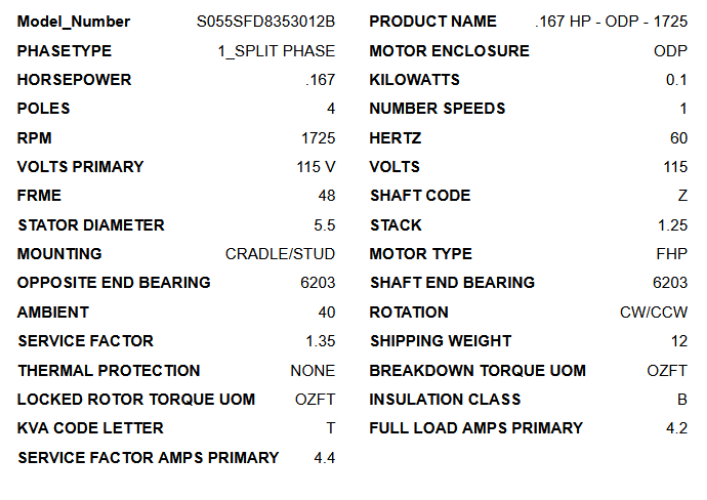

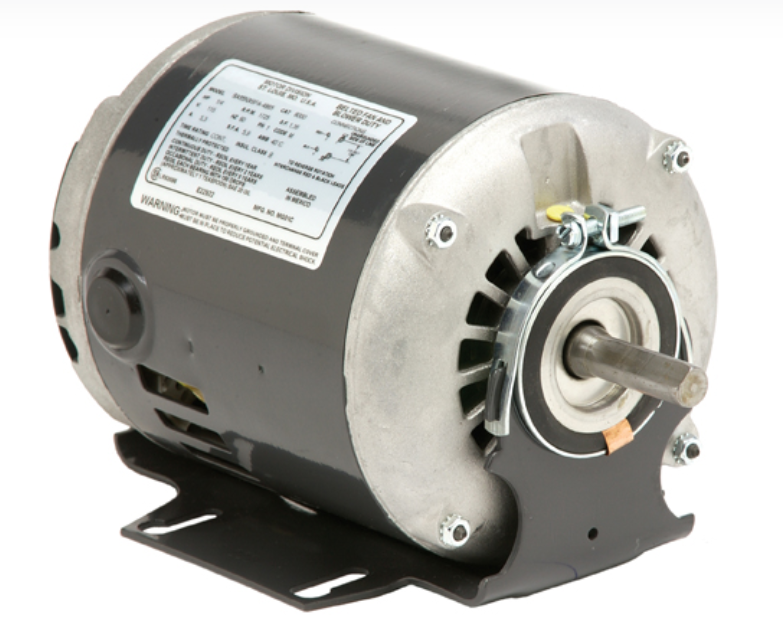

D16B2N4Z9, 1/6Hp, 1725 RPM, 115V, 1PH, 60Hz, Frame 48Z, ODP, S055SFD8353012B

D16B2N4Z9, 1/6Hp, 1725 RPM, 115V, 1PH, 60Hz, Frame 48Z, ODP, S055SFD8353012B

KEY FEATURES

• Model number: P063AGT1307015B

• Horsepower: 0.5 HP (0.4 kW)

• Voltage: 208-230/460 V

• Amperage: 2.0–1.9 / 1.0 A (FLA)

• Speed: 1725 RPM (60 Hz) / 1425 RPM (50 Hz)

• Phase: 3 (polyphase)

• Poles: 4

• Enclosure: ODP

• Frame: 56, rigid base

• Rotation: Reversible

• Service factor: 1.25

• Full load efficiency: 78.2 %

• Insulation class: F

• KVA code: L

• Bearings: 6203 (both ends)

• Torque: Breakdown – 105.7 oz.ft / Locked rotor – 43.56 oz.ft

• Locked rotor amps: 16.72

• Service factor amps: 2.2–2.2 / 1.1

• Thermal protection: None

• Ambient temperature: 40 °C
