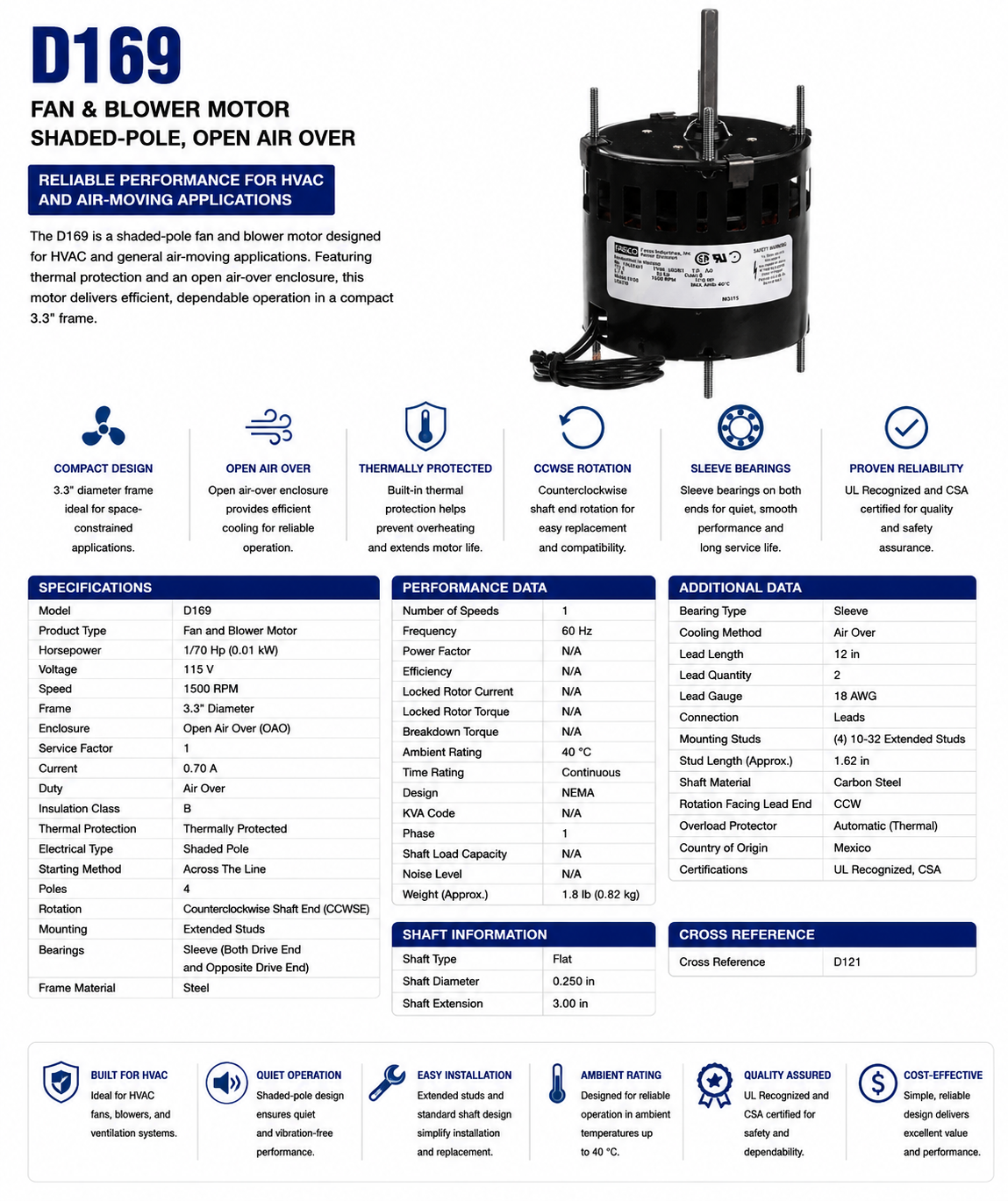

D169, 0.014Hp, 1500RPM, 115V, 1Ph, 60Hz, Open Air Over, Frame 3.3

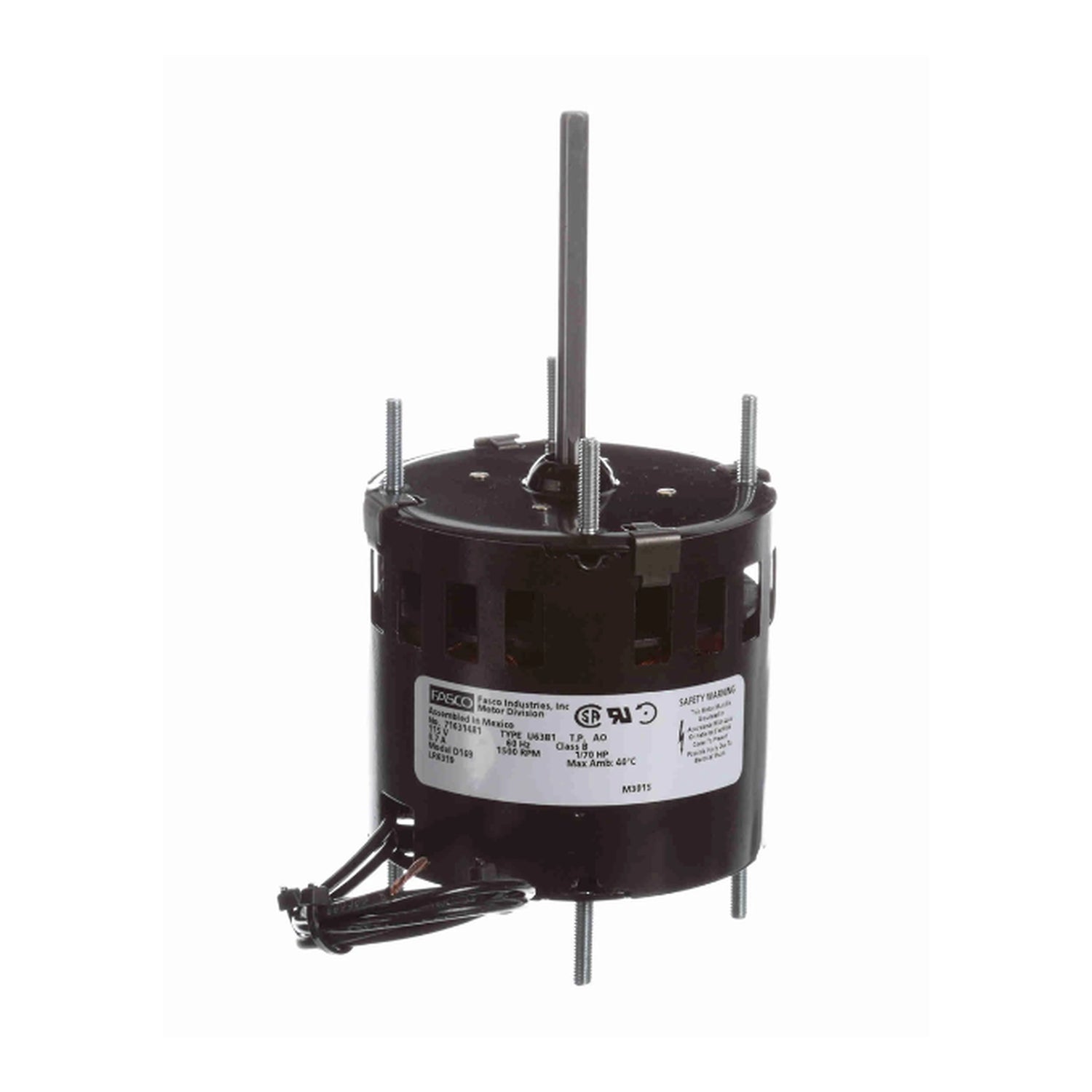

This shaded‑pole fan and blower motor is designed for HVAC and general air‑moving applications, offering single‑phase operation with thermal protection and an open air‑over enclosure in a compact 3.3" frame.

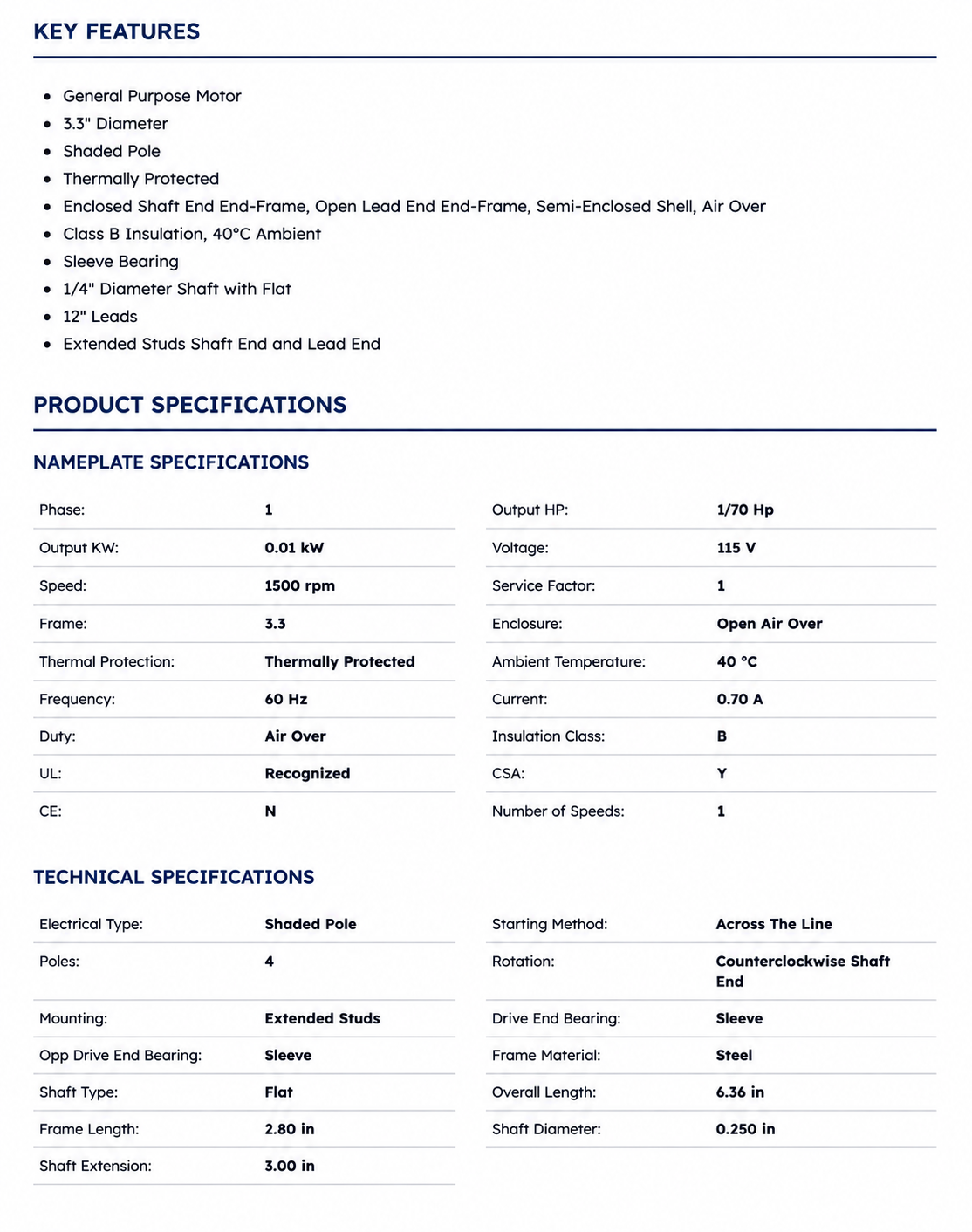

KEY FEATURES

• Model: D169

• Product Type: Fan and Blower Motor

• Horsepower: 1/70 Hp (0.01 kW)

• Voltage: 115 V

• Speed: 1500 RPM

• Frame: 3.3" diameter

• Enclosure: Open Air Over (OAO)

• Service Factor: 1

• Current: 0.70 A

• Duty: Air Over

• Insulation Class: B

• Thermal Protection: Thermally Protected

• Electrical Type: Shaded Pole

• Starting Method: Across The Line

• Poles: 4

• Rotation: Counterclockwise Shaft End (CCWSE)

• Mounting: Extended Studs

• Bearings: Sleeve (both drive end and opposite drive end)

• Frame Material: Steel

• Shaft: Flat, 0.250" diameter, 3.00" extension

• Number of Speeds: 1

• Ambient Rating: 40 °C

• Certifications: UL Recognized, CSA

The compact shaded‑pole design with built‑in thermal protection and open air‑over cooling makes this motor well‑suited for small HVAC fan and blower applications where simplicity and reliability are key.

CROSS REFERENCE

• D121
