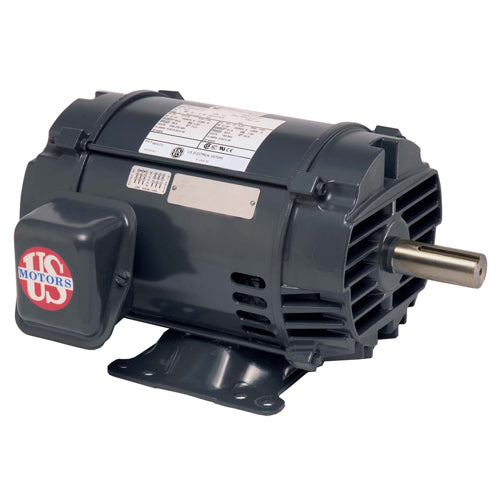

D12P2GH,Us Motors,1/2Hp, 1725 Rpm, 575 Volts, Fr:56H,P063FPD1726015B,

D12P2GH,Us Motors,1/2Hp, 1725 Rpm, 575 Volts, Fr:56H,P063FPD1726015B,

E-Motor Nations

  • $282.77


D12P2GH,Us Motors, MKR-124,MaxMotion,

Model_Number: P063FPD1726015B
PRODUCT NAME: .5 HP - ODP - 1725
PHASETYPE: 3_POLYPHASE
MOTOR ENCLOSURE: ODP
HORSEPOWER: .5
KILOWATTS: 0.4
POLES: 4
NUMBER SPEEDS: 1
RPM: 1725
HERTZ: 60
VOLTS PRIMARY: 575 V
VOLTS : 575
FRME : 56
SHAFT CODE: H
STATOR DIAMETER: 6.3
STACK: 1.375
MOUNTING: RIGID
MOTOR TYPE: FHP
OPPOSITE END BEARING: 6203
SHAFT END BEARING: 6203
AMBIENT: 40
ROTATION: REVERSIBLE
SERVICE FACTOR: 1.25
SHIPPING WEIGHT: 24
THERMAL PROTECTION: NONE
BREAKDOWN TORQUE: 109.6
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE: 81.81
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: B
KVA CODE LETTER: M
LOCKED ROTOR AMPS: 4.55
NEMA NOMINAL EFFICIENCY: 78.2
FULL LOAD AMPS PRIMARY: .68
SERVICE FACTOR AMPS PRIMARY: .76
