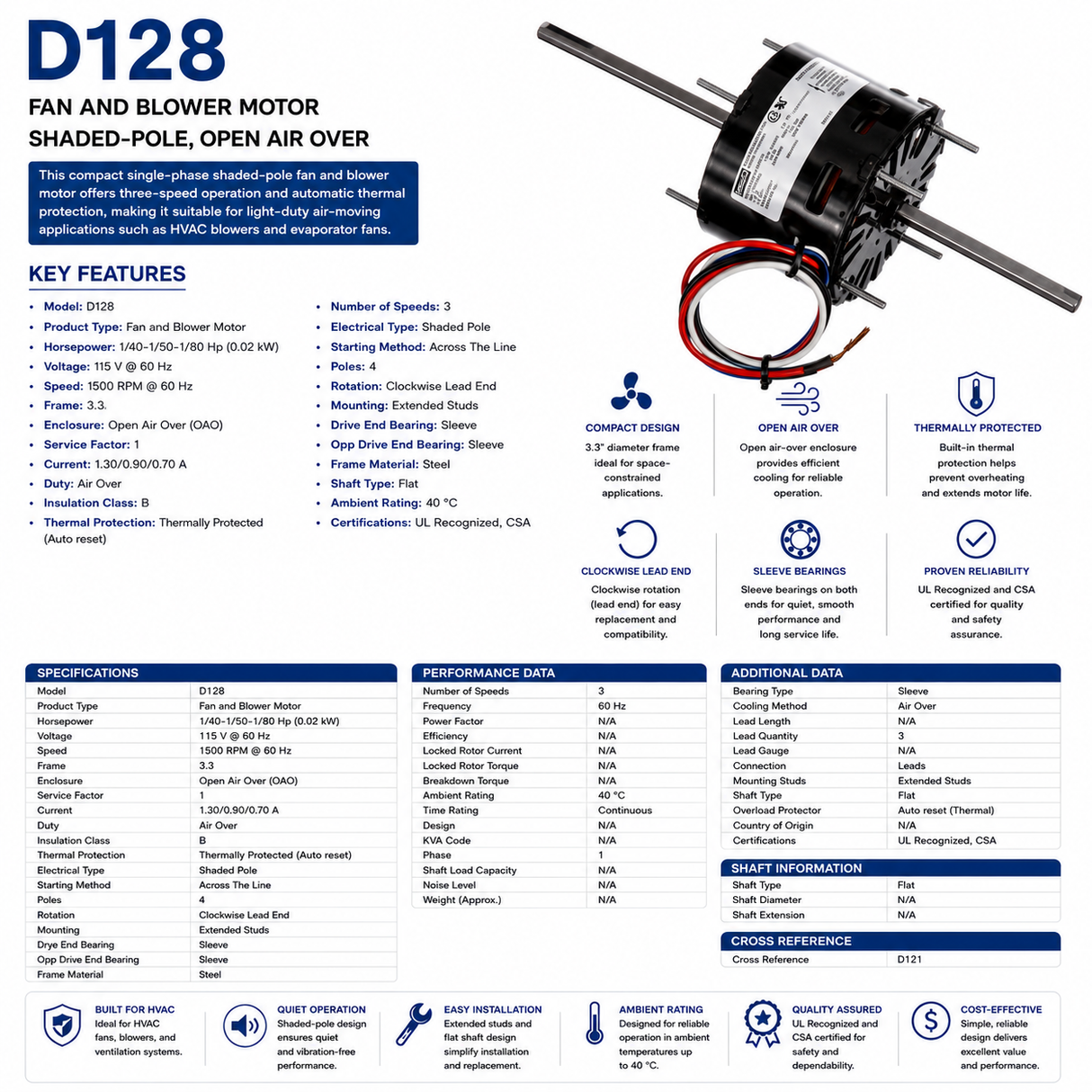

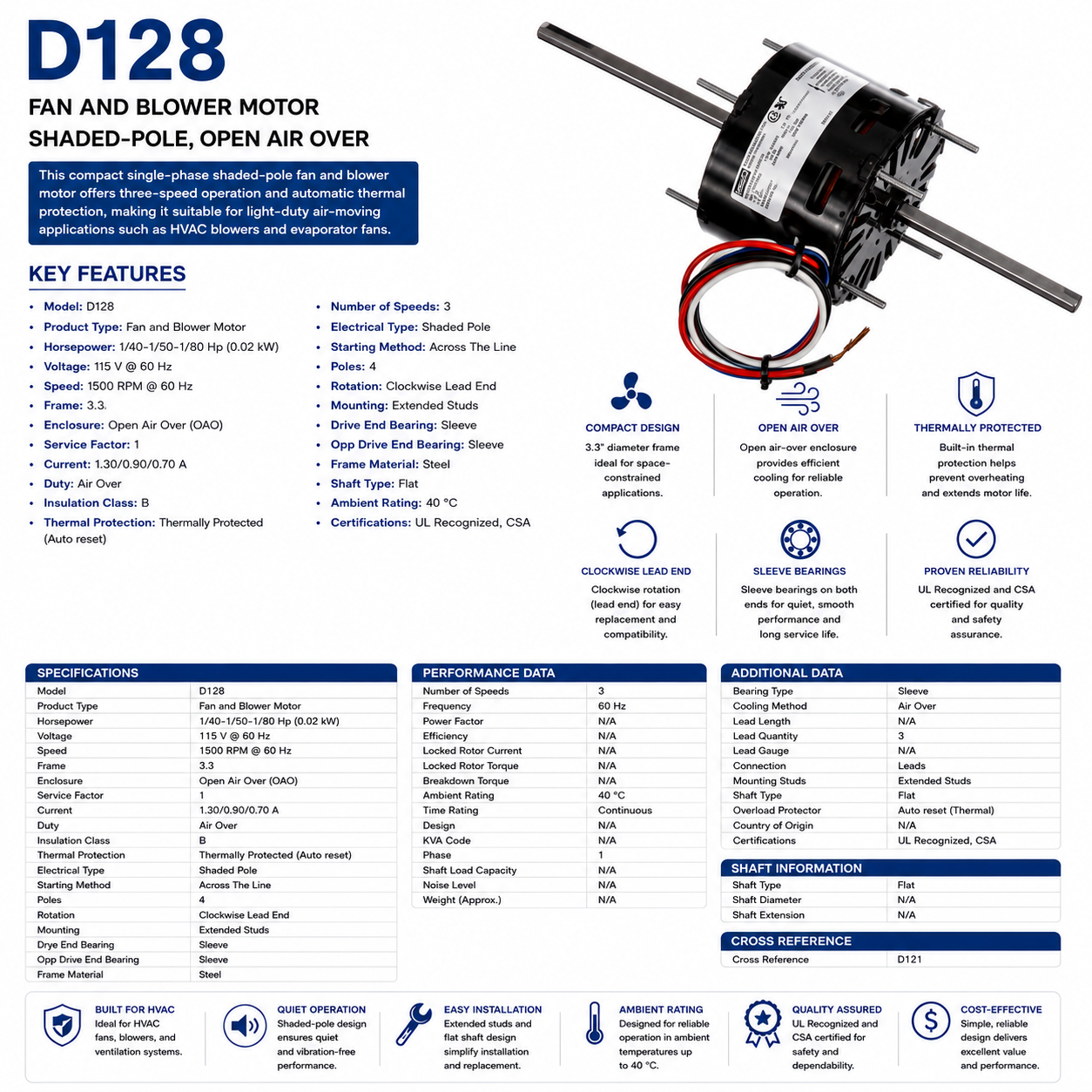

D128, 1/40‑1/50‑1/80Hp, 1500 RPM, 115 V, 1 Ph, 60 Hz, Open Air Over, Frame 3.3

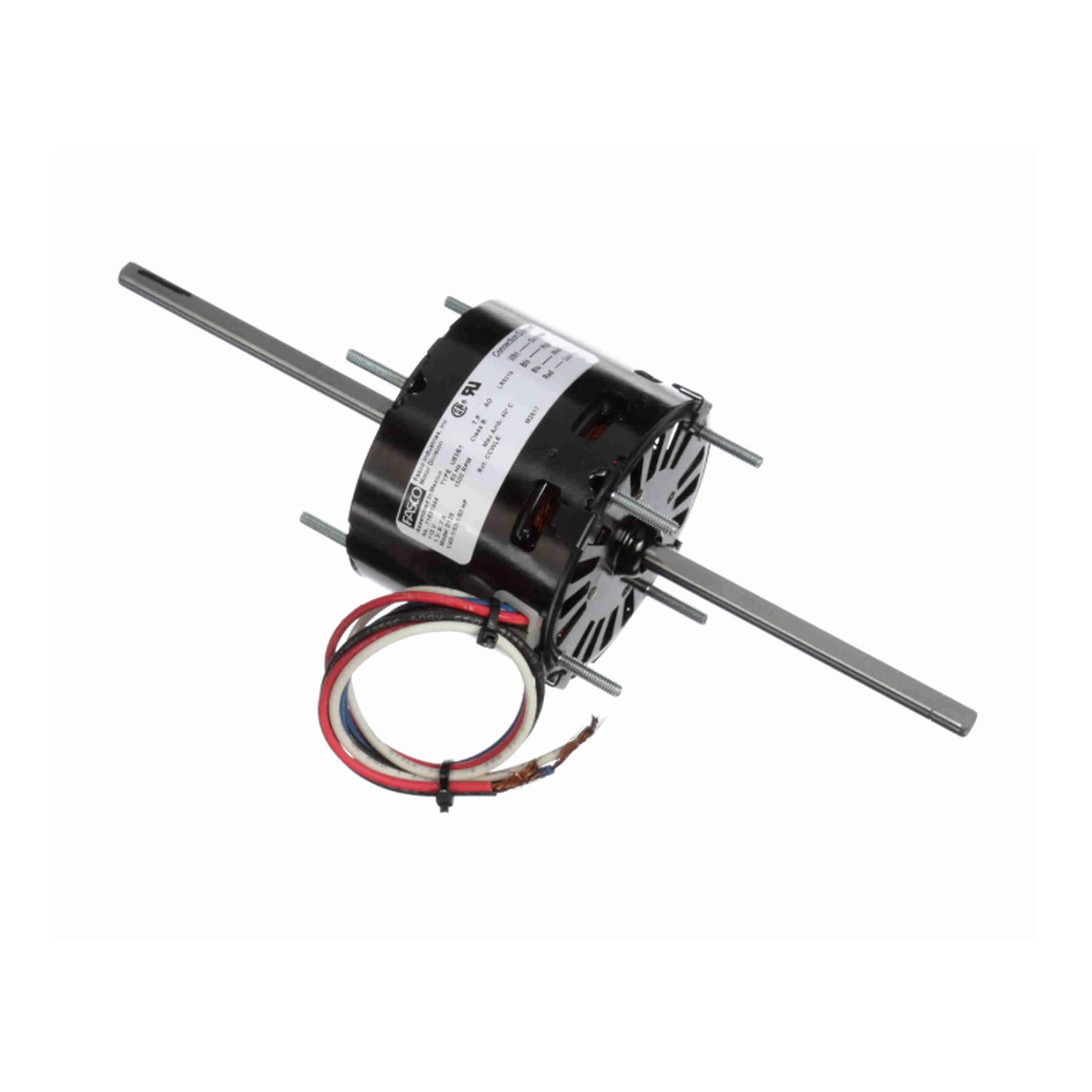

This compact single‑phase shaded‑pole fan and blower motor offers three‑speed operation and automatic thermal protection, making it suitable for light‑duty air‑moving applications such as HVAC blowers and evaporator fans.

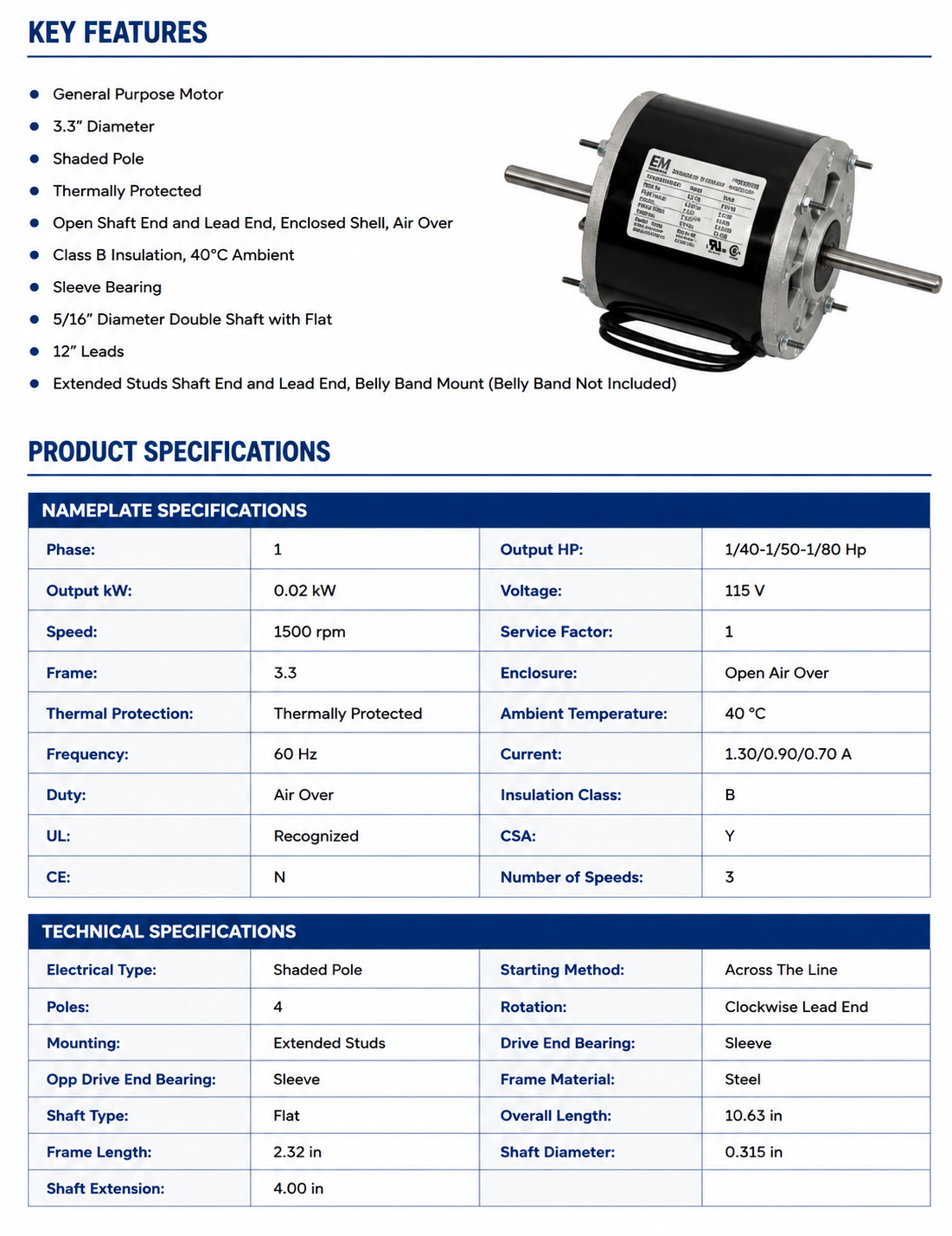

KEY FEATURES

• Model: D128

• Product Type: Fan and Blower Motor

• Horsepower: 1/40‑1/50‑1/80 Hp (0.02 kW)

• Voltage: 115 V @ 60 Hz

• Speed: 1500 RPM @ 60 Hz

• Frame: 3.3

• Enclosure: Open Air Over (OAO)

• Service Factor: 1

• Current: 1.30/0.90/0.70 A

• Duty: Air Over

• Insulation Class: B

• Thermal Protection: Thermally Protected (Auto reset)

• Number of Speeds: 3

• Electrical Type: Shaded Pole

• Starting Method: Across The Line

• Poles: 4

• Rotation: Clockwise Lead End

• Mounting: Extended Studs

• Drive End Bearing: Sleeve

• Opp Drive End Bearing: Sleeve

• Frame Material: Steel

• Shaft Type: Flat

• Ambient Rating: 40 °C

• Certifications: UL Recognized, CSA

The motor’s compact 3.3‑inch frame and multi‑speed capability make it versatile for confined HVAC applications, while its shaded‑pole design and automatic thermal protection ensure reliable, maintenance‑free operation.
