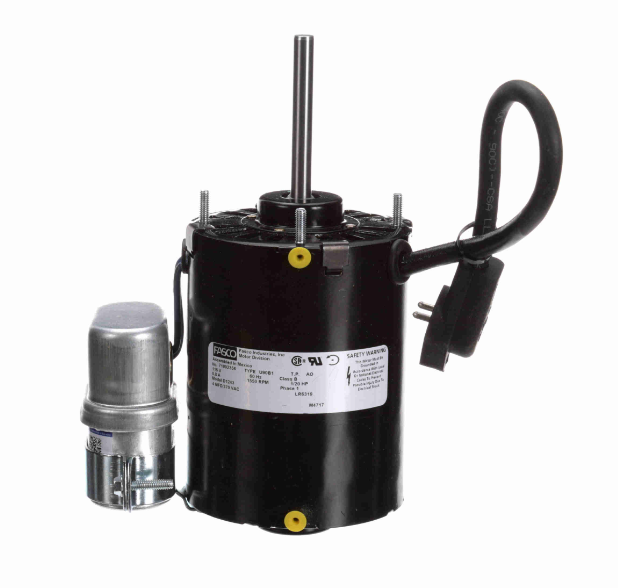

D1243, OEM Replacement Motor, 1/20Hp, 1 Ph, 60 Hz, 115 V, 1550 RPM, 1 Speed, 3.3" Diameter, OAO

D1243, OEM Replacement Motor, 1/20Hp, 1 Ph, 60 Hz, 115 V, 1550 RPM, 1 Speed, 3.3" Diameter, OAO

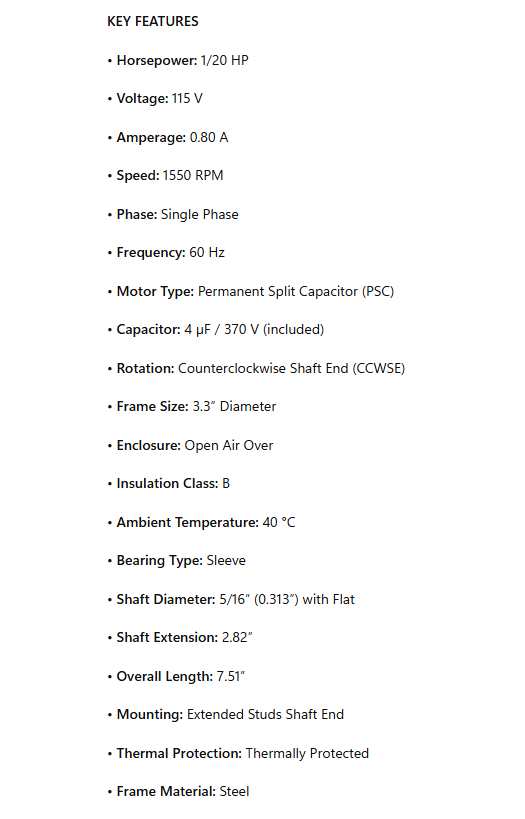

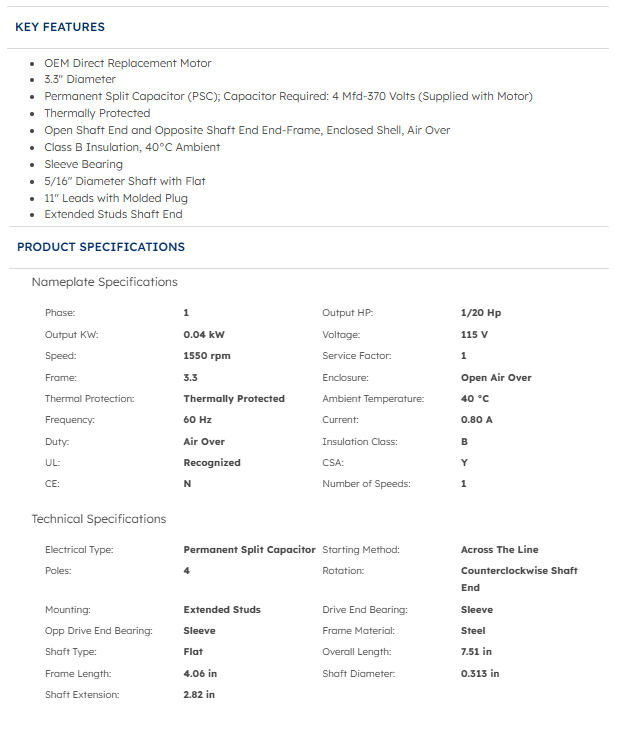

KEY FEATURES

• Horsepower: 1/20 HP

• Voltage: 115 V

• Amperage: 0.80 A

• Speed: 1550 RPM

• Phase: Single Phase

• Frequency: 60 Hz

• Motor Type: Permanent Split Capacitor (PSC)

• Capacitor: 4 µF / 370 V (included)

• Rotation: Counterclockwise Shaft End (CCWSE)

• Frame Size: 3.3″ Diameter

• Enclosure: Open Air Over

• Insulation Class: B

• Ambient Temperature: 40 °C

• Bearing Type: Sleeve

• Shaft Diameter: 5/16″ (0.313″) with Flat

• Shaft Extension: 2.82″

• Overall Length: 7.51″

• Mounting: Extended Studs Shaft End

• Thermal Protection: Thermally Protected

• Frame Material: Steel
