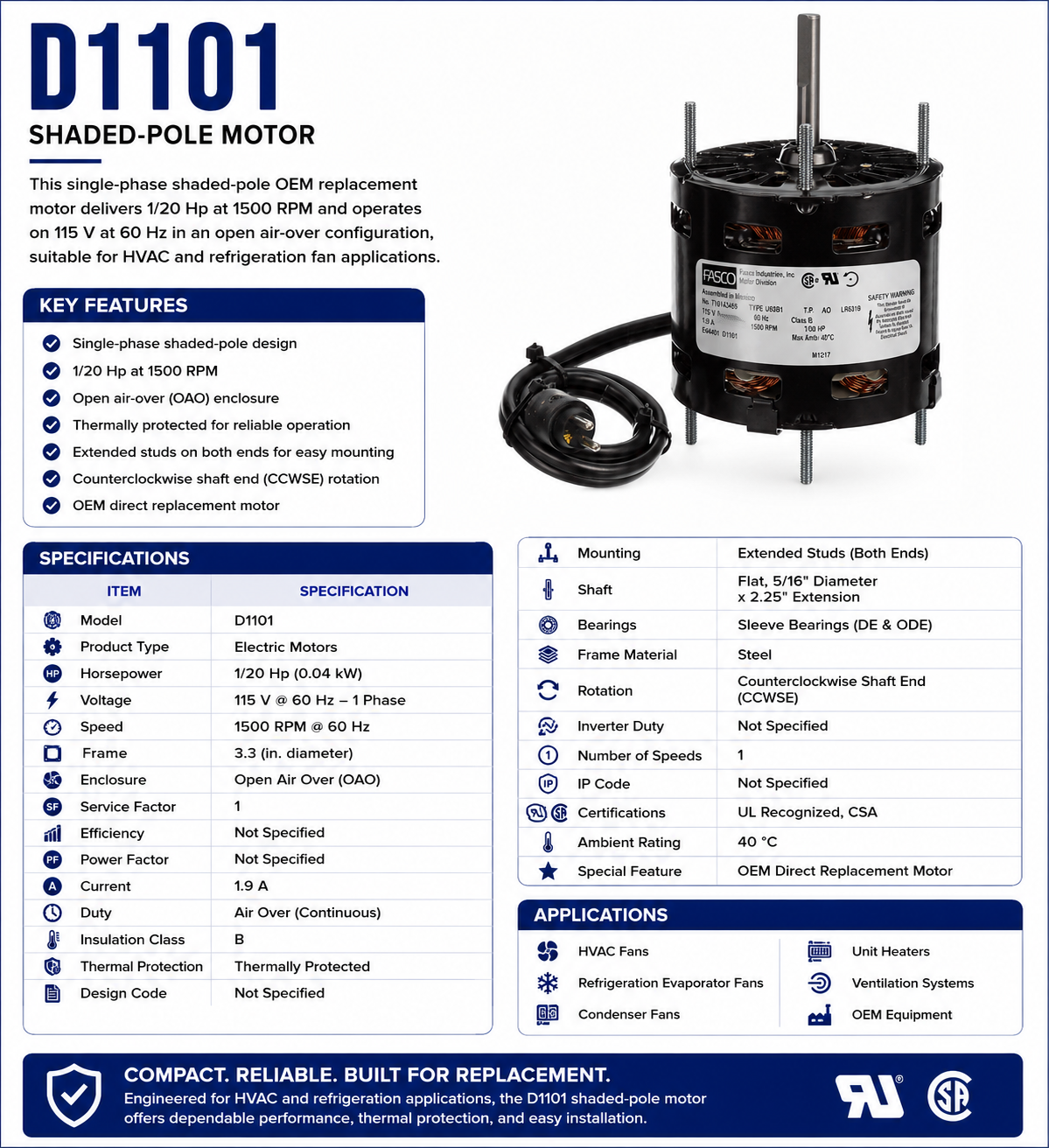

D1101, 1/20 Hp, 1500 RPM, 115 V, 1 Ph, 60 Hz, OAO, Frame 3.3

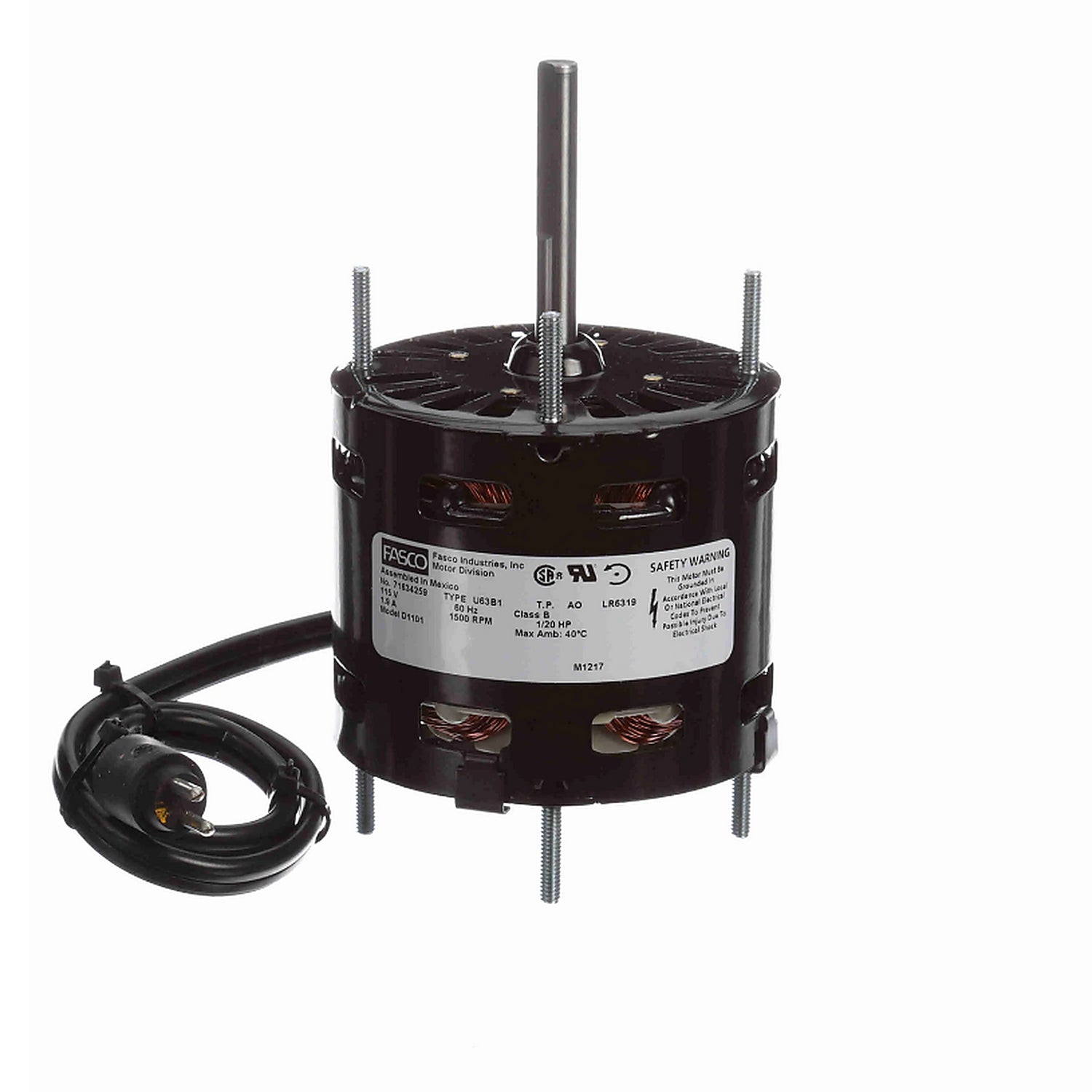

This single-phase shaded-pole OEM replacement motor delivers 1/20 Hp at 1500 RPM and operates on 115 V at 60 Hz in an open air-over configuration, suitable for HVAC and refrigeration fan applications.

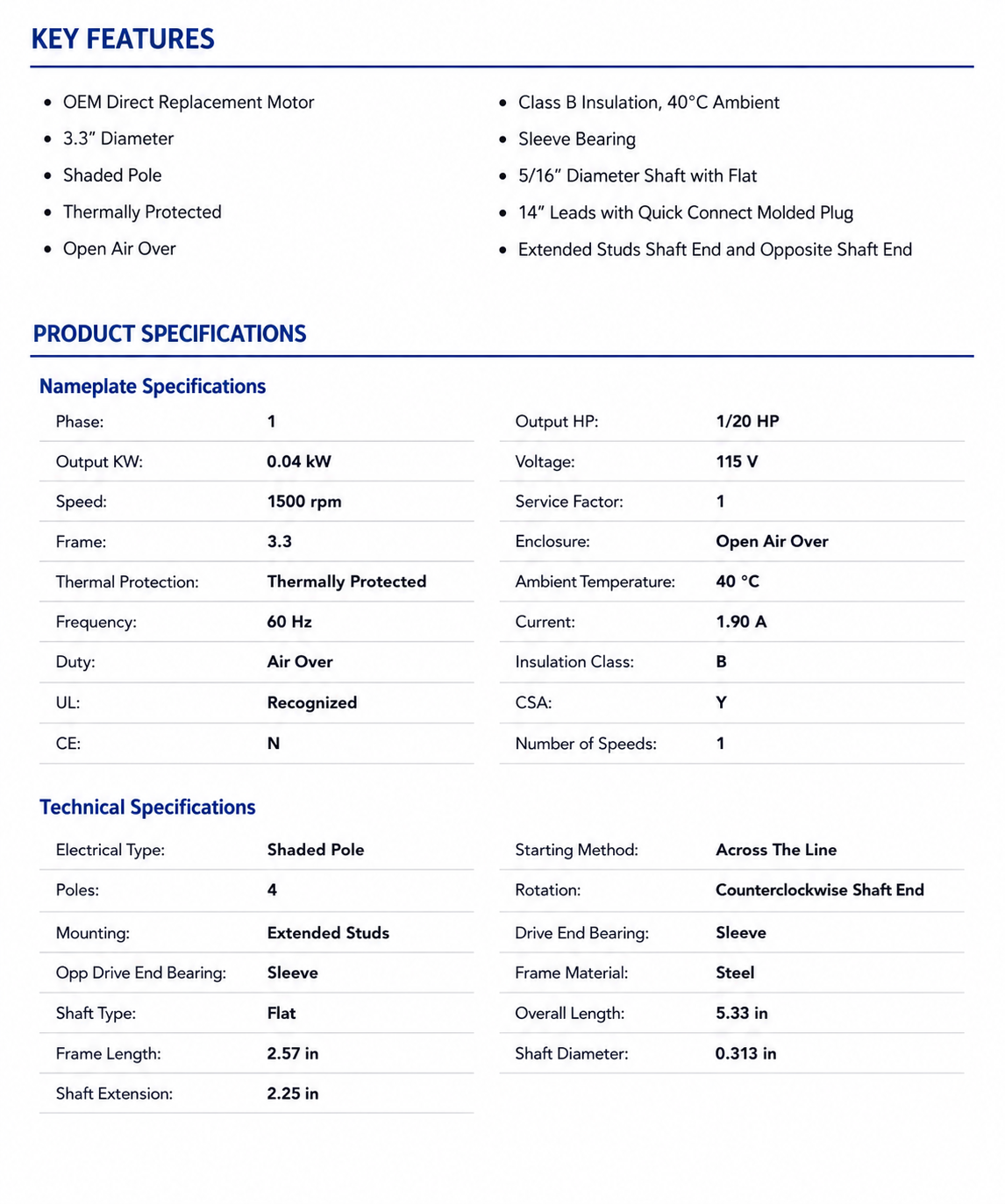

KEY FEATURES

• Model: D1101

• Product Type: Electric Motors

• Horsepower: 1/20 Hp (0.04 kW)

• Voltage: 115 V @ 60 Hz – 1 Phase

• Speed: 1500 RPM @ 60 Hz

• Frame: 3.3 (in. diameter)

• Enclosure: Open Air Over (OAO)

• Service Factor: 1

• Current: 1.9 A

• Duty: Air Over (continuous)

• Insulation Class: B

• Thermal Protection: Thermally Protected

• Mounting: Extended Studs (both ends)

• Shaft: Flat, 5/16" diameter × 2.25" extension

• Bearings: Sleeve Bearings (drive-end & opposite)

• Frame Material: Steel

• Rotation: Counterclockwise Shaft End (CCWSE)

• Number of Speeds: 1

• Certifications: UL Recognized, CSA

• Ambient Rating: 40 °C

• Special Feature: OEM direct replacement motor

This compact motor’s shaded-pole design and thermal protection make it a reliable choice for HVAC and refrigeration fan replacements, offering straightforward mounting and compatibility with standard 115 V systems.
