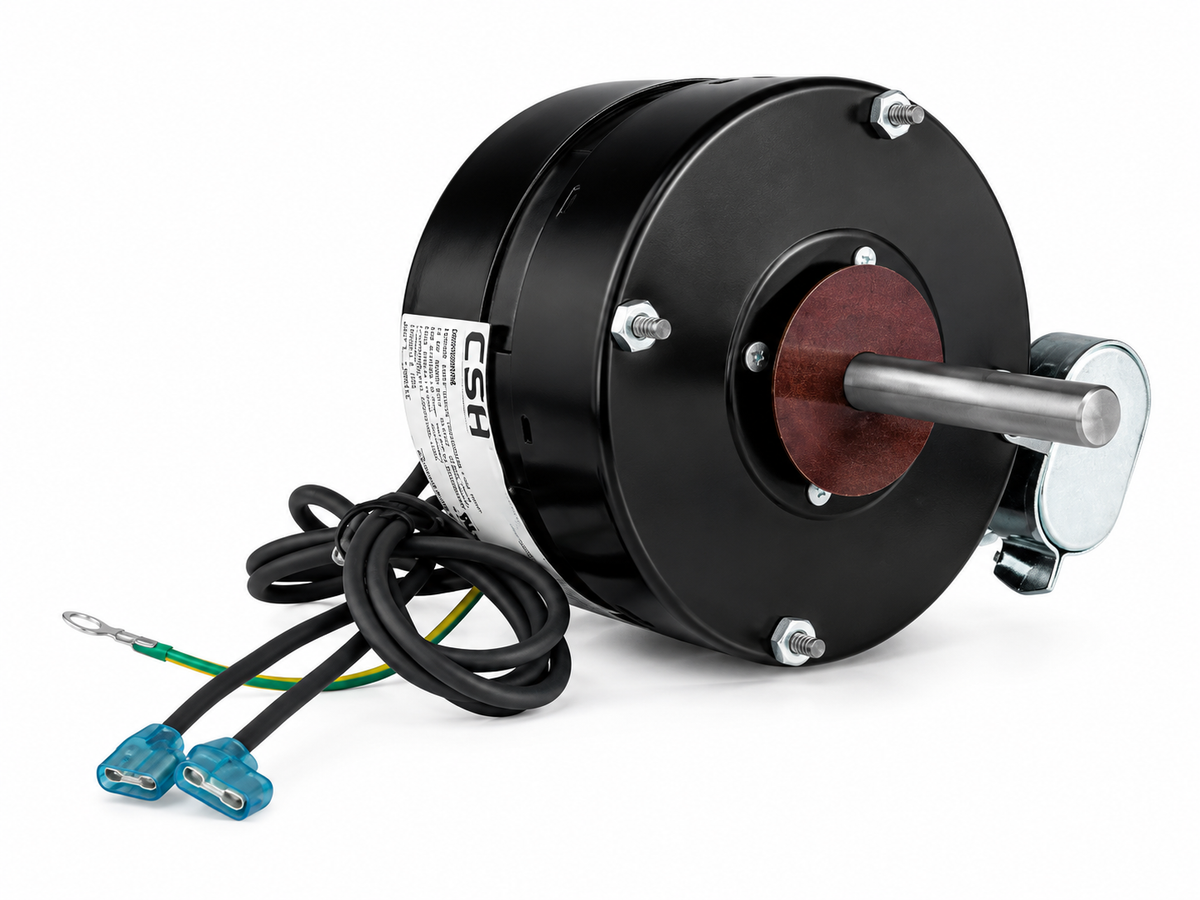

D1050A, 1/8Hp, 1550 RPM, 230 V, 1 Ph, 60 Hz, OAO, Frame 42

This single-phase OEM replacement AC motor delivers 0.125 Hp output at 1550 RPM, designed for continuous-duty HVAC applications in a compact 42-frame air-over enclosure.

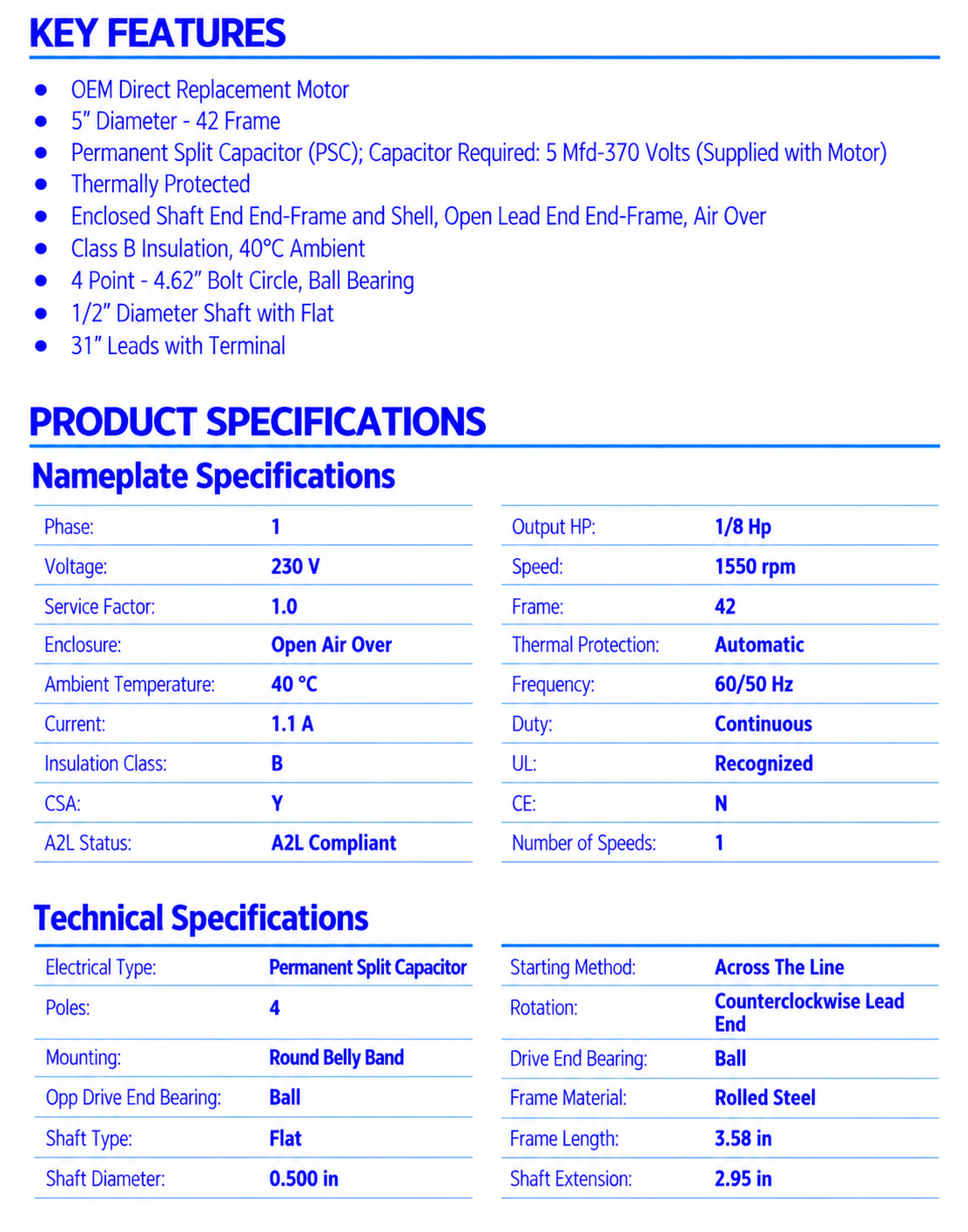

KEY FEATURES

• Model: D1050A

• Horsepower: 1/8 Hp (0.10 kW)

• Voltage: 230 V @ 60 Hz

• Speed: 1550 RPM @ 60 Hz

• Frame: 42

• Enclosure: Open Air Over (OAO)

• Phase: 1 Phase

• Service Factor: 1

• Duty: Continuous

• Insulation Class: B

• Thermal Protection: Automatic

• Mounting: Belly Band

• Shaft: 0.500 in diameter × 2.95 in length, flat

• Bearings: Sleeve (Drive End & Opposite Drive End)

• Rotation: CWSE (Clockwise Shaft End)

• Ambient Rating: 40 °C

• Capacitor: 5 µF – 370 V (supplied)

• Certifications: UL Recognized, CSA Certified

The motor’s compact design and continuous-duty rating make it suitable for HVAC systems requiring reliable, low-power operation in tight spaces.
