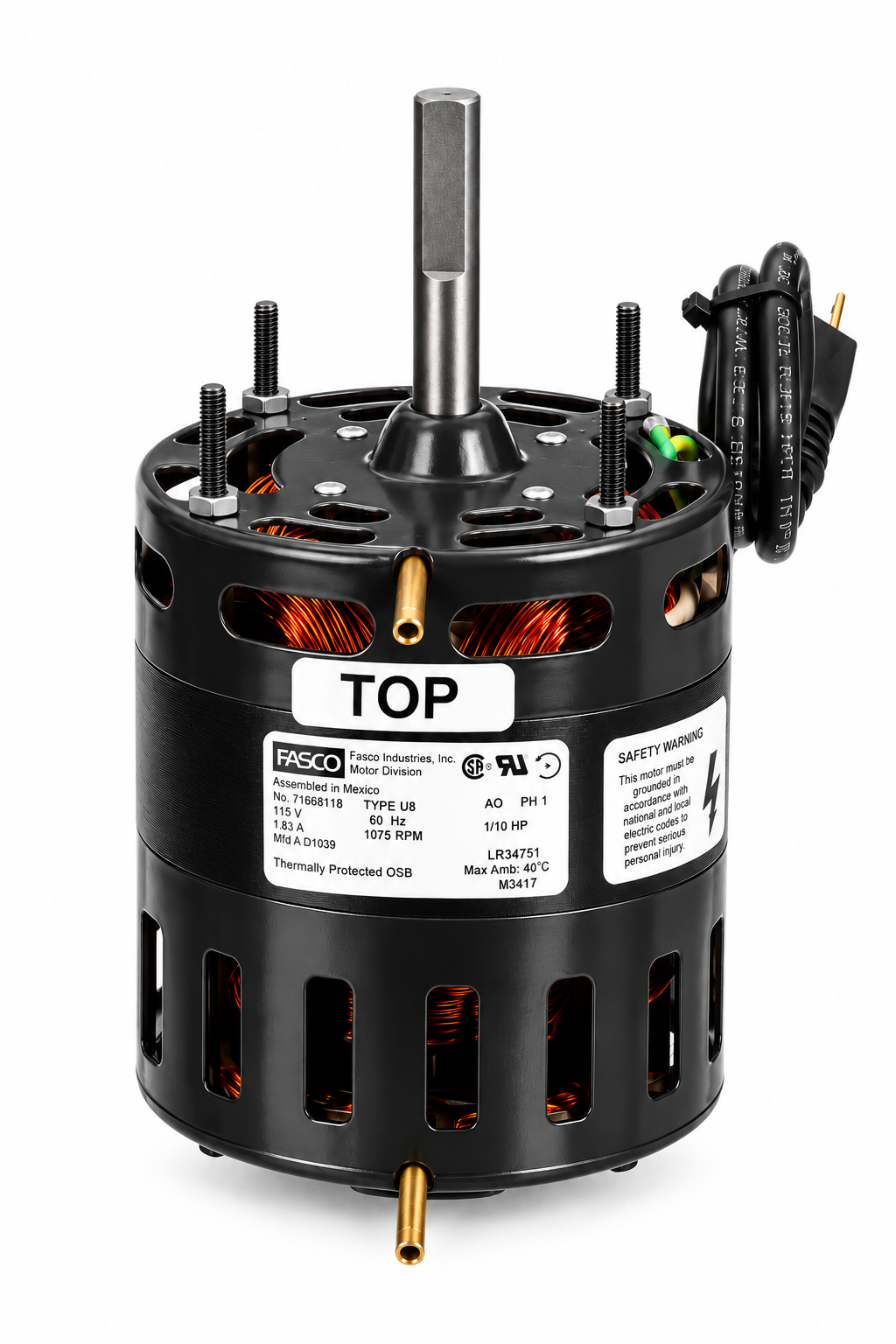

D1039, 1/10 Hp, 1610 RPM, 115 V, 1 Ph, 60 Hz, OAO, Frame 4.4

This compact single-phase shaded‑pole motor is designed for HVAC OEM replacement applications, providing continuous air‑over duty with a 4.4‑inch frame diameter and thermally protected operation.

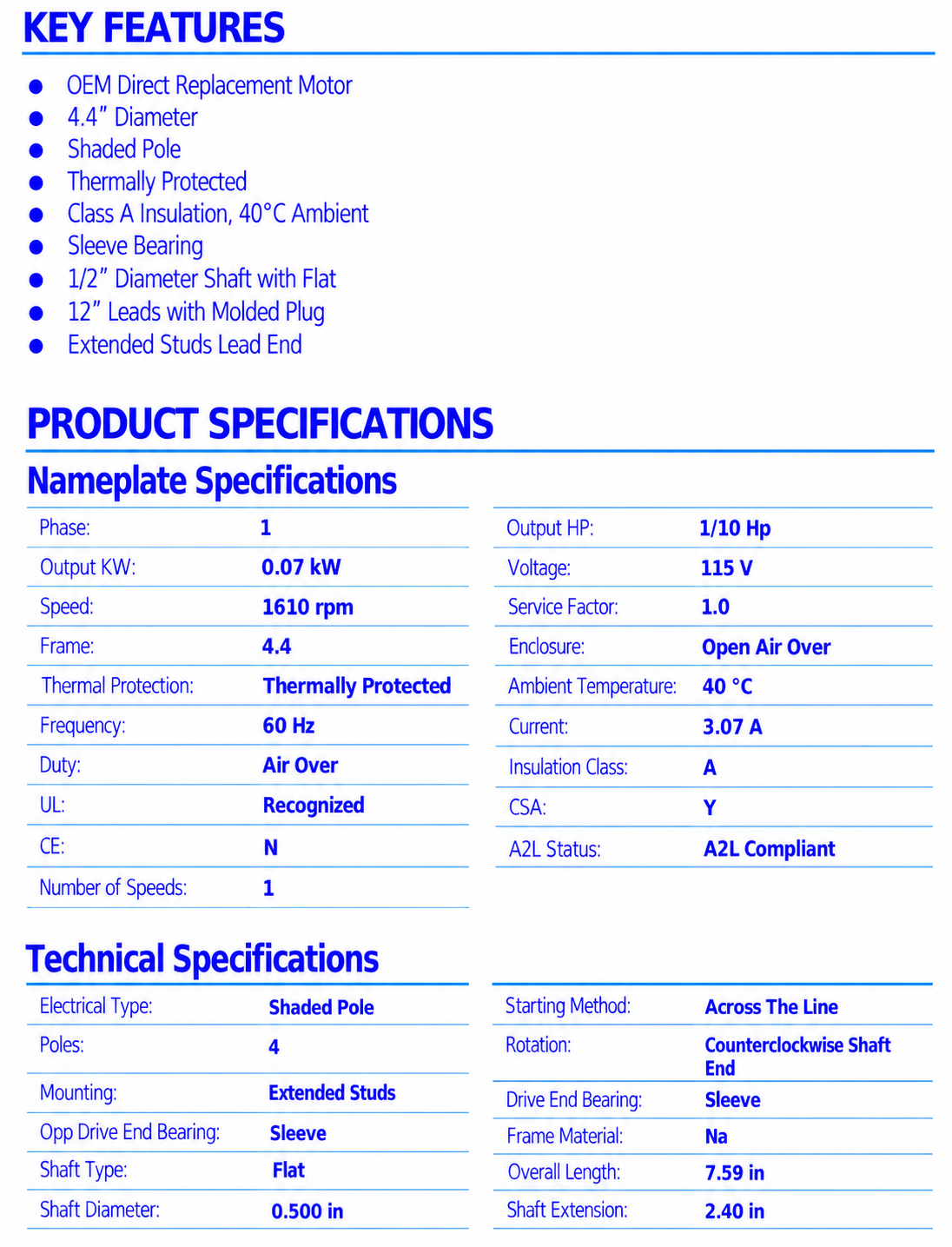

KEY FEATURES

• Model: D1039

• Product Type: OEM Replacement Motor

• Horsepower: 1/10 Hp (0.07 kW)

• Voltage: 115 V @ 60 Hz

• Speed: 1610 RPM @ 60 Hz

• Frame: 4.4 in

• Enclosure: Open Air Over (OAO)

• Service Factor: 1.00 @ 60 Hz

• Insulation Class: A

• Phase: 1

• Number of Speeds: 1

• Rotation: CCWSE (Counterclockwise Shaft End)

• Bearings: Sleeve

• Thermal Protection: Automatic (Thermally Protected)

• Shaft: 1/2 in × 2‑3/8 in

• Duty: Air Over (Continuous)

• Frequency: 60 Hz

• Cross References: ILG 78‑27‑611N; Fasco 7108‑2171

This motor’s compact size, shaded‑pole simplicity, and direct OEM compatibility make it a reliable choice for replacing HVAC blower or condenser fan motors in tight installations.
