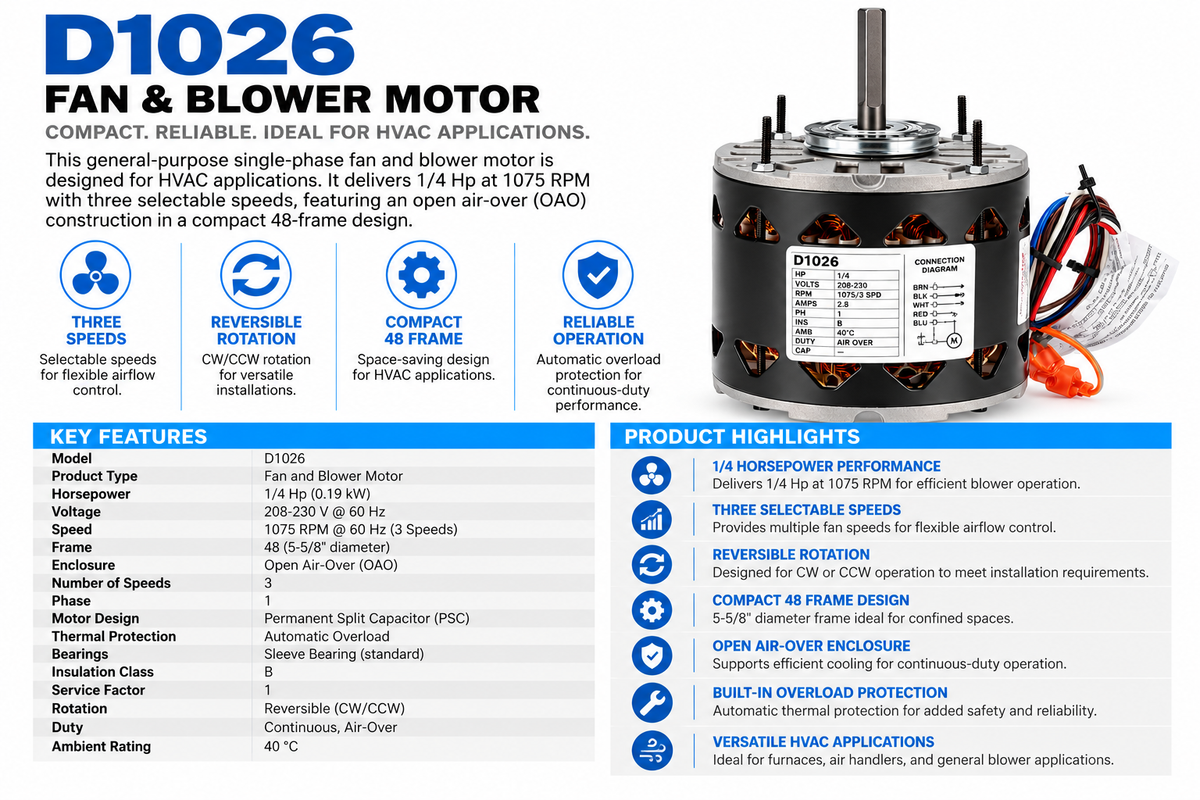

D1026, 1/4Hp, 1075 RPM, 208‑230 V, 1‑Phase, 60 Hz, Open Air‑Over, Frame 48

This general-purpose single-phase fan and blower motor is designed for HVAC applications, offering three selectable speeds and a compact 48-frame open air-over construction.

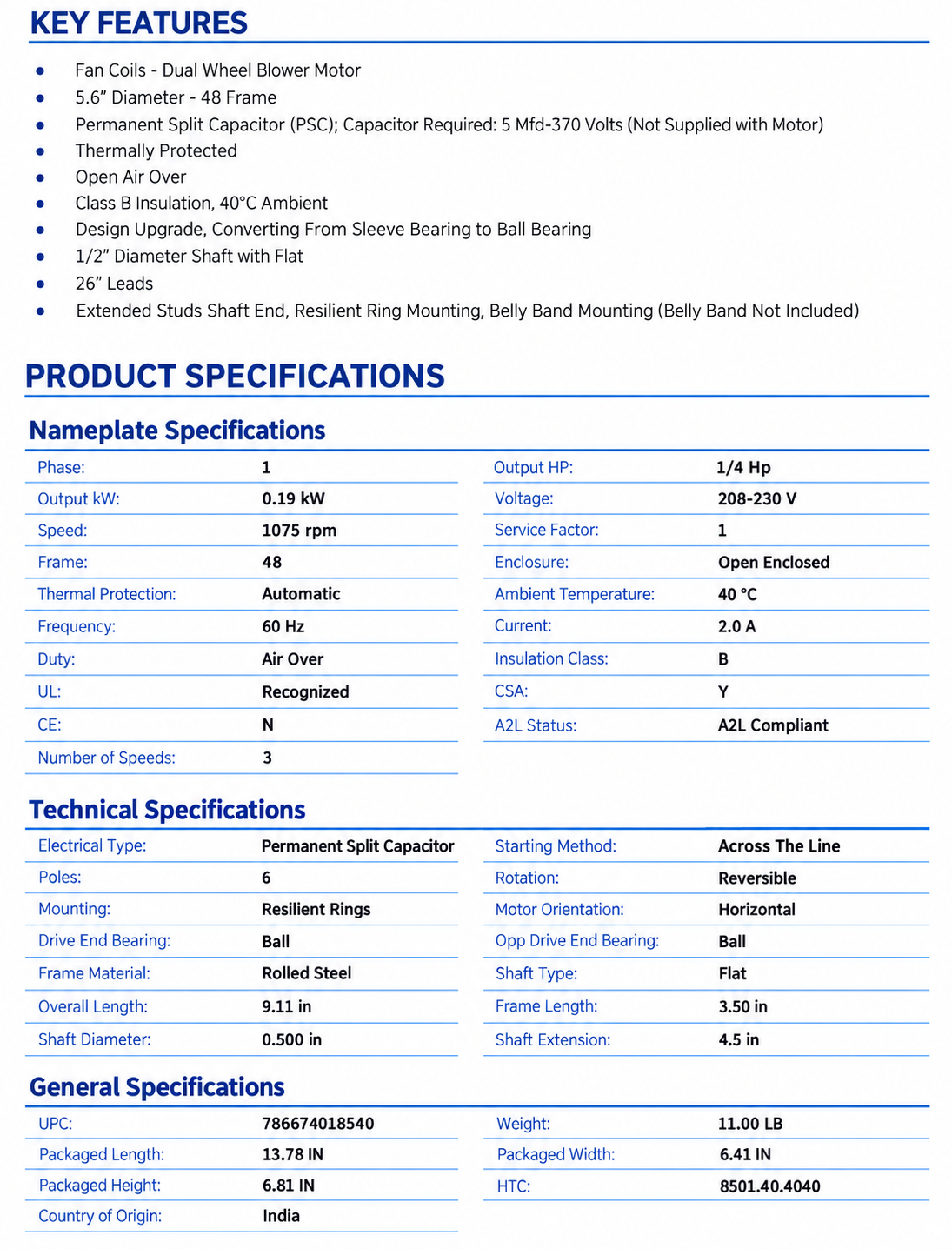

KEY FEATURES

• Model: D1026

• Product Type: Fan and Blower Motor

• Horsepower: 1/4Hp

• Voltage: 208‑230 V @ 60 Hz

• Speed: 1075 RPM @ 60 Hz

• Frame: 48

• Enclosure: Open Air‑Over (OAO)

• Number of Speeds: 3

• Phase: 1

• Motor Design: Permanent Split Capacitor (PSC)

• Thermal Protection: Automatic

• Bearings: Sleeve Bearing

• Insulation Class: B

• Service Factor: 1

• Rotation: Reversible (CW/CCW)

• Duty: Continuous

• Ambient Rating: 40 °C
