D013, 1/50Hp, 2500/3000 RPM, 115 V, 1 Ph, Shaded‑Pole Centrifugal Blower, No Flange, 7021-12908

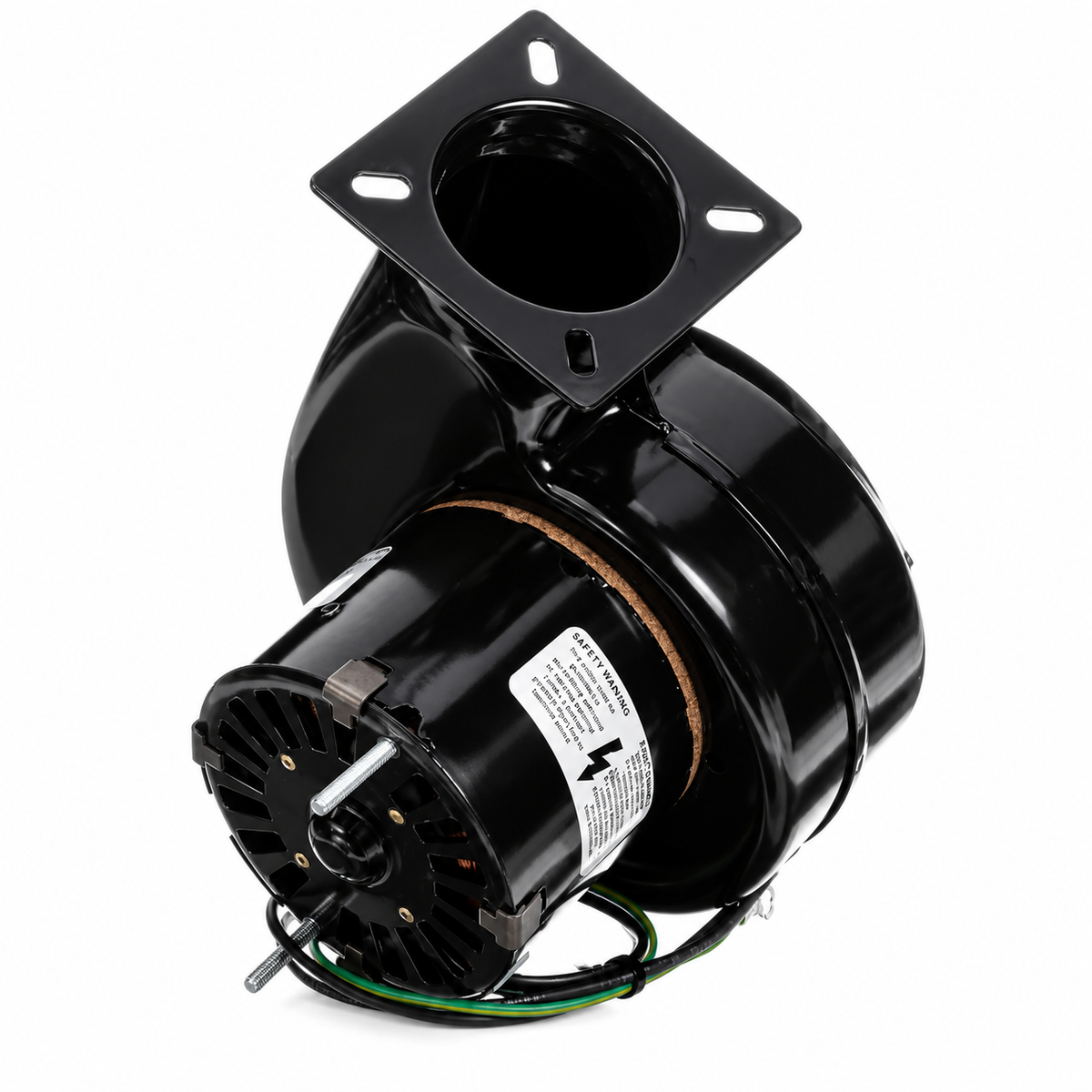

This compact single‑phase shaded‑pole centrifugal blower is designed for draft inducer and general air‑moving applications, offering thermally protected operation and open air‑over cooling in a durable sleeve‑bearing design.

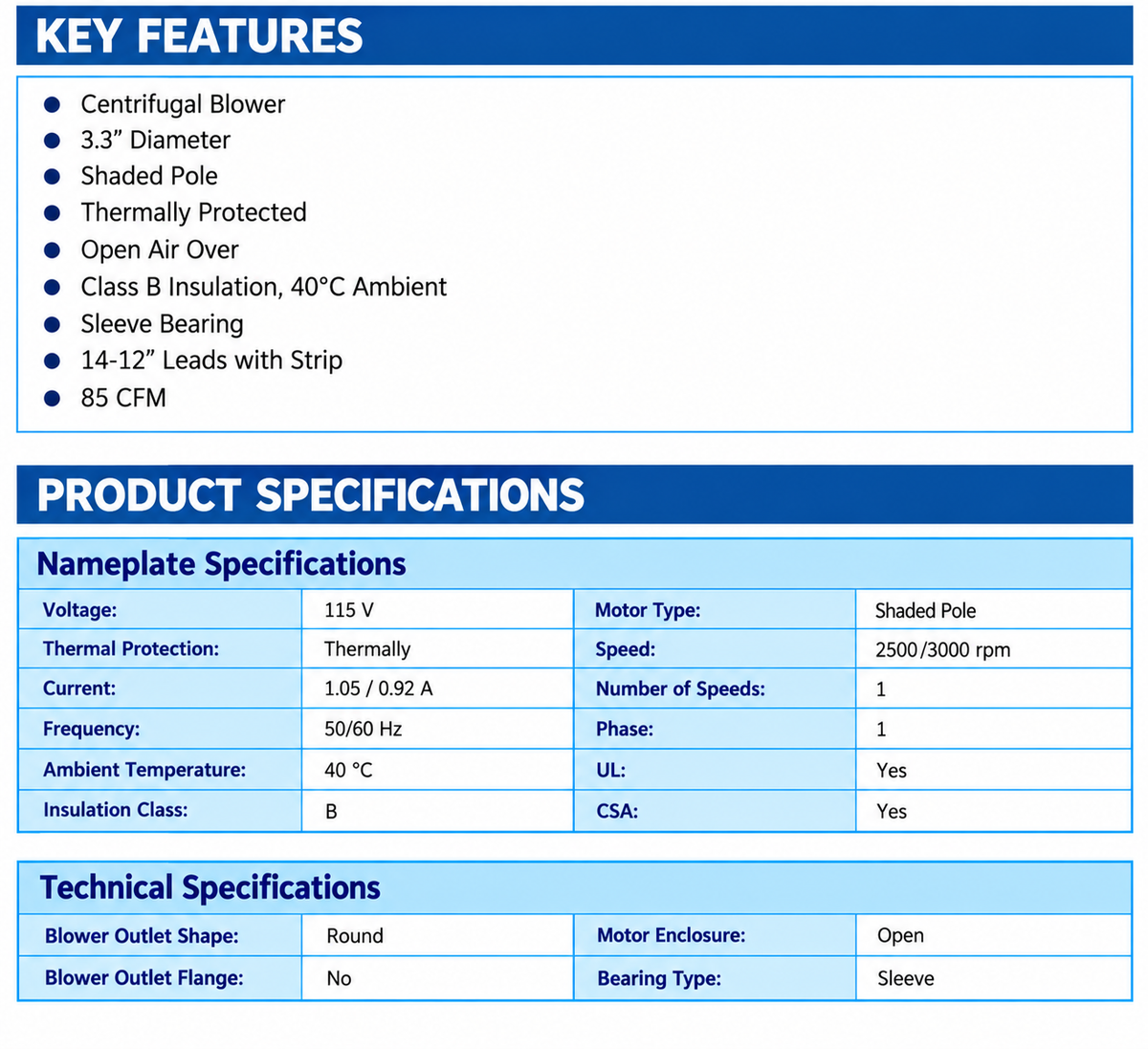

KEY FEATURES

• Model: D013

• Product Type: Centrifugal Blower

• Voltage: 115 V @ 60 Hz / @ 50 Hz

• Speed: 3000 RPM @ 60 Hz / 2500 RPM @ 50 Hz

• Motor Type: Shaded‑Pole

• Thermal Protection: Thermally Protected

• Cooling: Open Air Over

• Insulation Class: B (40 °C Ambient)

• Bearing Type: Sleeve Bearing

• Number of Speeds: 1

• UL Listed: Yes

• CSA Certified: Yes

• Blower Outlet Shape: Round

• Blower Outlet Flange: No

• Current: 1.05 A @ 60 Hz / 0.92 A @ 50 Hz

• Weight: 4.30 lbs

This blower’s compact design with thermally protected shaded‑pole motor and sleeve bearings makes it ideal for reliable, low‑maintenance air movement in tight spaces.
