E-Motor Nations  |  SKU: EMN-017215

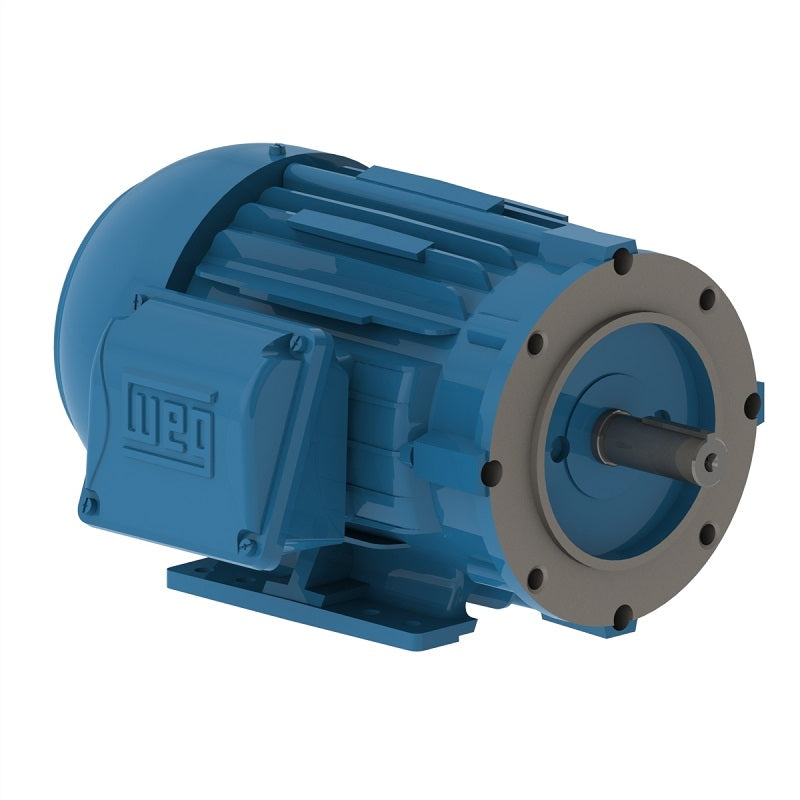

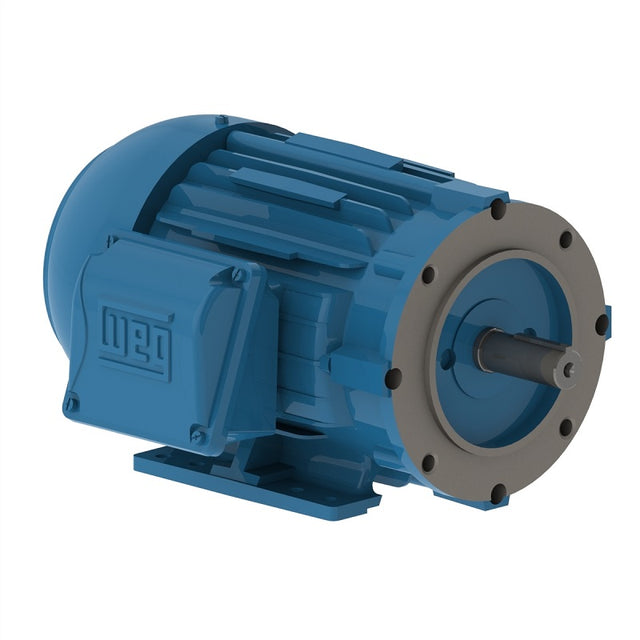

CT002502NPW01, Weg, 2 Hp, 3450 Rpm, 575V, Fr:143/5TC, Premium, W01,

$589.30
shipping

Estimate shipping

Description

CT002502NPW01, Weg, CT002502NPW022, Replace MaxMotion, MPP-11, TECO Westinghouse, PDH00225C,Us Motors,U2P1G, ELP2P1G,Baldor CEM3586T-5, Spec 05C052X118E7,

Electric Motors

Frame 143/5TC
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3475 rpm
Slip 3.47 %
Rated voltage 575 V
Rated current 2.05 A
L. R. Amperes 18.2 A
LRC 8.9x(Code L)
No load current 0.720 A
Rated torque 2.98 ft.lb
Locked rotor torque 350 %
Breakdown torque 380 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 43 lb
