WEG | SKU:
EMN-018301

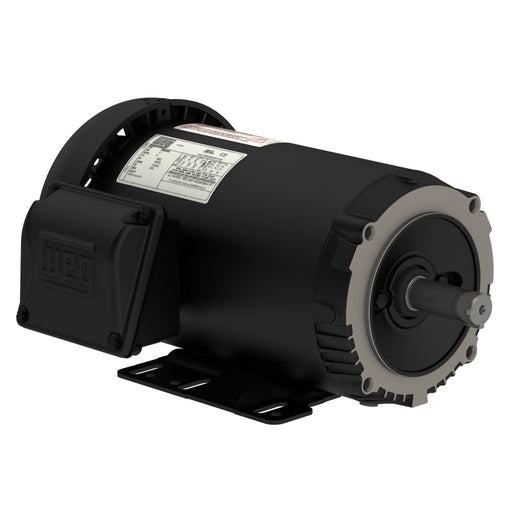

CT002404NPW01, WEG, 2 Hp, 1745 Rpm, 230-460 Volts, Frame:143/5TC,TEFC,
Regular price
$619.95
Unit price
/
Unavailable
CT002404NPW01, WEG, 2 Hp, 1745 Rpm, 230-460 Volts, Frame:143/5TC,TEFC, is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
CT002404NPW01, WEG, 2 Hp, 1745 Rpm, 230-460 Volts, Frame:143/5TC,TEFC,
Regular price
$619.95
Unit price
/
Unavailable
Description
Description
CT002404NPW01, WEG

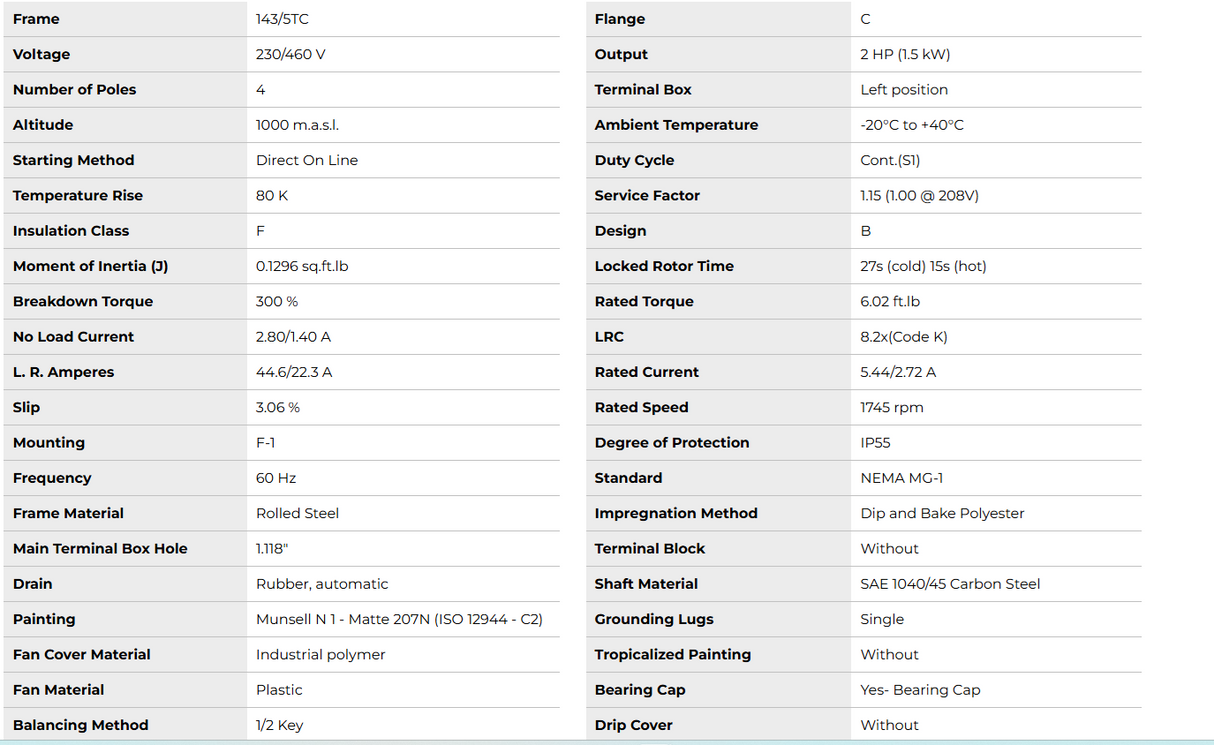

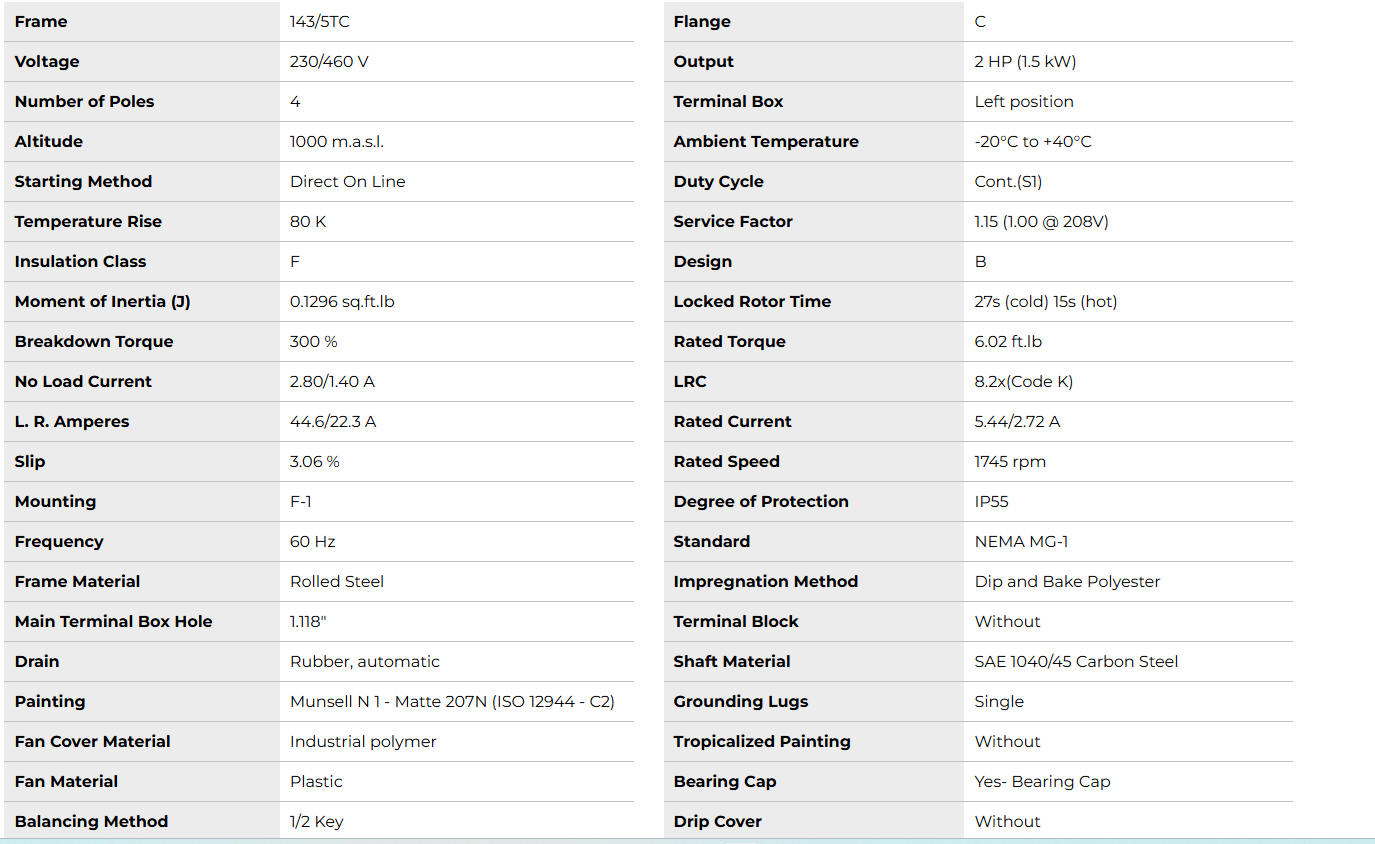

| Specification | Details |
|---|
| Frame | 143/5TC |
| Voltage | 230/460 V |
| Number of Poles | 4 |
| Altitude | 1000 m.a.s.l. |
| Starting Method | Direct On Line |
| Temperature Rise | 80 K |
| Insulation Class | F |
| Moment of Inertia (J) | 0.1296 sq.ft.lb |
| Breakdown Torque | 300% |
| No Load Current | 2.80/1.40 A |
| Locked Rotor Amperes | 44.6/22.3 A |
| Slip | 3.06% |
| Mounting | F-1 |
| Frequency | 60 Hz |
| Frame Material | Rolled Steel |
| Main Terminal Box Hole | 1.118" |
| Drain | Rubber, automatic |
| Painting | Munsell N 1 - Matte 207N (ISO 12944 - C2) |
| Fan Cover Material | Industrial polymer |
| Fan Material | Plastic |
| Balancing Method | 1/2 Key |
| Overload Protector | Without overload protector |
| Grease Type | Mobil Polyrex EM |
| Rotation | Both (CW and CCW) |
| Bearing Type | 6205 ZZ |
| Non-Drive End (NDE) Bearing Seal | Without Bearing Seal |
| Flange | C |
| Output | 2 HP (1.5 kW) |
| Terminal Box Position | Left |
| Ambient Temperature | -20°C to +40°C |
| Duty Cycle | Continuous (S1) |
| Service Factor | 1.15 (1.00 @ 208V) |
| Design | B |
| Locked Rotor Time | 27s (cold), 15s (hot) |
| Rated Torque | 6.02 ft.lb |
| Locked Rotor Current (LRC) | 8.2x (Code K) |
| Rated Current | 5.44/2.72 A |
| Rated Speed | 1745 rpm |
| Degree of Protection | IP55 |
| Standard | NEMA MG-1 |
| Impregnation Method | Dip and Bake Polyester |
| Terminal Block | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Grounding Lugs | Single |
| Tropicalized Painting | Without |
| Bearing Cap | Yes, with Bearing Cap |
| Drip Cover | Without |
| NDE Bearing | 6203 ZZ |
| Locked Rotor Torque | 270% |
| Noise Level | 52.0 dB(A) |
| Sealing | V'Ring |
