E-Motor Nations  |  SKU: EMN-017216

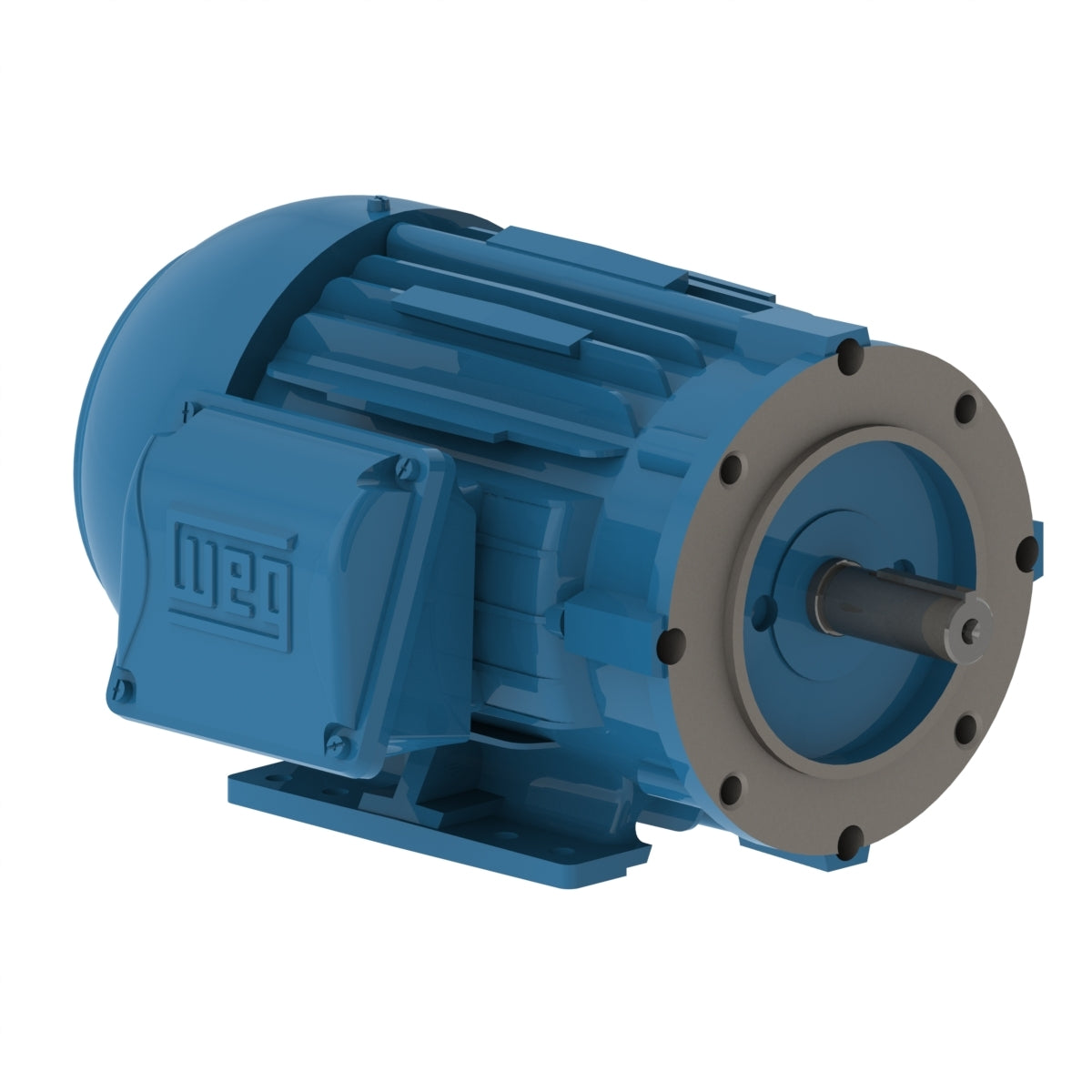

CT002402NPW01, Weg, 2 Hp, 3450 Rpm, 230/460V, Fr:143/5TC, Premium,W01,

$589.30
shipping

Estimate shipping

Description

CT002402NPW01, Weg, CT002402NPW22, Replace MaxMotion, MQP-11, TECO Westinghouse, PDH0022C,Us Motors,U2D1P, ELP2P1D,Baldor CEM3586T, Spec 05C052X117E7,

Electric Motors

Frame 143/5TC
Output 2 HP (1.5 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3475 rpm
Slip 3.47 %
Rated voltage 208-230/460 V
Rated current 5.60-5.12/2.56 A
L. R. Amperes 49.8-45.6/22.8 A
LRC 8.9x(Code L)
No load current 1.55-1.80/0.900 A
Rated torque 2.98 ft.lb
Locked rotor torque 350 %
Breakdown torque 380 %
Locked rotor time 30s (cold) 17s (hot)
Moment of inertia (J) 0.0605 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 68.0 dB(A)
Approx. weight³ 53.0 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
82.5  85.5  85.5

Power factor

50% 75% 100%
0.71  0.80  0.86
