CR 1-3 A-FGJ-A-E-HQQE, Pump Without Motor, 1/3Hp, 3425 RPM, 56C, 9.69 US gpm, 96082092

CR 1-3 A-FGJ-A-E-HQQE, Pump Without Motor, 1/3Hp, 3425 RPM, 56C, 9.69 US gpm, 96082092

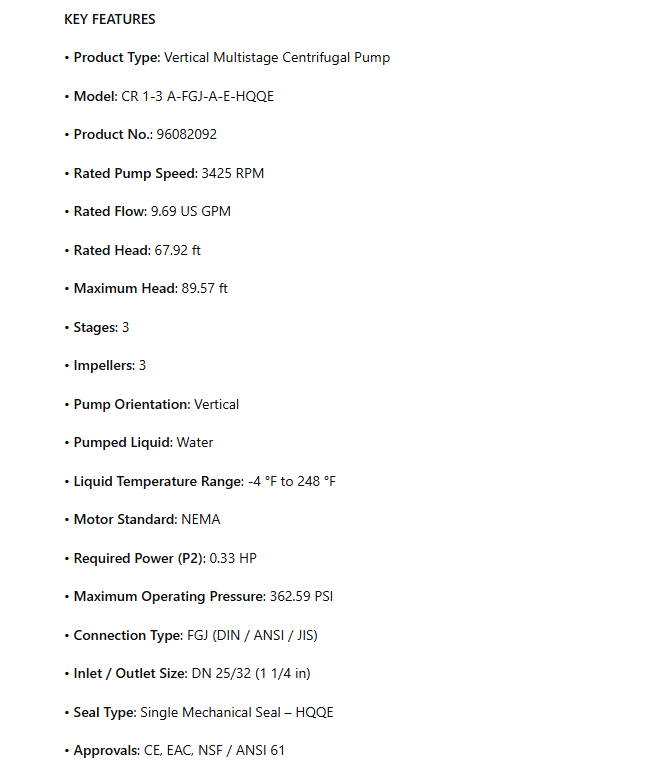

KEY FEATURES

• Product Type: Vertical Multistage Centrifugal Pump

• Model: CR 1-3 A-FGJ-A-E-HQQE

• Product No.: 96082092

• Rated Pump Speed: 3425 RPM

• Rated Flow: 9.69 US GPM

• Rated Head: 67.92 ft

• Maximum Head: 89.57 ft

• Stages: 3

• Impellers: 3

• Pump Orientation: Vertical

• Pumped Liquid: Water

• Liquid Temperature Range: -4 °F to 248 °F

• Motor Standard: NEMA

• Required Power (P2): 0.33 HP

• Maximum Operating Pressure: 362.59 PSI

• Connection Type: FGJ (DIN / ANSI / JIS)

• Inlet / Outlet Size: DN 25/32 (1 1/4 in)

• Seal Type: Single Mechanical Seal – HQQE

• Approvals: CE, EAC, NSF / ANSI 61
