E-Motor Nations  |  SKU: EMN-019085

CP010502NPW01, Rolled Steel NEMA Premium Efficiency 10Hp 3535 Rpm 2P 213/5TC 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

$1,188.82
shipping

Estimate shipping

Description

CP010502NPW01,  Rolled Steel NEMA Premium Efficiency 10Hp 3535 Rpm 2P 213/5TC 3Ph 575 V 60 Hz IC01 - ODP - Foot-mounted

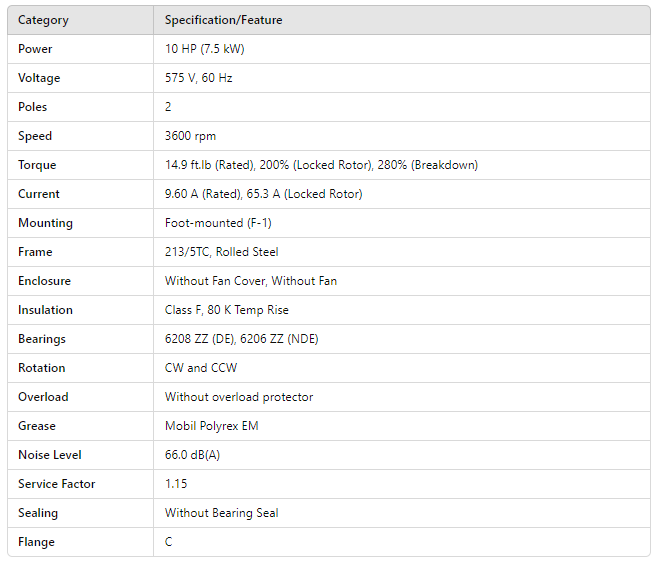

Category Specification/Feature
Power 10 HP (7.5 kW)
Voltage 575 V, 60 Hz
Poles 2
Speed 3600 rpm
Torque 14.9 ft.lb (Rated), 200% (Locked Rotor), 280% (Breakdown)
Current 9.60 A (Rated), 65.3 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 213/5TC, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6208 ZZ (DE), 6206 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 66.0 dB(A)
Service Factor 1.15
Sealing Without Bearing Seal
