E-Motor Nations  |  SKU: EMN-019082

CP007404NPW01, Rolled Steel NEMA Premium Efficiency 7.5Hp 1770 Rpm 4P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

$1,040.05
shipping

Estimate shipping

Description

CP007404NPW01,  Rolled Steel NEMA Premium Efficiency 7.5Hp 1770 Rpm 4P 213/5TC 3Ph 230/460//190-220/380-415 V 60 Hz IC01 - ODP - Foot-mounted

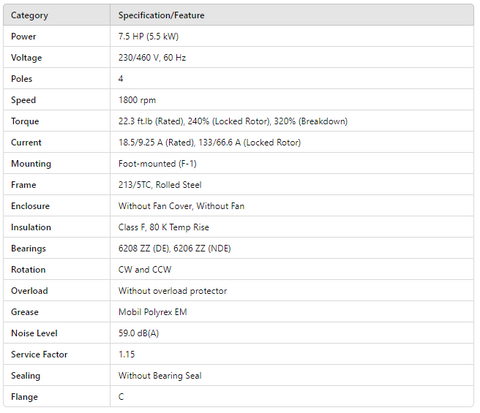

Category Specification/Feature
Power 7.5 HP (5.5 kW)
Voltage 230/460 V, 60 Hz
Poles 4
Speed 1800 rpm
Torque 22.3 ft.lb (Rated), 240% (Locked Rotor), 320% (Breakdown)
Current 18.5/9.25 A (Rated), 133/66.6 A (Locked Rotor)
Mounting Foot-mounted (F-1)
Frame 213/5TC, Rolled Steel
Enclosure Without Fan Cover, Without Fan
Insulation Class F, 80 K Temp Rise
Bearings 6208 ZZ (DE), 6206 ZZ (NDE)
Rotation CW and CCW
Overload Without overload protector
Grease Mobil Polyrex EM
Noise Level 59.0 dB(A)
Service Factor 1.15
Sealing Without Bearing Seal
Flange C
