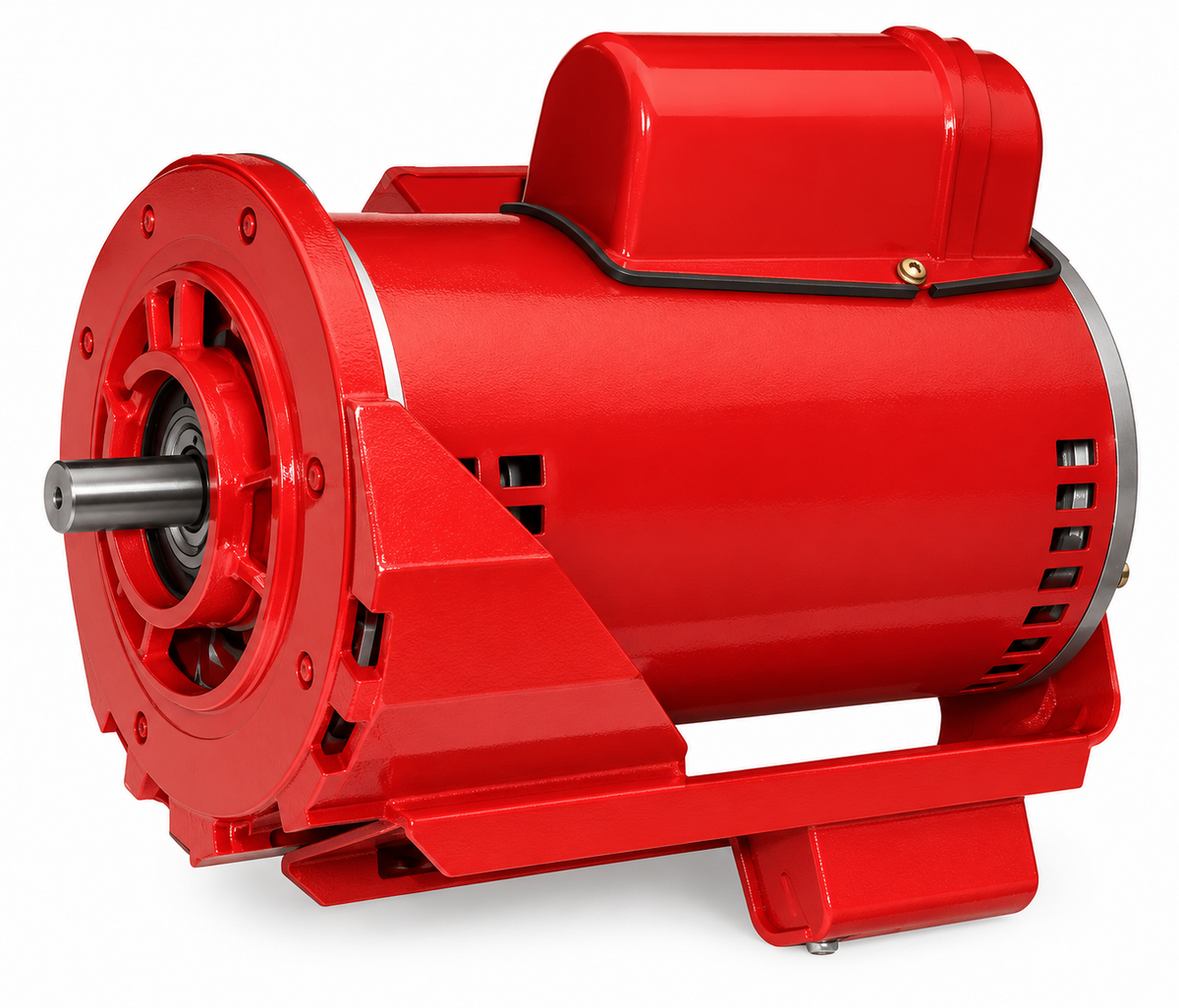

CP‑R1459, 1/2Hp, 1725 RPM, 115/208‑230 V, 1 Ph, ODP, Frame 56Z

This single‑phase circulator pump replacement motor is designed for hot water boiler and booster pump applications, offering reversible rotation and ball bearing construction in a compact frame.

KEY FEATURES

• Model: CP‑R1459

• Horsepower: 1/2 Hp

• Voltage: 115/208‑230 V

• Speed: 1725 RPM

• Enclosure: Open Drip Proof (ODP)

• Bearings: Ball

• Rotation: Reversible

• Phase: 1 Ph

• Frame: 56Z

• Current: 7.2 A (full load at 115 V) / 3.6 A (at 208‑230 V)

• Shaft Diameter: 5/8 in

• Shaft Length: 1‑1/4 in

• Bolt Circle: 5.86 in (5 7/8" O.C.)

• Weight: 29 lbs

This motor’s compact, reversible design and ball‑bearing construction make it well‑suited for replacement in circulator pump systems, offering reliable performance in demanding hydronic environments.

CROSS REFERENCE

07779800003215, 111044, 3258, 4UE16, 5GD86, 56A17D72, 56B17D11009, 56B17D135, 56B17D135B, 81157-001, 811757-001, 811757001, A26JV, C249, R1459, S-55, SS1459, T55CXTHJ1232, TO55THJ1232R14B
