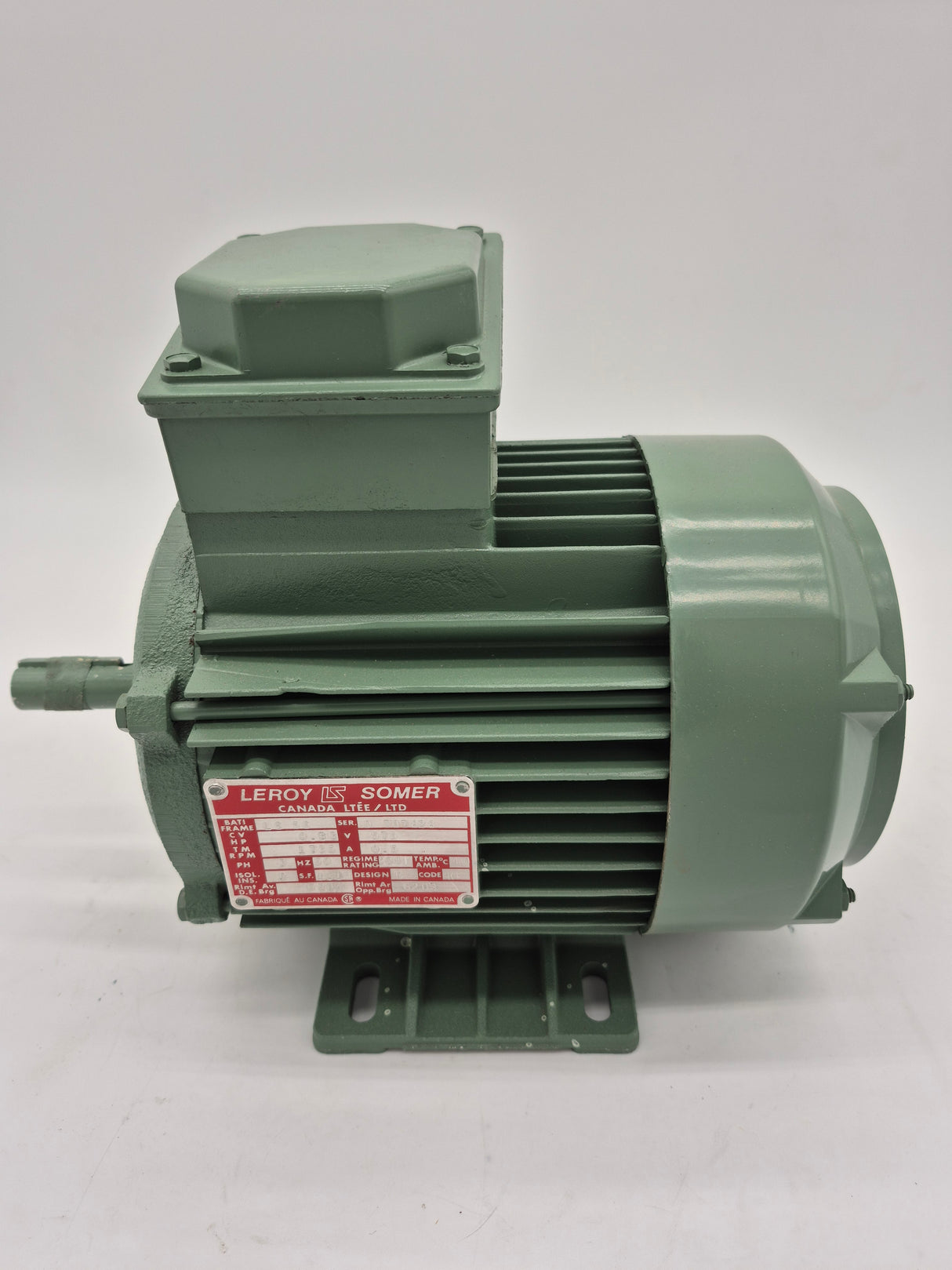

LS56, 1/3Hp, 1735 RPM, 575V, 3Ph, 60Hz, Frame 56, TEFC, D707828

LS56, 1/3Hp, 1735 RPM, 575V, 3Ph, 60Hz, Frame 56, TEFC, D707828

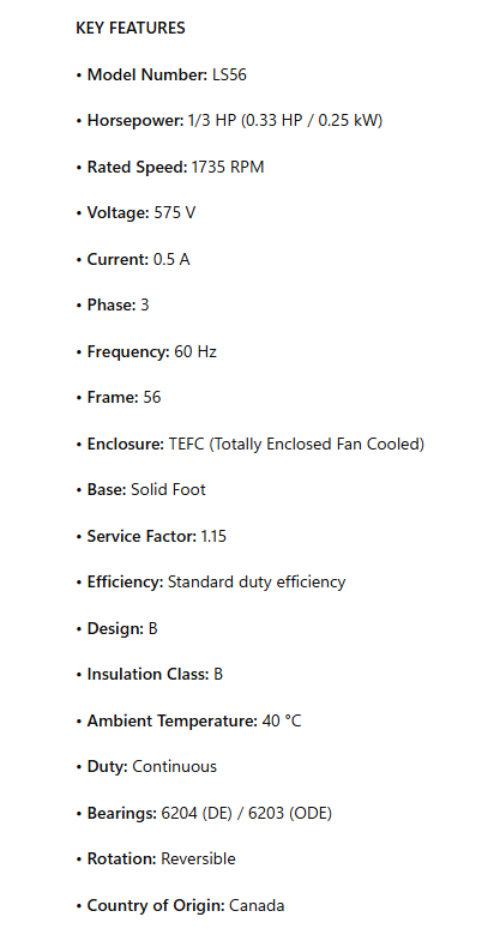

KEY FEATURES

• Model Number: LS56

• Horsepower: 1/3 HP (0.33 HP / 0.25 kW)

• Rated Speed: 1735 RPM

• Voltage: 575 V

• Current: 0.5 A

• Phase: 3

• Frequency: 60 Hz

• Frame: 56

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Base: Solid Foot

• Service Factor: 1.15

• Efficiency: Standard duty efficiency

• Design: B

• Insulation Class: B

• Ambient Temperature: 40 °C

• Duty: Continuous

• Bearings: 6204 (DE) / 6203 (ODE)

• Rotation: Reversible

• Country of Origin: Canada
