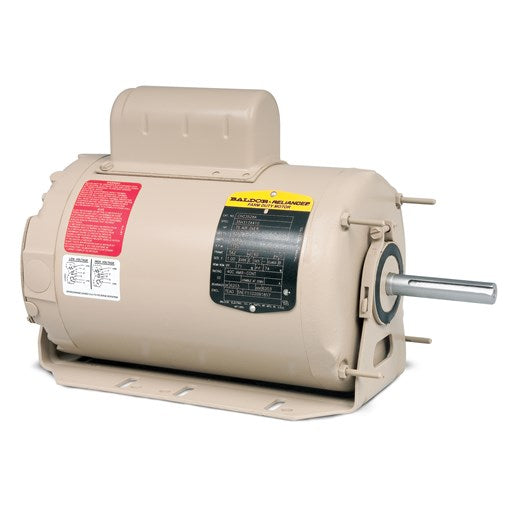

CHC3524A, Baldor, 1/2Hp, 1700 Rpm, 115-230 Volts, Frame: 56Z, Teao,

CHC352CHC3524A, Baldor, 1/2Hp, 1700 Rpm, 115-230 Volts, Frame: 56Z, Teao

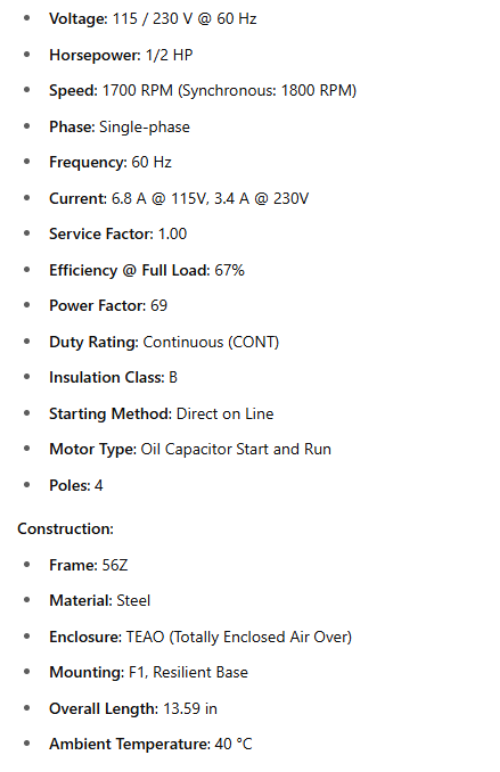

• Voltage: 115 / 230 V @ 60 Hz

• Horsepower: 1/2 HP

• Speed: 1700 RPM (Synchronous: 1800 RPM)

• Phase: Single-phase

• Frequency: 60 Hz

• Current: 6.8 A @ 115V, 3.4 A @ 230V

• Service Factor: 1.00

• Efficiency @ Full Load: 67%

• Power Factor: 69

• Duty Rating: Continuous (CONT)

• Insulation Class: B

• Starting Method: Direct on Line

• Motor Type: Oil Capacitor Start and Run

• Poles: 4

Construction:

• Frame: 56Z

• Material: Steel

• Enclosure: TEAO (Totally Enclosed Air Over)

• Mounting: F1, Resilient Base

• Overall Length: 13.59 in

• Ambient Temperature: 40 °C

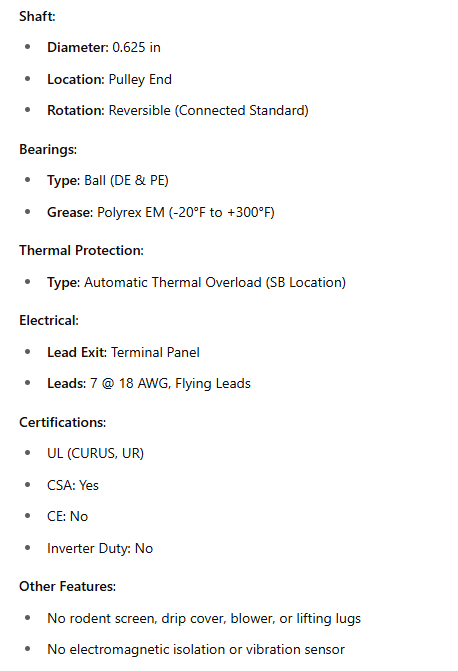

Shaft:

• Diameter: 0.625 in

• Location: Pulley End

• Rotation: Reversible (Connected Standard)

Bearings:

• Type: Ball (DE & PE)

• Grease: Polyrex EM (-20°F to +300°F)

Thermal Protection:

• Type: Automatic Thermal Overload (SB Location)

Electrical:

• Lead Exit: Terminal Panel

• Leads: 7 @ 18 AWG, Flying Leads

Certifications:

• UL (CURUS, UR)

• CSA: Yes

• CE: No

• Inverter Duty: No

Other Features:

• No rodent screen, drip cover, blower, or lifting lugs

• No electromagnetic isolation or vibration sensor
