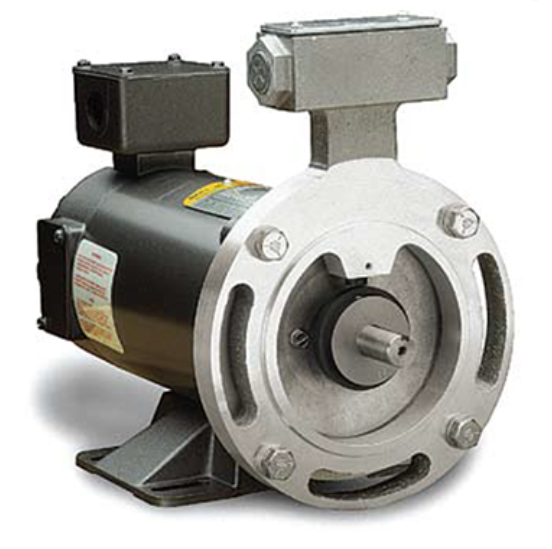

CF-H60, Cf Series Hall Effect Pickup Encoder Wheel Mounts To Nema 56c 5/8" Shaft

CF-H60, Cf Series Hall Effect Pickup Encoder Wheel Mounts To Nema 56c 5/8" Shaft

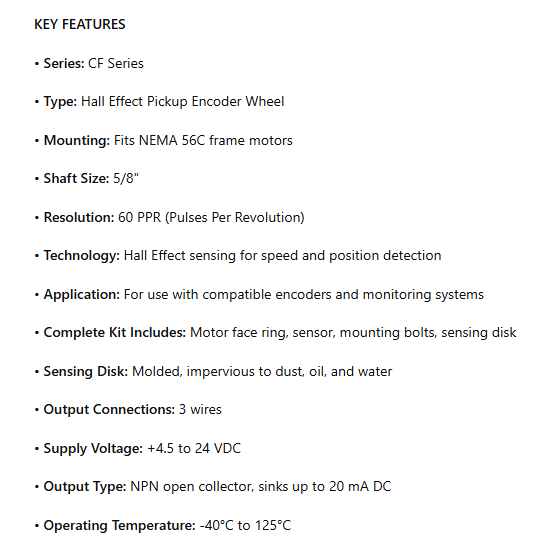

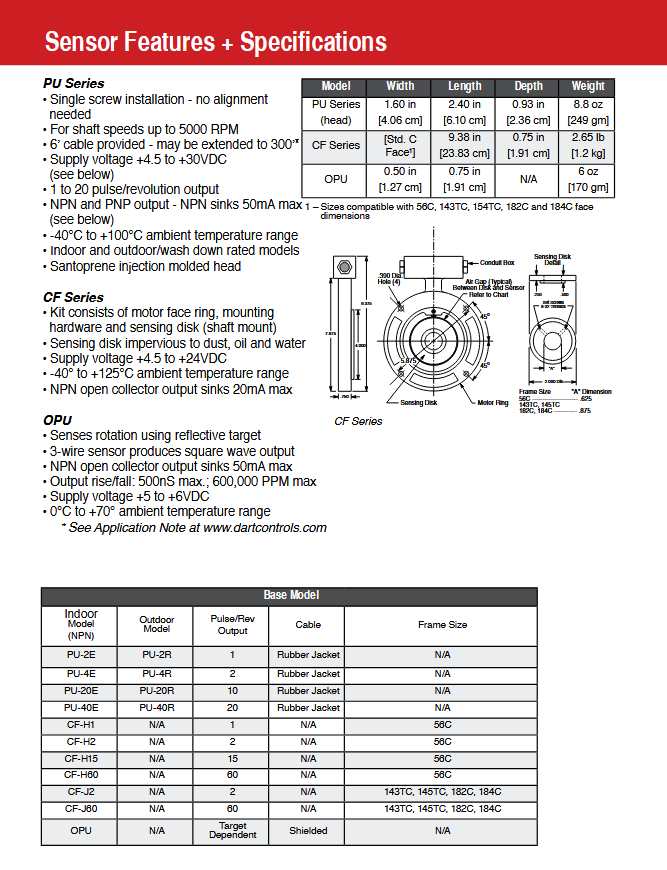

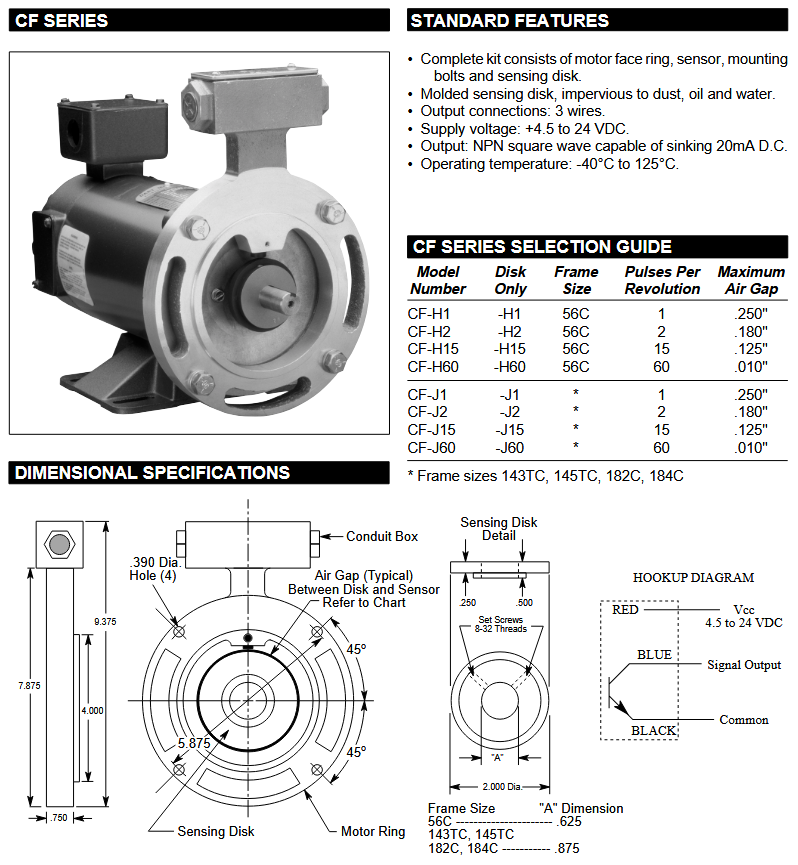

KEY FEATURES

• Series: CF Series

• Type: Hall Effect Pickup Encoder Wheel

• Mounting: Fits NEMA 56C frame motors

• Shaft Size: 5/8"

• Resolution: 60 PPR (Pulses Per Revolution)

• Technology: Hall Effect sensing for speed and position detection

• Application: For use with compatible encoders and monitoring systems

• Complete Kit Includes: Motor face ring, sensor, mounting bolts, sensing disk

• Sensing Disk: Molded, impervious to dust, oil, and water

• Output Connections: 3 wires

• Supply Voltage: +4.5 to 24 VDC

• Output Type: NPN open collector, sinks up to 20 mA DC

• Operating Temperature: -40°C to 125°C

For applications where location of an accessible shaft is difficult or more pulses/revolution are needed, Dart also offers a variety of sensors that rely on different sensing
technologies. These include the CF Series (hall-effect motor C-face mount and the OPU (optical). With this sensor lineup, customers are able to monitor actual motor speed, verify motor rotation and determine location of motor driven devices such as spray application
heads and material handling system carriers. Signals are fed to closed loop motor drives (MD/ASP Series from Dart), plc’s and SCADA systems.
