CENTURY, AO SMITH, 731A, 1/4 HP, 1075RPM, 115/208-230V, TENV, FR:48, 731 - HVAC ELECTRIC MOTOR - A.O SMITH - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur

CENTURY,731A,1/4Hp,1075RPM,115/208-230V,Tenv,FR:48,731,

A.O SMITH

$388.51

CENTURY, AO SMITH, 731A,731,

REPLACE D734, 3208, EM3-208, 731, F48Y60A01, UH1026, US1026, US1026NB, 152663, C747, MOT 6196, HF3H048, HF3H088, HF3H7048,HF3HO48N

Horsepower :1/4
Voltage :115/208-230
Amps :3.8/1.9
RPM :1140
Frequency :60 Hz
Length :6-1/4"
"C" Dim. :11-11/32"
Enclosure :Totally Enclosed
Shaft Dim. :1/2” x 4-1/2”
Type :Permanent Split Capacitor
Speeds :1
Diameter :5-5/8"
Frame :48Y
Bearings :Ball
Rotation :Reversible
Protector :Automatic
Service Factor :1.00
Phase :1
Ambient Temp. :60°C
Capacitor Rating :4MFD-370VAC
Feature(s) :Class 'B' Insulation, Resilient Base, Capacitor Mounted, Includes split bushing and key 5/8" shafts
Weight (lbs.) :17

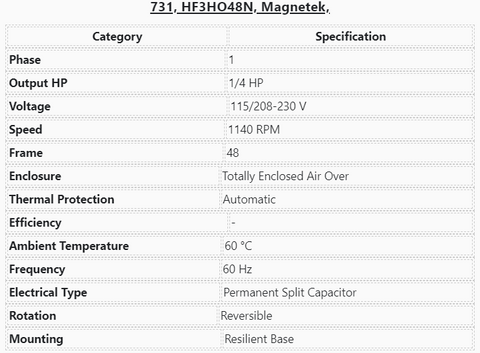

731, HF3HO48N, Magnetek,

Category	Specification

Phase

Output HP

1/4 HP

Voltage

115/208-230 V

Speed

1140 RPM

Frame

Enclosure

Totally Enclosed Air Over

Thermal Protection

Automatic

Efficiency

Ambient Temperature

60 °C

Frequency

60 Hz

Electrical Type

Permanent Split Capacitor

Rotation

Reversible

Mounting

Resilient Base
