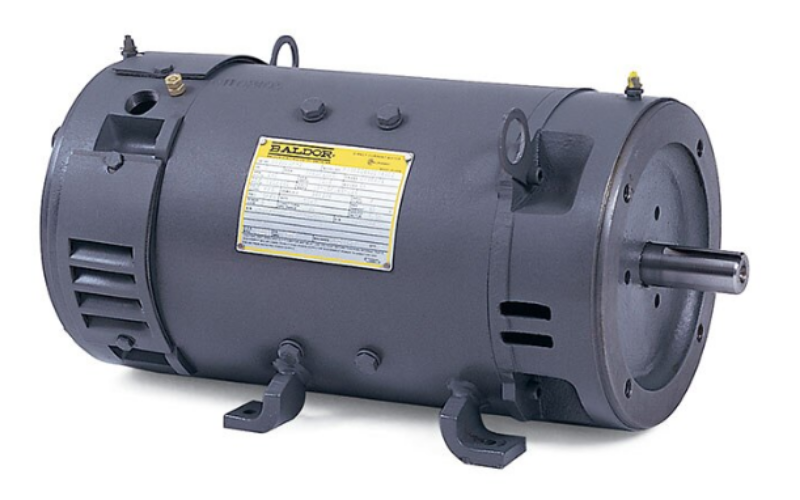

CD2003P-2, DC Motor , 3Hp, 1750 RPM, 240V, DPFG, Frame L186ATC, ODP

CD2003P-2, DC Motor , 3Hp, 1750 RPM, 240V, DPFG, Frame L186ATC, ODP

 *** Built UP on Order by the Baldor factory ***

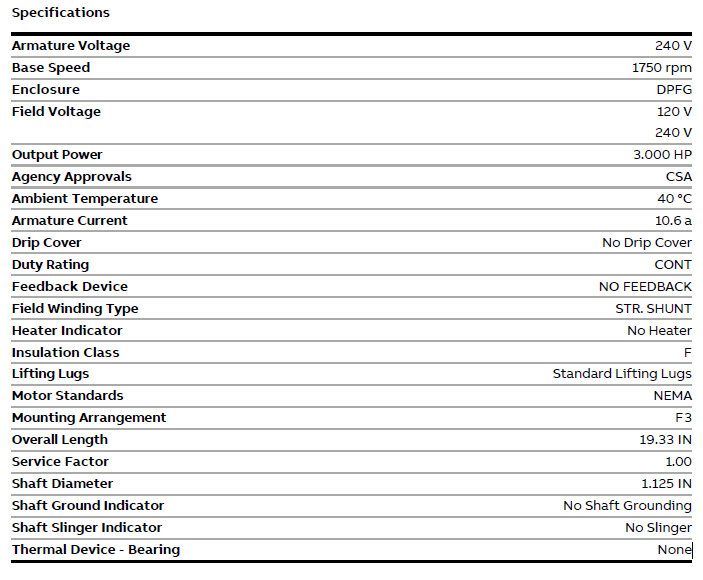

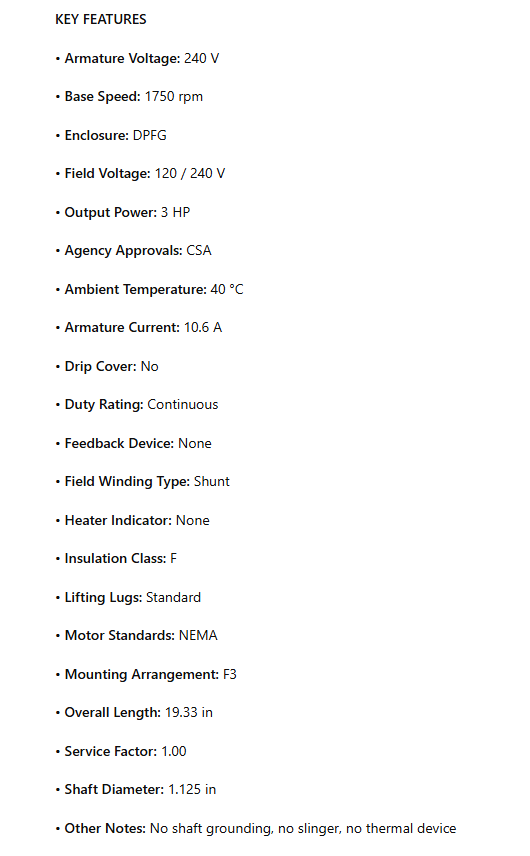

KEY FEATURES

• Armature Voltage: 240 V

• Base Speed: 1750 rpm

• Enclosure: DPFG

• Field Voltage: 120 / 240 V

• Output Power: 3 HP

• Agency Approvals: CSA

• Ambient Temperature: 40 °C

• Armature Current: 10.6 A

• Drip Cover: No

• Duty Rating: Continuous

• Feedback Device: None

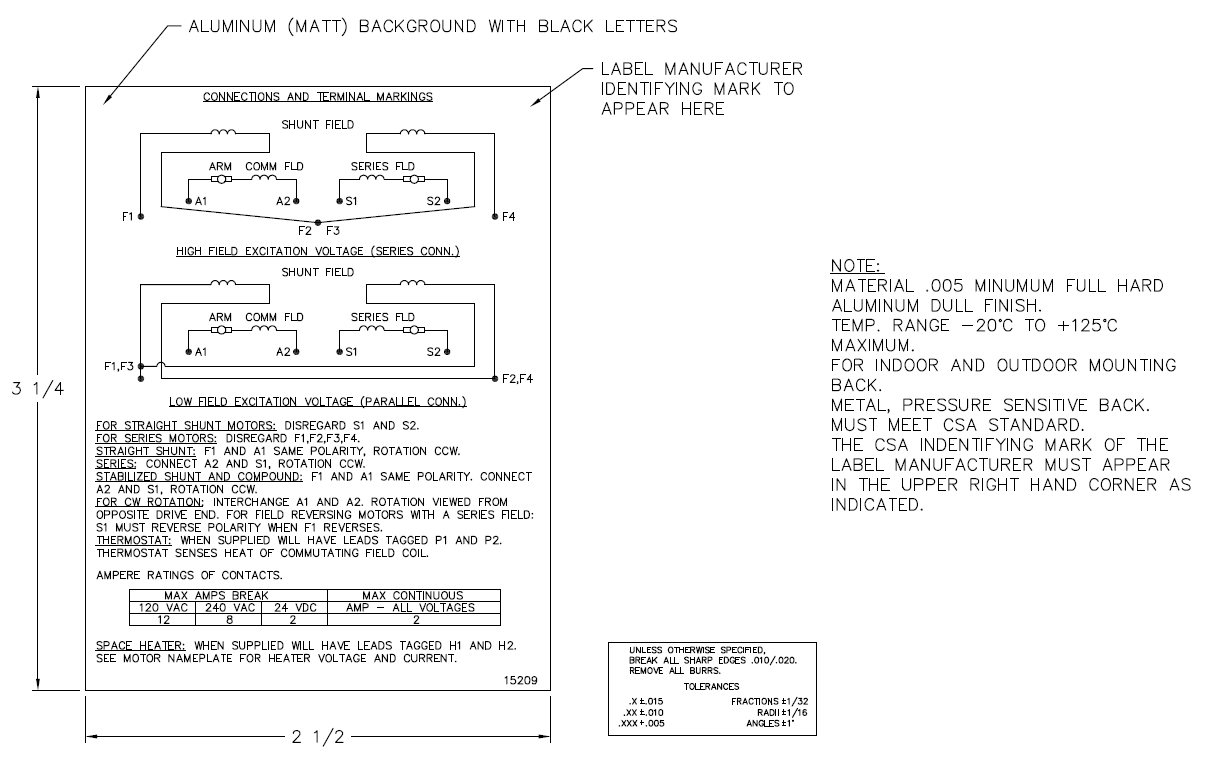

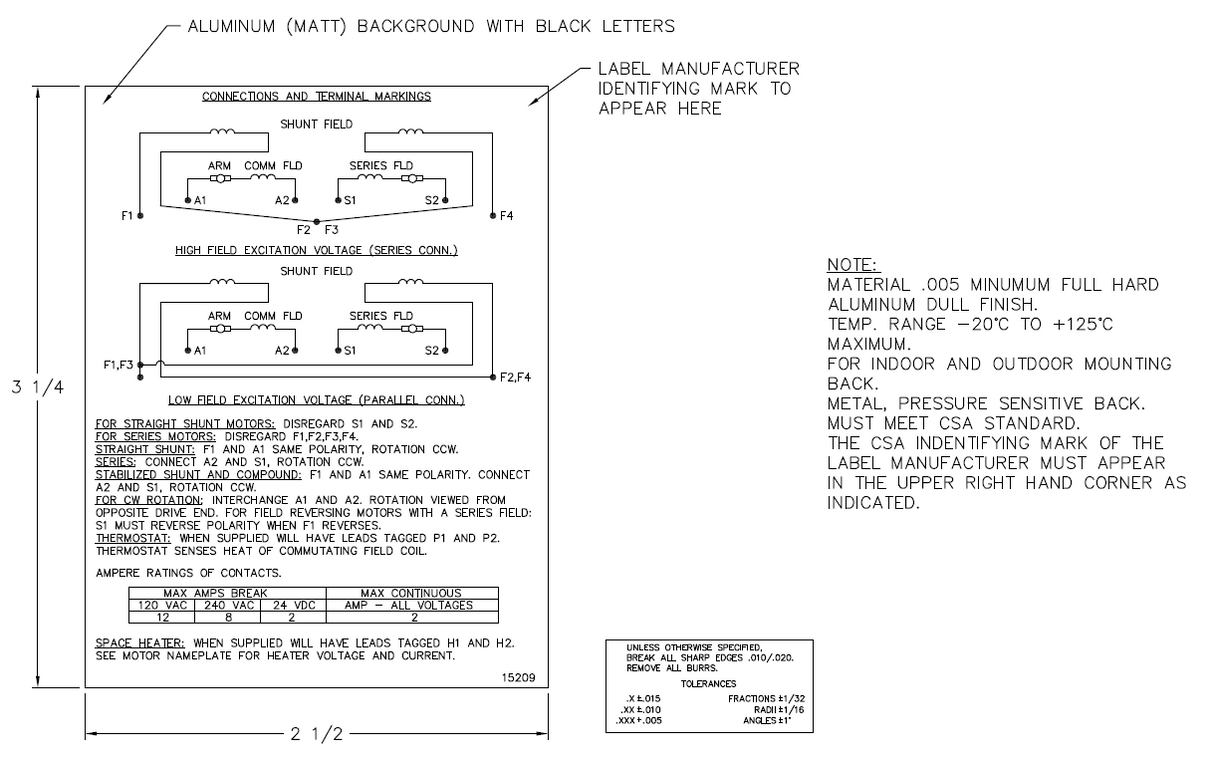

• Field Winding Type: Shunt

• Heater Indicator: None

• Insulation Class: F

• Lifting Lugs: Standard

• Motor Standards: NEMA

• Mounting Arrangement: F3

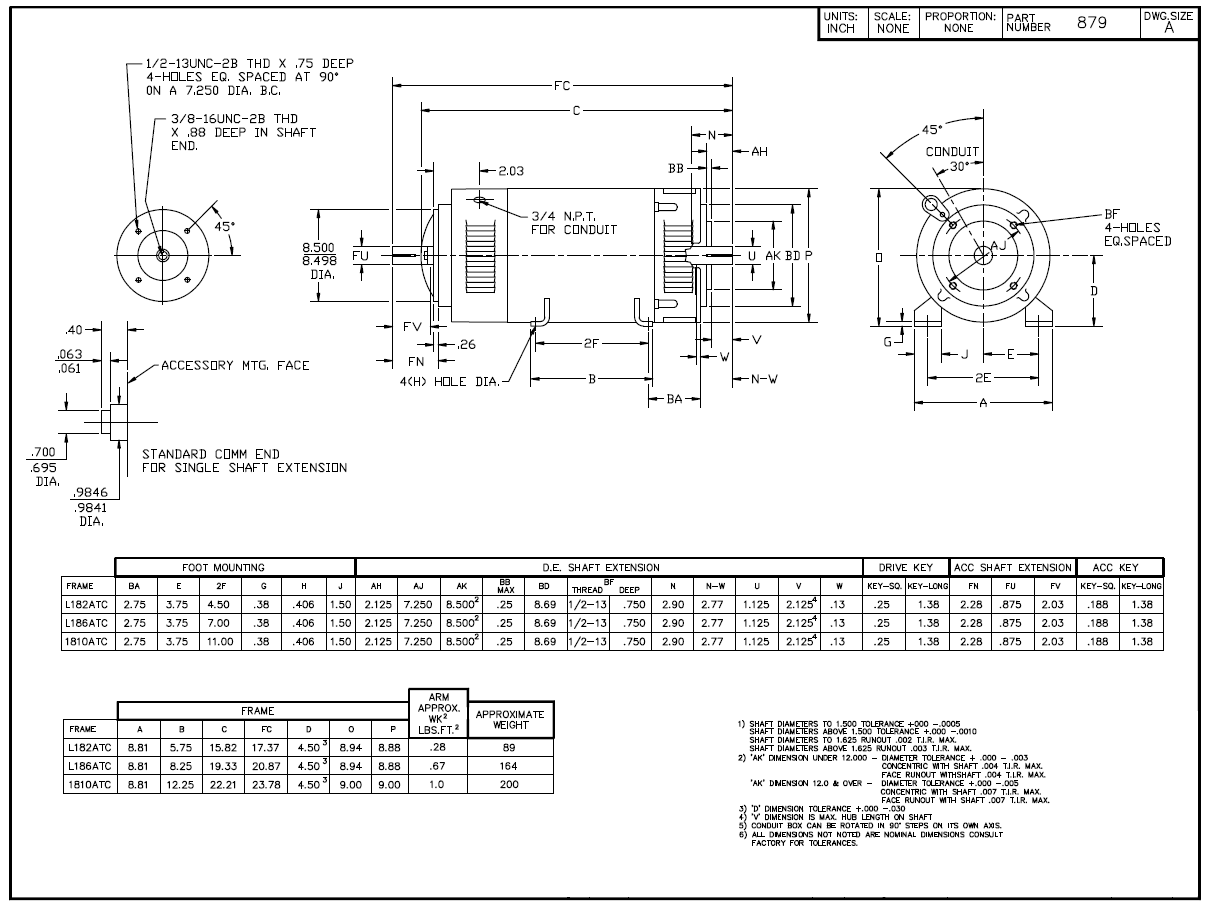

• Overall Length: 19.33 in

• Service Factor: 1.00

• Shaft Diameter: 1.125 in

• Other Notes: No shaft grounding, no slinger, no thermal device
