MARATHON | SKU:
EMN-015935

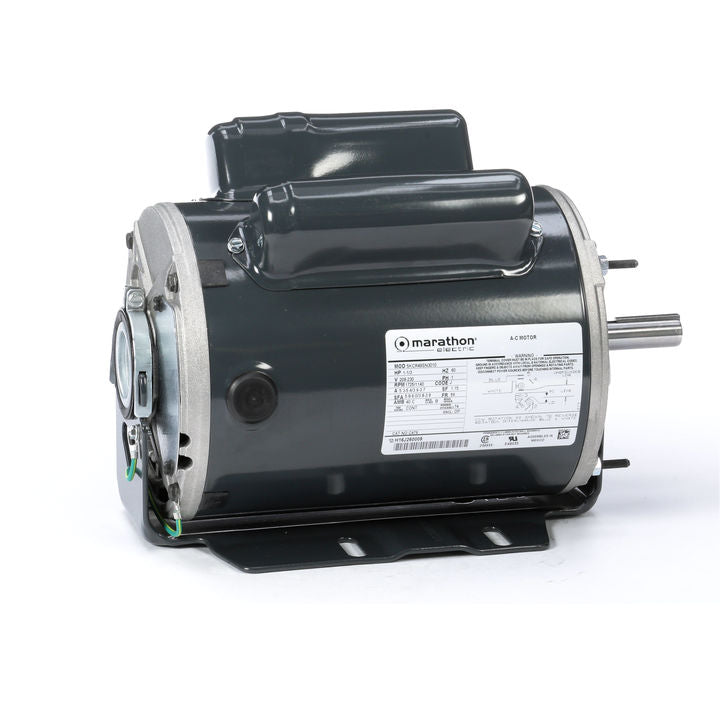

C476A, MARATHON,1HP-1/3HP,208-230V,1725/1140 RPM,FR:56,056B64DRS40001A1
Regular price
$1,235.65
Unit price
/
Unavailable
C476A, MARATHON,1HP-1/3HP,208-230V,1725/1140 RPM,FR:56,056B64DRS40001A1 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
shipping
Estimate shipping
Please correct the following errors:
![C476A, MARATHON,1HP-1/3HP,208-230V,1725/1140 RPM,FR:56,056B64DRS40001A1 - HVAC ELECTRIC MOTOR - MARATHON - electric motors - [product_tags]- motor electric - moteur électrique - moteurs - drive - replacement - venmar - hvac - méchoui - capacitor - condensateur](http://www.emotornations.com/cdn/shop/products/C476A_MARATHON.jpg?v=1756479959&width=112)
C476A, MARATHON,1HP-1/3HP,208-230V,1725/1140 RPM,FR:56,056B64DRS400...
Regular price
$1,235.65
Unit price
/
Unavailable
Description
Description
C476A, MARATHON, 056B64DRS40001A1,
General Specifications
| Model : | 056B64DRS40001A1 | Catalog No : | C476A |
| Part Description : | 1-1/3,1725/1425,DP,56,1/60/208-230 | Category : | Fan and Blower |
| Stock : | No |
Nameplate Specifications
| Output HP : | 1,0.33 Hp | Output KW : | 0.75 kW |
| Frequency : | 60 Hz | Voltage : | 208-230 V |
| Current : | 5.0-4.7,3.7-3.9 A | Speed : | 1725,1140 rpm |
| Service Factor : | 1.15 | Phase : | 1 |
| Efficiency : | 75.5 % | Duty : | Continuous |
| Insulation Class : | B | Design Code : | 2VT |
| KVA Code : | K | Frame : | 56 |
| Enclosure : | Drip Proof | Overload Protector : | No |
| Ambient Temperature : | 40 °C | Drive End Bearing Size : | 6203 |
| Opp Drive End Bearing Size : | 6203 | UL : | Recognized |
| CSA : | Y | CE : | Y |
| IP Code : | 22 |
Technical Specifications
| Electrical Type : | Capacitor Start Capacitor Run | Starting Method : | Across The Line |
| Poles : | 4//6 | Rotation : | Selective Counterclockwise |
| Mounting : | Resilient Base | Motor Orientation : | HORIZONTAL |
| Drive End Bearing : | BALL | Opp Drive End Bearing : | BALL |
| Frame Material : | Rolled Steel | Shaft Type : | NEMA 56 |
| Overall Length : | 12.54 in | Frame Length : | 8.15 in |
| Shaft Diameter : | 0.625 in | Shaft Extension : | 2.03 in |
| Assembly/Box Mounting : | F1 ONLY | UPC : | 722856068675 |
| Weight : | 34.00 LB |
